PELSUE DSP-ADJ DAVIT PORTABLE WALL MOUNTED PLATE/SLEEVE, ADJUSTABLE, PLATED STEEL, 24 inch
Available*
Item # 35201115
Model # DSR-ADJ
$7,122.60
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
DAVIT BASE
Safety Equipment
Personnel Retrieval
Tripods- Splice Supports
Pelsue
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

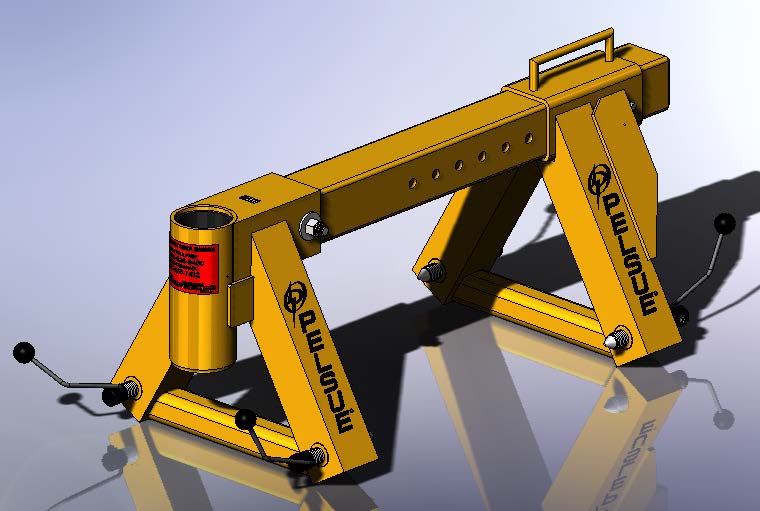

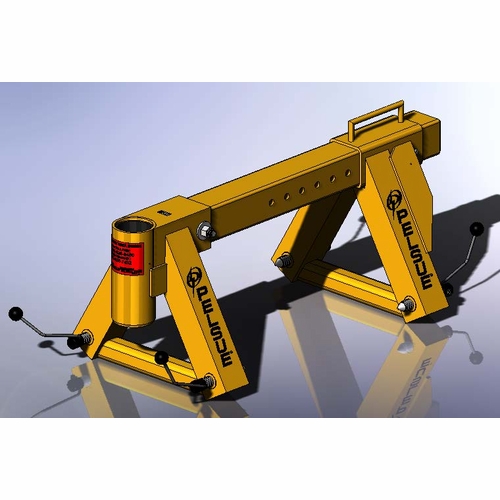

PELSUE DSP-ADJ DAVIT PORTABLE WALL MOUNTED PLATE/SLEEVE, ADJUSTABLE, PLATED STEEL, 24" NEW
The #DSR-ADJ Adjustable Wall Sleeve is built from structural aluminum, and has several steel and/or engineered plastic components. It is specifically designed for confined space entry and/or rescue & retrieval applications. It is intended to provide a receiver sleeve for a Pelsue #PNUH Series aluminum davit system. By straddling a top-accesible wall and clamping in place via the integral clamping screw jacks, provides a secure and compliant receiver for a Pelsue Davit System. All specifications, instructions, and procedures provided within this manual or upon Pelsue Specification Documents are based upon and only valid for usage with a Pelsue #PNUH Series aluminum davit system. The T.A. Pelsue Company can not verify equipment safety and/or compliance when utilized with anything other than a Pelsue #PNUH series davit system.
FEATURES: -Can clamp upon a wide variety of wall thicknesses (minimum & maximum provided above) -Provides an anti-friction-lined receiver compatible with any Pelsue Davit System -Constructed primarily of lightweight & corrosion-resistant powdercoated aluminum -Independently adjustable clamping jacks will allow for inconsistencies in wall thickness -Structure easily disassembles for storage or transport
MATERIALS & CONSTRUCTION: -Main Structure: - 6061 Series Aluminum (Powdercoated) -Clamping Jack Screws: - SAE Grade 8 Steel Threaded Rod -Anti-Friction Liners: - ABS or CPVC -Hardware - Plated Steel
GENERAL SPECIFICATIONS: -Minimum Allowable Wall Thickness - 1" (25.4 mm) -Maximum Allowable Wall Thickness - 23-1/4" (590.6 mm) -Structure Weight - 49 LBS. (22.2 KG) -Load Capacity (@ Davit End) - 350 LBS. (159 KG) -Factor of Safety (when used with davit) - 4 to 1
The #DSR-ADJ Adjustable Wall Sleeve is built from structural aluminum, and has several steel and/or engineered plastic components. It is specifically designed for confined space entry and/or rescue & retrieval applications. It is intended to provide a receiver sleeve for a Pelsue #PNUH Series aluminum davit system. By straddling a top-accesible wall and clamping in place via the integral clamping screw jacks, provides a secure and compliant receiver for a Pelsue Davit System. All specifications, instructions, and procedures provided within this manual or upon Pelsue Specification Documents are based upon and only valid for usage with a Pelsue #PNUH Series aluminum davit system. The T.A. Pelsue Company can not verify equipment safety and/or compliance when utilized with anything other than a Pelsue #PNUH series davit system.
FEATURES: -Can clamp upon a wide variety of wall thicknesses (minimum & maximum provided above) -Provides an anti-friction-lined receiver compatible with any Pelsue Davit System -Constructed primarily of lightweight & corrosion-resistant powdercoated aluminum -Independently adjustable clamping jacks will allow for inconsistencies in wall thickness -Structure easily disassembles for storage or transport
MATERIALS & CONSTRUCTION: -Main Structure: - 6061 Series Aluminum (Powdercoated) -Clamping Jack Screws: - SAE Grade 8 Steel Threaded Rod -Anti-Friction Liners: - ABS or CPVC -Hardware - Plated Steel
GENERAL SPECIFICATIONS: -Minimum Allowable Wall Thickness - 1" (25.4 mm) -Maximum Allowable Wall Thickness - 23-1/4" (590.6 mm) -Structure Weight - 49 LBS. (22.2 KG) -Load Capacity (@ Davit End) - 350 LBS. (159 KG) -Factor of Safety (when used with davit) - 4 to 1
