PELSUE PH15R MAN RATED WINCH W/ 150‘ x 1/4 inches SYNTHETIC CORD & PELSUE DAVIT BRACKET
Available*
Item # 35202535
Model # PH15R
$3,664.24
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
WINCHES
Safety Equipment
Personnel Retrieval
Winches- Personnel retrieval
Pelsue
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

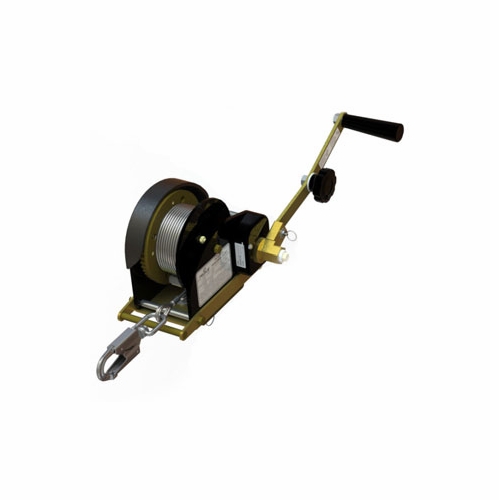

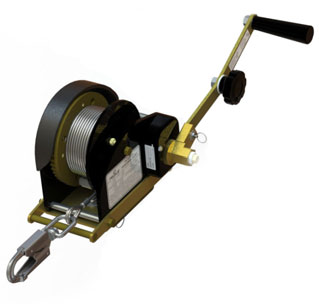

PELSUE PH15R MAN RATED WINCH W/ 150‘ x 1/4” SYNTHETIC CORD & PELSUE DAVIT BRACKET NEW The Pelsue winch is designed to attach to a person that is entering or exiting from a confined space. It is built with an internal braking system to prevent the accidental pay out of line, as well as a back-up locking pawl system to prevent “free-wheeling” of the winch. Cable extension (pay out) should occur ONLY when the handle is turned counter-clockwise AND a force of AT LEAST 10 lbs. (4.5 kg.) is applied to the line. The winch frame back plate attaches to a mounting plate which can then be mated to the various Pelsue structures and components.
Features: Man rated to 350 lbs. 10:1 safety factor 5.5:1 gear ratio single speed drive Retrieval rate of 23’ per minute Continuous braking drive prevents free wheeling Double pawls on friction brake provide back up safety Low wear, high temperature brake pads eliminate brake maintenance for life of the winch Anti-friction drive bearings assure trouble free life in continuous use Three permanent wraps of cable on the drum to assure low cable attachment loads Level wind springs prevent loosening of cable lays Slip clutch drive prevents back winding of cable drum Galvanic zinc coating of all metal parts reduces corrosion in harsh environments Double action locking swivel snap hook is provided that can be used with remote connect/disconnect equipment Mounting means provided for quick attachment Available with stainless steel cable or synthetic rope
Specifications:
Model # Description Weight TW07C 70' S/S Cable 30 lbs
TW10C 100 S/S Cable 38 lbs
PW15C 150 S/S Cable 40 lbs
PW30C 300 S/S Cable 48 lbs
PW07R 70’ Synth. Rope 25 lbs
PW10R 100’ Synth. Rope 30 lbs
PW15R 150’ Synth. Rope 32 lbs
PW20C 350# man-rated, with 200' of s/s rope 40 lbs
PW30C 350# man-rated, with 300' of s/s rope 48 lbs
Features: Man rated to 350 lbs. 10:1 safety factor 5.5:1 gear ratio single speed drive Retrieval rate of 23’ per minute Continuous braking drive prevents free wheeling Double pawls on friction brake provide back up safety Low wear, high temperature brake pads eliminate brake maintenance for life of the winch Anti-friction drive bearings assure trouble free life in continuous use Three permanent wraps of cable on the drum to assure low cable attachment loads Level wind springs prevent loosening of cable lays Slip clutch drive prevents back winding of cable drum Galvanic zinc coating of all metal parts reduces corrosion in harsh environments Double action locking swivel snap hook is provided that can be used with remote connect/disconnect equipment Mounting means provided for quick attachment Available with stainless steel cable or synthetic rope
Specifications:
Model # Description Weight TW07C 70' S/S Cable 30 lbs
TW10C 100 S/S Cable 38 lbs
PW15C 150 S/S Cable 40 lbs
PW30C 300 S/S Cable 48 lbs
PW07R 70’ Synth. Rope 25 lbs
PW10R 100’ Synth. Rope 30 lbs
PW15R 150’ Synth. Rope 32 lbs
PW20C 350# man-rated, with 200' of s/s rope 40 lbs
PW30C 350# man-rated, with 300' of s/s rope 48 lbs
