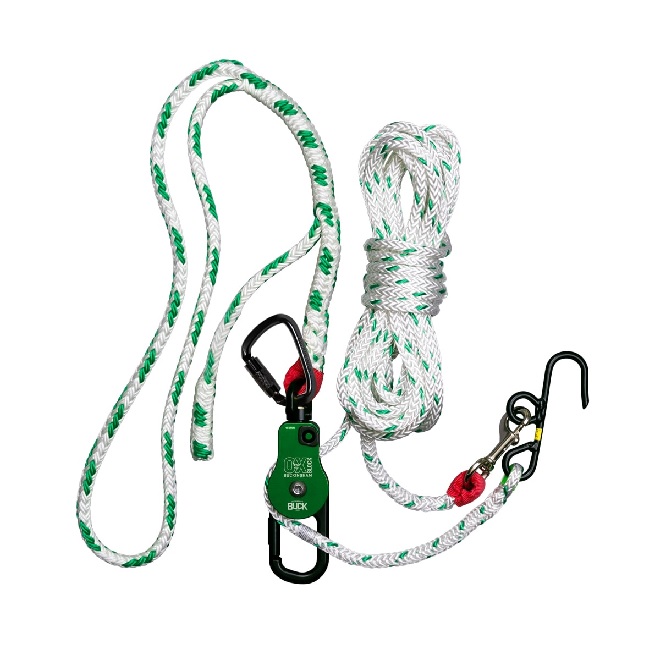

BUCKINGHAM 50061A-4/100 OX BLOCK W/ SLING HANDLINE
Available*
Item # 35216010
Model # 50061A-4/100
$1,567.26
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
BLOCKS
Safety Equipment
Personnel Retrieval
Blocks-Placing-Prelashing- Overlashing
Buckingham Manufacturing
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
BUCKINGHAM 50061A-4/100 OX BLOCK W/ SLING HANDLINE
BUCKINGHAM 50061A-4/100 OX BLOCK W/ SLING HANDLINE
OX BLOCK® with 4' sling, steel carabiner & 100' handline assembly. The OX BLOCK® handline assembly, as a whole, can be used for hurtman rescue. However, DO NOT USE P/N 2406 handline hook [MBS 500lbs] or handline snap [MBS 750 lbs] for human support. All components used for rescue must have a 5000-lb. rating, configured to accept human support. For rigging, ensure the weak link has a 4 to 1 safety factor.
Features:
4' x 5/8" adjustable sling patented OX BLOCK®. Steel rigging carabiner 100' x 1/2" handline assembly The handline hook is rated to 500 lbs WLL The handline snap is rated to 750 lbs MBS
Product Number: 50061A-4/80 Product Name: OX BLOCK™ HANDLINE ASSEMBLY Material: Polyester Rope, Aluminum OX Block (50061), Steel Rigging Carabiner (5005S5), Steel Hook (2406) Length: 100' handline (Rope), 8.27" inch OX Block (50061), 4.68" in. Carabiner (5005S5) Width: 5/8" in. Rope, 1.99" inch OX Block (50061), 3.07" inch carabiner (5005S5) Weight Rating: 5000 lbs Weight: 9.5 lbs Breaking Strength: Steel rigging carabiner (5005S5)- MBS 11,240lbs (50KN), OX Block (50061)- MBS (Sheave to eye)- 10,000lbf/MBS (Hook to eye)- 6,000lbf. WLL-50061A-4 (Sling Only)- Straight- 3,200 lbs, Choker- 2,560 lbs, Basket- 6,400lbs. SWL- 2406 (Hook) 500lbs. Links To Relevant Hardware: 50061 Ox Block 5005S5 Carabiner 2406 Handline Hook Made In USA: Yes
BUCKINGHAM 50061A-4/100 OX BLOCK W/ SLING HANDLINE
OX BLOCK® with 4' sling, steel carabiner & 100' handline assembly. The OX BLOCK® handline assembly, as a whole, can be used for hurtman rescue. However, DO NOT USE P/N 2406 handline hook [MBS 500lbs] or handline snap [MBS 750 lbs] for human support. All components used for rescue must have a 5000-lb. rating, configured to accept human support. For rigging, ensure the weak link has a 4 to 1 safety factor.
Features:
4' x 5/8" adjustable sling patented OX BLOCK®. Steel rigging carabiner 100' x 1/2" handline assembly The handline hook is rated to 500 lbs WLL The handline snap is rated to 750 lbs MBS
Product Number: 50061A-4/80 Product Name: OX BLOCK™ HANDLINE ASSEMBLY Material: Polyester Rope, Aluminum OX Block (50061), Steel Rigging Carabiner (5005S5), Steel Hook (2406) Length: 100' handline (Rope), 8.27" inch OX Block (50061), 4.68" in. Carabiner (5005S5) Width: 5/8" in. Rope, 1.99" inch OX Block (50061), 3.07" inch carabiner (5005S5) Weight Rating: 5000 lbs Weight: 9.5 lbs Breaking Strength: Steel rigging carabiner (5005S5)- MBS 11,240lbs (50KN), OX Block (50061)- MBS (Sheave to eye)- 10,000lbf/MBS (Hook to eye)- 6,000lbf. WLL-50061A-4 (Sling Only)- Straight- 3,200 lbs, Choker- 2,560 lbs, Basket- 6,400lbs. SWL- 2406 (Hook) 500lbs. Links To Relevant Hardware: 50061 Ox Block 5005S5 Carabiner 2406 Handline Hook Made In USA: Yes
