JONARD JIC-4377 Fiber Jacket Slit And Ring Tool 811490019676
Available*
Item # 37302020
Model # JIC-4377
$81.95
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
STRIPPER
Fiber Optic Products
Hand Tools
Wire Strippers- Cable Sheath- Web Slitters
Jonard Industries Corp
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

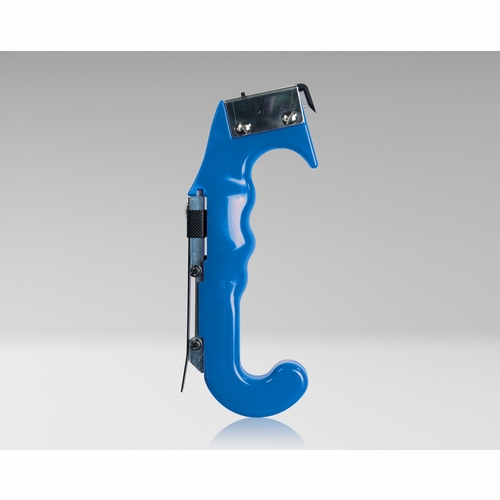

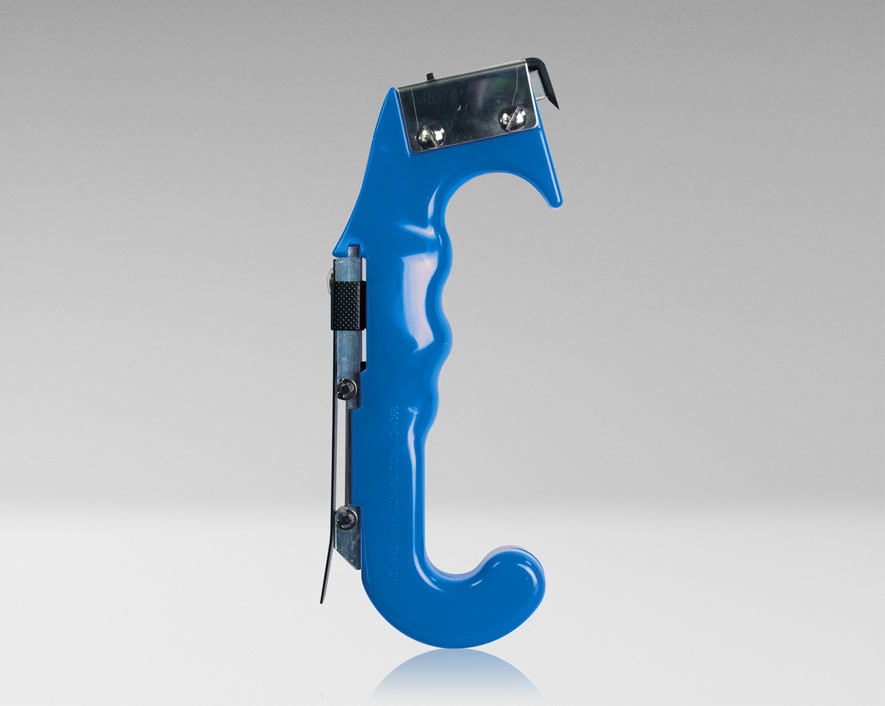

JONARD JIC-4377 FIBER JACKET SLIT AND RING TOOL
Designed to slit and ring many types of buffer tubes, breakout cables, and other types of jacketed cables, this fiber jacket slit, and ring tool is perfect for slitting OFS Minicord EZ-Bend and other similar cables.
L-shaped hardened steel guide and blade guard are specially designed to allow the tool to slit open jackets while protecting the buffer tubes and fiber inside the cable The slitter blade is located at the top of the tool, has 1/4" of the blade exposed, and is held in place by the 1/2" L-shaped steel guide The shorter L-shaped steel guide allows for easier slitting of cables such as the OFS Minicord EZ-Bend and other similar cables (shorter guide than the JIC-4366) The Ringer portion of the tool is located on the back of the handle and uses a spring steel cable holder to hold the cable in place. This holder also has a sliding metal tensioner to increase the force on the cable and help ensure the jacket is cut all the way through Ringer can be used on 3/16" to 1/2" (4.7 mm-12.7 mm) diameter cables and cuts through plastic, rubber, or fabric insulation sheathing with 0.031" (0.79 mm) or 0.018" (0.46 mm) thickness Includes one spare ringing and one spare slitting blade
RB-2060/6 - pack of 6 replacement blades for the radial/ring cut
RB-2878/6 - pack of 6 replacement blades for the longitudinal/strip cut
Specifications Cut Type Ring, Slit
Cable Type Jacket, Loose, & OFS Minicord EZ bend
Cable Diameter 1/8"-3/8" (3.2 mm-9.6 mm)
Max Blade Depth 1/8"-3/8" (3.2 mm-9.6 mm)
Length 5 1/2" (139.7 mm)
Weight 0.32 lb (145.15 g)
UPC # 811490019676
Designed to slit and ring many types of buffer tubes, breakout cables, and other types of jacketed cables, this fiber jacket slit, and ring tool is perfect for slitting OFS Minicord EZ-Bend and other similar cables.
L-shaped hardened steel guide and blade guard are specially designed to allow the tool to slit open jackets while protecting the buffer tubes and fiber inside the cable The slitter blade is located at the top of the tool, has 1/4" of the blade exposed, and is held in place by the 1/2" L-shaped steel guide The shorter L-shaped steel guide allows for easier slitting of cables such as the OFS Minicord EZ-Bend and other similar cables (shorter guide than the JIC-4366) The Ringer portion of the tool is located on the back of the handle and uses a spring steel cable holder to hold the cable in place. This holder also has a sliding metal tensioner to increase the force on the cable and help ensure the jacket is cut all the way through Ringer can be used on 3/16" to 1/2" (4.7 mm-12.7 mm) diameter cables and cuts through plastic, rubber, or fabric insulation sheathing with 0.031" (0.79 mm) or 0.018" (0.46 mm) thickness Includes one spare ringing and one spare slitting blade
RB-2060/6 - pack of 6 replacement blades for the radial/ring cut
RB-2878/6 - pack of 6 replacement blades for the longitudinal/strip cut
Specifications Cut Type Ring, Slit
Cable Type Jacket, Loose, & OFS Minicord EZ bend
Cable Diameter 1/8"-3/8" (3.2 mm-9.6 mm)
Max Blade Depth 1/8"-3/8" (3.2 mm-9.6 mm)
Length 5 1/2" (139.7 mm)
Weight 0.32 lb (145.15 g)
UPC # 811490019676
