Buckingham 50063K18-4/80 OX BLOCK® WITH BUCK PIN HANDLINE ASSEMBLY WITH OX HOOK™ AND OX HORN™ - 5006
Buckingham 50063K18-4/80 OX BLOCK® WITH BUCK PIN HANDLINE ASSEMBLY WITH OX HOOK™ AND OX HORN™

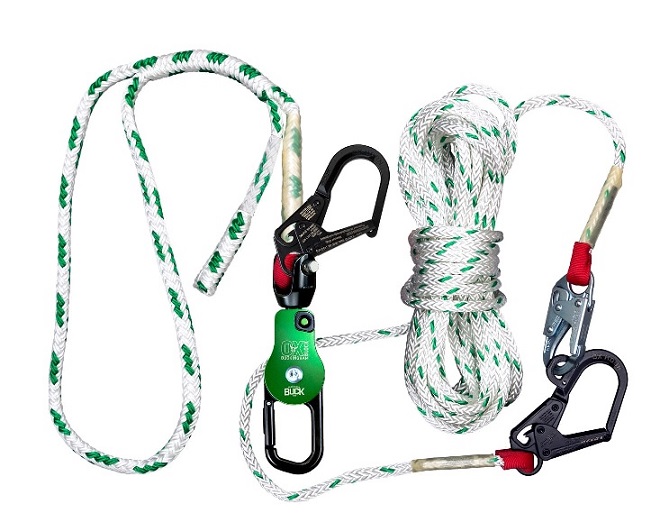

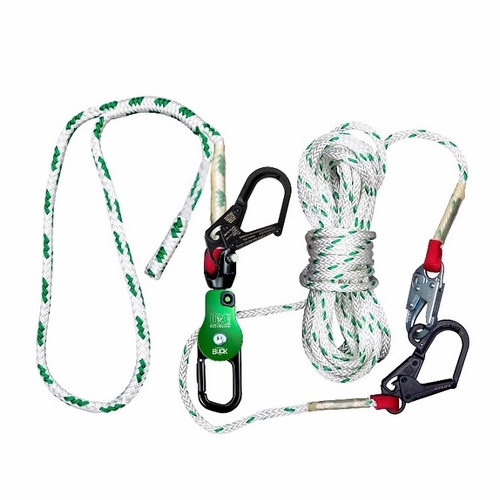

An OX BLOCK® Clevis Top w/ Buck Pin with the Ox Hook™ & Ox Horn™, 4' x 5/8” adjustable sling and option between an 80', 100’, or 250’ handline assembly.
The Buck Pin is a SLIC Pin specifically customized to fit our Ox clevis top. The advantage of the Buck Pin is that it allows the user to add or remove accessories more quickly and easily than the shoulder bolt does.
The OX BLOCK® is a rope snatchblock with an integrated friction bar used for:
Hurtman/self-rescue Lowering Raising Snubbing loads
Sling Length 4 ft Handline Length 80 ft SKU: 50063K18-4/80
Specifications roduct Number: 31291B Product Name: OX Horn™ Length: 8" Width: 4.5" Weight: 1.15 lbs. Material: Lightweight Aluminum Gate Opening Capacity: 2" Eye Diameter: 1" WLL: 2,500 lbs. (Closed Gate) / 1,000 lbs. (Open Gate) Made in USA?: Yes Product Number: 2406S Option Number: N/A Weight: 19.5oz Length: 7.83" Width: 3.87" Material: Forged Steel Diameter of Eye: 0.986" Gate Opening Capacity: 2.01" Gate Strength: 3000 lbf WLL: 2,500 lbs. (Closed Gate) / 1,000 lbs. (Open Gate Product Number: 50062K18-4/Length Product Name: OX BLOCK™ HANDLINE ASSEMBLY W/OX HOOK™ & OX HORN™ Adjustable Sling: 4' x 5/8" Handline Assembly: 80', 100', or 250' OX Hook™ Connector: Ox Block™ & Ox Horn™ Product Number: 50063D Product Name: OX BLOCK™ CLEVIS TOP W/ Buck Pin and OX HORN™ Material: Lightweight Aluminum Length: 10.5" Width: 2" Gate Opening Capacity: 1.5" Weight: 2.15 Adjustable Sling: No Connector WLL: OX Horn – 2,500 lbs. (Closed Gate) / 1,000 lbs. (Open Gate) HOOK TO EYE: MBS: 6,000 lbs WLL: 1,500 lbf SHEAVE TO EYE: MBS: 10,000 lbs WLL: 2,500 lbf OX Block™ Standards: ASME B30 Compliant Made In USA?: Yes
