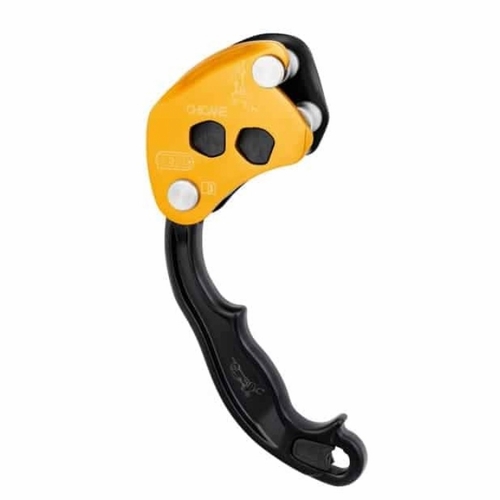

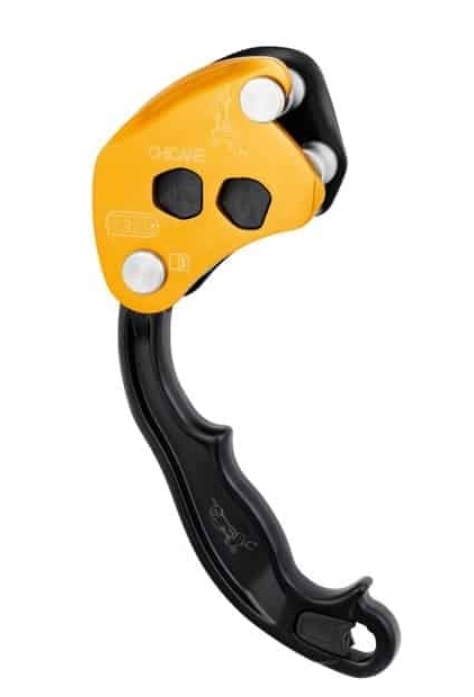

Buckingham D022CA00 Chicane Auxiliary Braking Device
Available*
Item # 376509212
Model # D022CA00
$196.34
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
ROPES
Safety Equipment
Personnel Retrieval
Rope-Retreval-Safety-Rigging
Buckingham Manufacturing
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
Buckingham D022CA00 Chicane Auxiliary Braking Device
Buckingham D022CA00 Chicane Auxiliary Braking Device
SKU: D022CA00 Chicane Auxiliary Braking Device
The CHICANE auxiliary braking device allows ZIGZAG and ZIGZAG PLUS mechanical Prusiks to be used on single ropes. It provides continuous additional friction on descents. The excellent compatibility of the CHICANE and mechanical Prusik as an assembled unit ensures smooth rope glide through the brake during ascents. The ergonomic handle provides excellent grip and facilitates movement while limb walking. Thanks to the openable side plate, installation is quick and easy.
Features
Allows ZIGZAG and ZIGZAG PLUS mechanical Prusiks to be used on single ropes:
Continuous additional braking action, thanks to the added friction of the two friction pins Used with an Am’D or OK connector (not included). The H-shaped cross-section of the connector, together with the positioning ring of the mechanical Prusik, make the CHICANE and mechanical Prusik a compatible unit that ensures smooth rope glide through the brake during ascents Ergonomic handle facilitates movement while limb walking Easy installation:
Openable side plate for quick and easy installation on the rope Triple action unlocking limits rick of accidentally opening the side plate Connects on the upper hole of the mechanical Prusik Optimized durability, thanks to the two friction pins, available as spare parts CHICANE allows the user to work in compliance with the ANSI Z133 standard
Specs Product # D022CA00 Product Name Chicane Width 3.74 in Length 7.48 in Height 1.58 in Weight .66 lb Material Aluminum, Steel & Nylon Rope Capacity 11.5-13 mm Rope Compatibility Low stretch kernmantle rope Working Load Limit 140 kg Certifications(s) CE, ANSI Z133 standard
Buckingham D022CA00 Chicane Auxiliary Braking Device
SKU: D022CA00 Chicane Auxiliary Braking Device
The CHICANE auxiliary braking device allows ZIGZAG and ZIGZAG PLUS mechanical Prusiks to be used on single ropes. It provides continuous additional friction on descents. The excellent compatibility of the CHICANE and mechanical Prusik as an assembled unit ensures smooth rope glide through the brake during ascents. The ergonomic handle provides excellent grip and facilitates movement while limb walking. Thanks to the openable side plate, installation is quick and easy.
Features
Allows ZIGZAG and ZIGZAG PLUS mechanical Prusiks to be used on single ropes:
Continuous additional braking action, thanks to the added friction of the two friction pins Used with an Am’D or OK connector (not included). The H-shaped cross-section of the connector, together with the positioning ring of the mechanical Prusik, make the CHICANE and mechanical Prusik a compatible unit that ensures smooth rope glide through the brake during ascents Ergonomic handle facilitates movement while limb walking Easy installation:
Openable side plate for quick and easy installation on the rope Triple action unlocking limits rick of accidentally opening the side plate Connects on the upper hole of the mechanical Prusik Optimized durability, thanks to the two friction pins, available as spare parts CHICANE allows the user to work in compliance with the ANSI Z133 standard
Specs Product # D022CA00 Product Name Chicane Width 3.74 in Length 7.48 in Height 1.58 in Weight .66 lb Material Aluminum, Steel & Nylon Rope Capacity 11.5-13 mm Rope Compatibility Low stretch kernmantle rope Working Load Limit 140 kg Certifications(s) CE, ANSI Z133 standard
