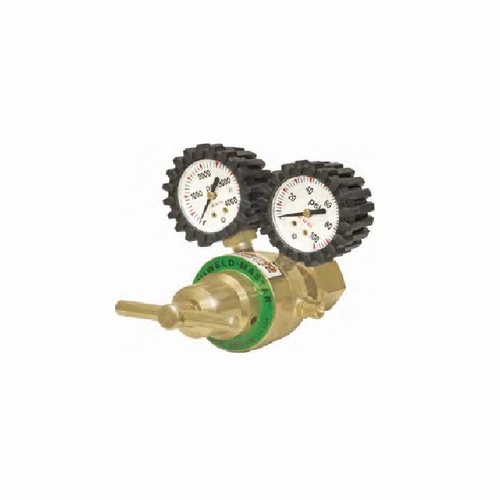

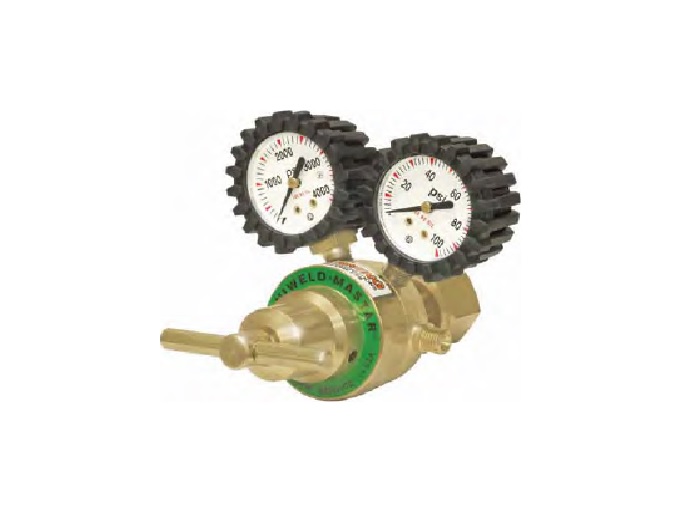

UNIWELD 12107 / UPC 12107 Mastar Lt Duty 1 Stage Regulator Acetylene w/Gauge Boots PSI/Kg 2-15 PSIG
Available*
Item # 37840510
Model # 12107
$108.53
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
TORCHES
Tools
Torches- Heat Shrink
Kits
Uniweld Products Inc
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
UNIWELD 12107 / UPC 12107 Mastar Lt Duty 1 Stage Regulator Acetylene w/Gauge Boots PSI/Kg 2-15 PSIG
MASTAR RS SERIES - Light Duty Forged brass body Machined brass bonnet Easy-to-read single scale 1-1/2" gauges 1-5/8" tri-layered reinforced neoprene diaphragm Mechanical stem type seat Rear inlet cylinder connection Porous metal inlet filter T-handle for smooth adjustment Blow off disc type pressure relief for low pressure gauge protection only Protective rubber gauge boots
SPECS: CGA INLET : Acetylene 520 OUTLET CONNECTION: "A" (LH) 3/8" -24(M) DEL. PSIG : 2-15 REPLACEMENT 1-1/2" GAUGES : G79-1; 30 PSI/Kg (RL) G73-1; 400 PSI/Kg
Depth: 6” Width: 3-3/4” Height: 4-1/4” Weight: 2-1/2 lbs.
Note: The standard cubic foot per hour flows are obtained with the regulator outlet full open with no restrictions; using a preset outlet pressure and with decreasing cylinder pressure.
MASTAR RS SERIES - Light Duty Forged brass body Machined brass bonnet Easy-to-read single scale 1-1/2" gauges 1-5/8" tri-layered reinforced neoprene diaphragm Mechanical stem type seat Rear inlet cylinder connection Porous metal inlet filter T-handle for smooth adjustment Blow off disc type pressure relief for low pressure gauge protection only Protective rubber gauge boots
SPECS: CGA INLET : Acetylene 520 OUTLET CONNECTION: "A" (LH) 3/8" -24(M) DEL. PSIG : 2-15 REPLACEMENT 1-1/2" GAUGES : G79-1; 30 PSI/Kg (RL) G73-1; 400 PSI/Kg
Depth: 6” Width: 3-3/4” Height: 4-1/4” Weight: 2-1/2 lbs.
Note: The standard cubic foot per hour flows are obtained with the regulator outlet full open with no restrictions; using a preset outlet pressure and with decreasing cylinder pressure.
