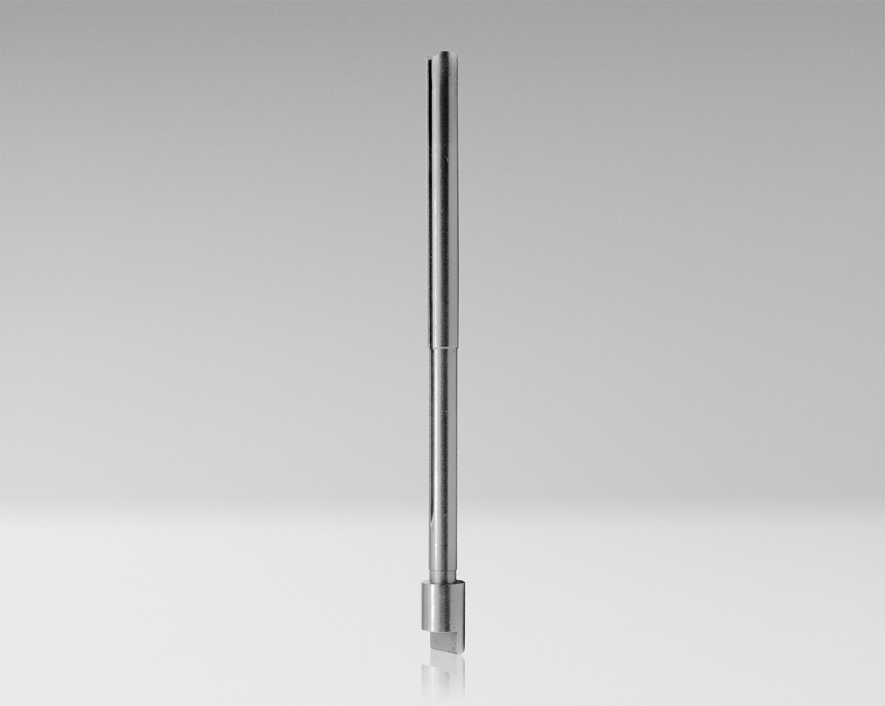

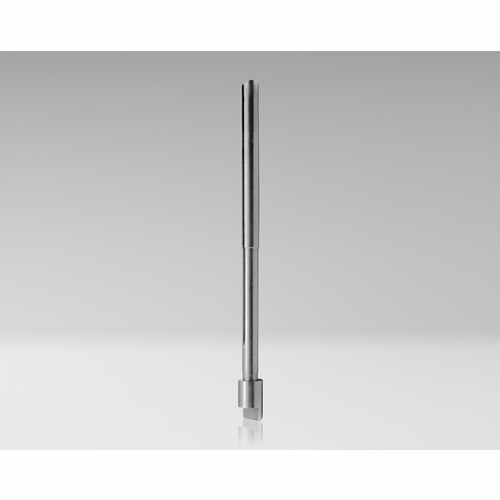

JONARD BW2224 22-24AWG Bit for Manual Wrap Gun
Item # 38280160
Model # BW2224
Call for FREE Estimate
CLICK OR DIAL 800-422-4823
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
SLEEVE
Tools
Hand Tools
Wire Wrapping- Frame- Block
Jonard Industries Corp
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
JONARD BW2224 22-24AWG Bit for Manual Wrap Gun
Compatible with our G100/R3278 Wire Wrapping Tool or any model of our PTX power tools, this wire wrap bit is perfect for wrapping 22-24 AWG wire from binding posts. This wrap bit also features the following:
Using the compatible sleeve and tool, you can wrap wire onto binding posts quickly and easily Wire Gauge: 22-24 AWG (0.65-0.50 mm) Terminal Hole Diameter: 0.075" (1.9 mm) Compatible Tool Part #'s: G100/R3278, PTX series Compatible Unwrap Sleeve Part #: SW-2224
Specifications Wrap Function Wrap
Wire Gauge 22-24 AWG (0.65-0.50 mm)
Terminal Hole Depth 0.807" (20.05 mm)
Terminal Hole Diameter 0.075" (1.9 mm)
Wrap Post Size 0.045" (1.14 mm)
Minimum Terminal Diagonal 0.054" (1.37 mm)
Maximum Terminal Diagonal 0.073" (1.85 mm)
Effective Diameter 0.075" (1.9 mm)
Length 3" (76.2 mm)
Weight 0.057 lb (25.85 g)
UPC No. 811490011632
