SIECOR 012KW5-T4130A20 12-FIBER MM OSP FLOODED
Available*
Item # 51211500
Model # 012KW5-T4130A2
$1.70
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
CABLE
Wire and Cable
Fiber Optic
Buried Underground
Corning Inc
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

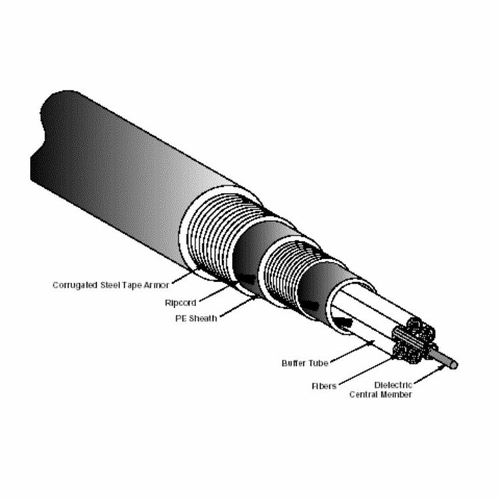

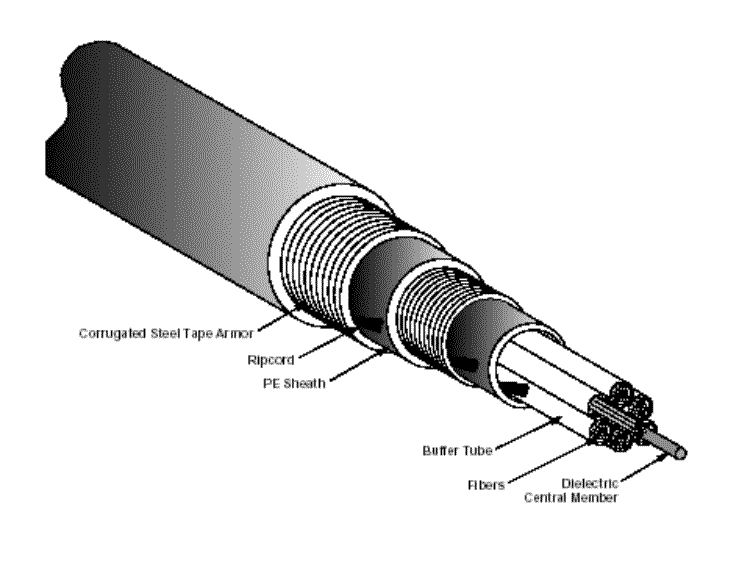

SIECOR 012KW5-T4130A20 12-FIBER MM OSP FLOODED NEW 12-Fiber 62.5/125 um Loose Tube cable, Dielectric Central Member/Armor, Mini Bundle Cable, 6 fibers per tube, 2700 N Maximum tensile rating (600 lbs), 62.5/125 850/1300 attenuation 3.5/1.0 dB per km, Bandwith in MHz/km 160/500 10, 160/600 11, 200/500 12, 200/600 13 gel filled.
Siecor's loose tube cables are for general purpose outdoor and indoor use. The loose tube cable construction, which Siecor pioneered, places varying numbers of fibers in each buffer tube. The loose tube design provides stable and highly reliable transmision parameters for a variety of voice, data, and video applications. the design also provides a high density of fibers contained in a given cable diameter while allowing the flexibility to suit many systems designs. These cables are suitable for outdoor duct, aerial, and direct buried installations, and for indoor use when installed in accordance with NEC Article 770.
Applications
Interbuilding backbone For use in duct, aerial, and direct buried applications Wide range of fiber counts
Features/Benefits
Different fiber type available within a cable (hybrid construction)
Lowest losses at long distances
Loose tube cable with multimode fiber available in up to 4km lengths
Color-coded fibers and buffer tubes for quick and easy identification during installation
Available with dispersion-shifted single-mode, single-mode, 50/125um, 62.5/125um, and 100/140um multimode fiber
All-dielectric or steel central member
Easily spliced using a variety of proven methods
Ripcords for easy sheath removal
minimum order 1,312 ft
