Multilink 030-129-10 Opto-Electronic Enclosure, w/fan shelf Opto-Electronic Enclosures
Item # 51295010
Model # 030-129-10
Call for FREE Estimate
CLICK OR DIAL 800-422-4823
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
CABINET
Material and Supplies
Cabinets- Splice Centers
Cross Connect Cabinets
Multilink
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
Multilink 030-129-10 Opto-Electronic Enclosure, w/fan shelf Opto-Electronic Enclosures
Multilink 030-129-10 Opto-Electronic Enclosure, w/fan shelf Opto-Electronic Enclosures

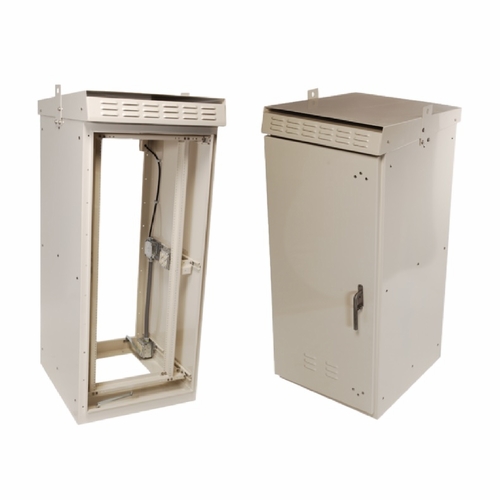

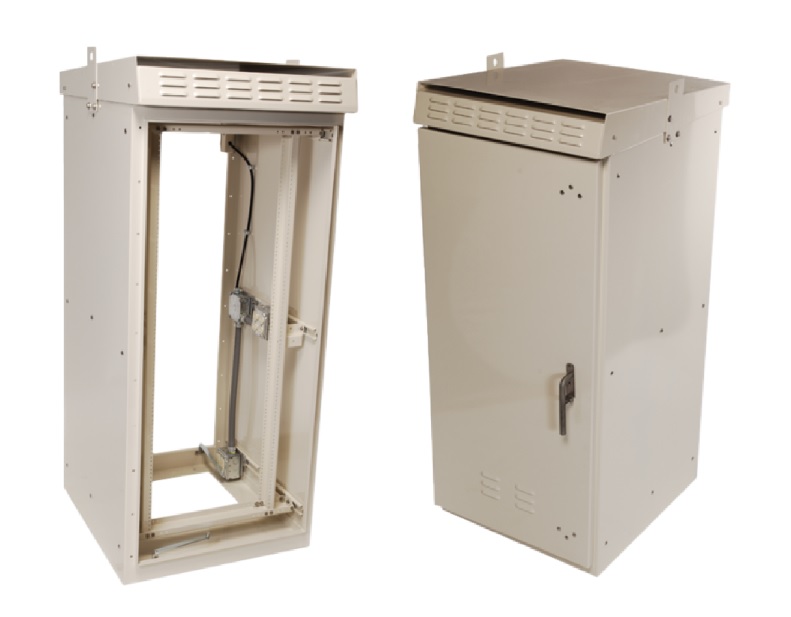

Multilink’s Opto-Electronic Enclosure is designed for 19" & 23" rack mounted equipment. This enclosure is designed to protect the equipment from dust, snow and rain. It is equipped with two duplex GFI outlets, a fluorescent light that gets activated by an automatic pressure switch when the door opens. The internal rack is 52" height (29 Rack Units). Also equipped with a solar shield installed above the roof for additional protection from sun loading. An optional air conditioner is available,
General Specifications Powering Customer To Supply 120/240VAC (3) Duplex Receptacle GFCI, 15A, 125VAC, 60Hz (1) Light, 18", 15W, 120VAC (F15-T8-CW/TSC) Controlled By Door Switch UOM Each Cable Entrance 14" x 24" Rectangle Opening On Bottom Rear Hardware Stainless Steel Door 3 Point Latch Piano Hinge Light Control Switch Wind Stop Front and Back Heating & Cooling Ventilation Louvers On Bottom Of Both Doors Backed By Bug Screen Sloped Roof w/ Ventilation Louvers Backed By Bug Screen Solar Shield Protecting Roof Fan Shelf, 1RU, (6) 100 CFM Fans Mounted On Rack at Top (744-386-20) 120Vac, 15A Breaker, 10ft Cord
Physical Specifications Width 28" Height 65.5" Depth 33" Weight 230 lbs Color Beige Main Body Aluminum Finish Polyester Powder Coat
Mechanical Specifications Mounting Ground
Rack Specifications Rack Width 19" - 23" Rack Units 29RU Rack Threads 10 - 32 EIA/TIA Spacing
Multilink 030-129-10 Opto-Electronic Enclosure, w/fan shelf Opto-Electronic Enclosures
Multilink’s Opto-Electronic Enclosure is designed for 19" & 23" rack mounted equipment. This enclosure is designed to protect the equipment from dust, snow and rain. It is equipped with two duplex GFI outlets, a fluorescent light that gets activated by an automatic pressure switch when the door opens. The internal rack is 52" height (29 Rack Units). Also equipped with a solar shield installed above the roof for additional protection from sun loading. An optional air conditioner is available,
General Specifications Powering Customer To Supply 120/240VAC (3) Duplex Receptacle GFCI, 15A, 125VAC, 60Hz (1) Light, 18", 15W, 120VAC (F15-T8-CW/TSC) Controlled By Door Switch UOM Each Cable Entrance 14" x 24" Rectangle Opening On Bottom Rear Hardware Stainless Steel Door 3 Point Latch Piano Hinge Light Control Switch Wind Stop Front and Back Heating & Cooling Ventilation Louvers On Bottom Of Both Doors Backed By Bug Screen Sloped Roof w/ Ventilation Louvers Backed By Bug Screen Solar Shield Protecting Roof Fan Shelf, 1RU, (6) 100 CFM Fans Mounted On Rack at Top (744-386-20) 120Vac, 15A Breaker, 10ft Cord
Physical Specifications Width 28" Height 65.5" Depth 33" Weight 230 lbs Color Beige Main Body Aluminum Finish Polyester Powder Coat
Mechanical Specifications Mounting Ground
Rack Specifications Rack Width 19" - 23" Rack Units 29RU Rack Threads 10 - 32 EIA/TIA Spacing
