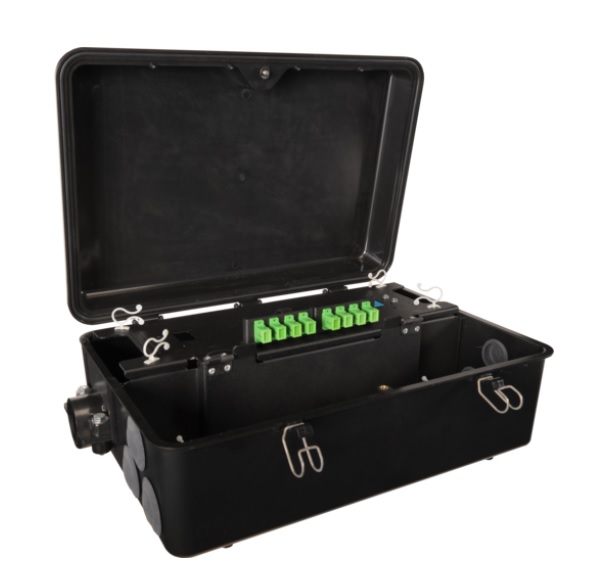

Multilink 020-066-10 Starfighter OTE Optical Termination Enclosure w/8 SC/APC Adapters Splice Closu
Available*
Item # 51295515
Model # 020-066-10
$357.83
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
CLOSURES
Fiber Optic Products
Fiber Optic Infrastructure
Fiber Closure
Multilink
Fiber Closure Free Breathing
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
Multilink 020-066-10 Starfighter OTE Optical Termination Enclosure w/8 SC/APC Adapters Splice Closu
Multilink 020-066-10 Starfighter OTE Optical Termination Enclosure w/8 SC/APC Adapters Splice Closures
FTTH-OTE 8 SC/APC Adapters 020-066-10 The OTE (Optical Terminal Enclosure) is designed to support the splicing of optical drops and traditional splicing in aerial, pole, or wall mount applications. The unit is an inline enclosure with four ports on each end. The OTE is constructed of a durable and impact-resistant polyethylene material specifically formulated for outside plant environments. The unit can support express cabling as well as the addition of branch or lateral cabling. When used as a drop splicing enclosure, the OTE will support a variety of drop designs and provide the environmental sealing and strain relief required. Up to 36 drops can be supported in FTTH applications. The enclosure is supplied with all of the hardware required to seal and secure the express/feeder cables, and a (12) fiber splice tray.
General Specifications Standard Cables 4 (Express Feeder) Exterior Dimensions 18.5" 6.0" 11.5" FTTH/Lateral Ports 8 Ports (up to 36 individual Drops) Express/Feeder Cable Diameter Max. 1.124"/Min. 0.375 Standard Single Splices 50 Branch/Lateral Cable Diameter Max. 0.98"/Min. 0.30" Cable Entrance (2) Express Feeder (6) Branch Lateral or Multiport UOM Each
Physical Specifications Weight 12 lbs.
Splice Tray Specifications Splice Tray 6 (Enclosure comes equipped with 1 Tray)
Multilink 020-066-10 Starfighter OTE Optical Termination Enclosure w/8 SC/APC Adapters Splice Closures
FTTH-OTE 8 SC/APC Adapters 020-066-10 The OTE (Optical Terminal Enclosure) is designed to support the splicing of optical drops and traditional splicing in aerial, pole, or wall mount applications. The unit is an inline enclosure with four ports on each end. The OTE is constructed of a durable and impact-resistant polyethylene material specifically formulated for outside plant environments. The unit can support express cabling as well as the addition of branch or lateral cabling. When used as a drop splicing enclosure, the OTE will support a variety of drop designs and provide the environmental sealing and strain relief required. Up to 36 drops can be supported in FTTH applications. The enclosure is supplied with all of the hardware required to seal and secure the express/feeder cables, and a (12) fiber splice tray.
General Specifications Standard Cables 4 (Express Feeder) Exterior Dimensions 18.5" 6.0" 11.5" FTTH/Lateral Ports 8 Ports (up to 36 individual Drops) Express/Feeder Cable Diameter Max. 1.124"/Min. 0.375 Standard Single Splices 50 Branch/Lateral Cable Diameter Max. 0.98"/Min. 0.30" Cable Entrance (2) Express Feeder (6) Branch Lateral or Multiport UOM Each
Physical Specifications Weight 12 lbs.
Splice Tray Specifications Splice Tray 6 (Enclosure comes equipped with 1 Tray)
