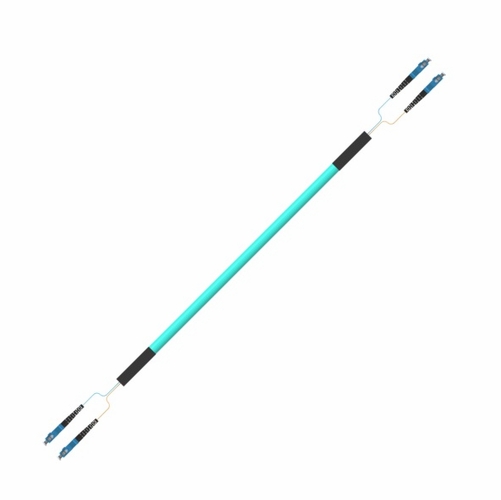

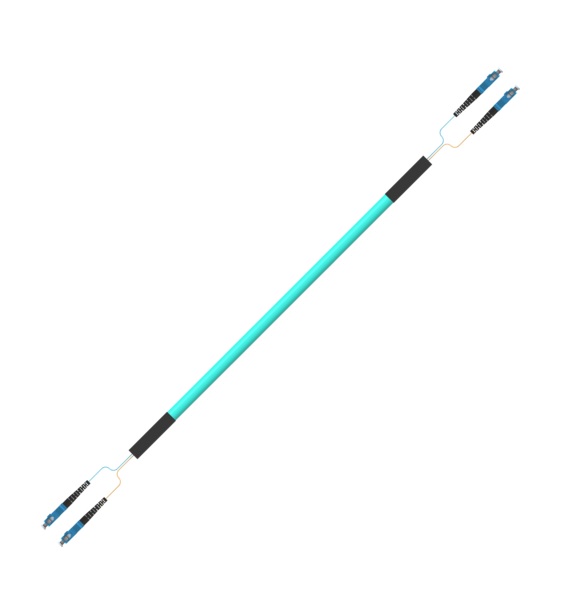

Multilink 10-6230-Ml Jumper, Duplex, Sc - Sc, 3.0Mm, 2Meter Fiber Jumpers
Item # 51296400
Model # 10-6230-ML
Call for FREE Estimate
CLICK OR DIAL 800-422-4823
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Patchcord
Fiber Optic Products
Fiber Optic Infrastructure
Fiber Patch Cables
Multilink
Fiber Single Mode
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
Multilink 10-6230-Ml Jumper, Duplex, Sc - Sc, 3.0Mm, 2Meter Fiber Jumpers
Multilink 10-6230-Ml Jumper, Duplex, Sc - Sc, 3.0Mm, 2Meter Fiber Jumpers
Fiber Optic Jumper 10-6230-Ml Fiber Optic Jumper, 2 Fiber Duplex Zipcord, Sc/Upc To Sc/Upc, Tight Buffered Cable, Riser Rated, 3.0Mm, Multimode 50/125Um, Om3
General Specifications Application Riser Rated Indoor Vertical General Building Applications Outer Jacket Color Aqua Fiber Count 2 Cable Assesmbly Type Duplex Fiber Cable Length 2 Meter Polish #1 Upc Nominal Outer Diameter 3.6Mm Flame Rating Riser Rated Ofnr Polish #2 Upc
Fiber Specifications Cable Type Multimode 3.0Mm Duplex Zipcord 50/125µm Tight Buffered Fiber Om3 Reflectance, Typical #2 < -45 Db Fiber Category Multimode (Om3) Reflectance, Typical #1 < -45 Db Insertion Loss Typical 0.20 Db
Connector Specifications Connector Type Sc/Upc Ferrule Material Zirconia Boot Color Black Housing Material Composite Housing Color Aqua
Multilink 10-6230-Ml Jumper, Duplex, Sc - Sc, 3.0Mm, 2Meter Fiber Jumpers
Fiber Optic Jumper 10-6230-Ml Fiber Optic Jumper, 2 Fiber Duplex Zipcord, Sc/Upc To Sc/Upc, Tight Buffered Cable, Riser Rated, 3.0Mm, Multimode 50/125Um, Om3
General Specifications Application Riser Rated Indoor Vertical General Building Applications Outer Jacket Color Aqua Fiber Count 2 Cable Assesmbly Type Duplex Fiber Cable Length 2 Meter Polish #1 Upc Nominal Outer Diameter 3.6Mm Flame Rating Riser Rated Ofnr Polish #2 Upc
Fiber Specifications Cable Type Multimode 3.0Mm Duplex Zipcord 50/125µm Tight Buffered Fiber Om3 Reflectance, Typical #2 < -45 Db Fiber Category Multimode (Om3) Reflectance, Typical #1 < -45 Db Insertion Loss Typical 0.20 Db
Connector Specifications Connector Type Sc/Upc Ferrule Material Zirconia Boot Color Black Housing Material Composite Housing Color Aqua
