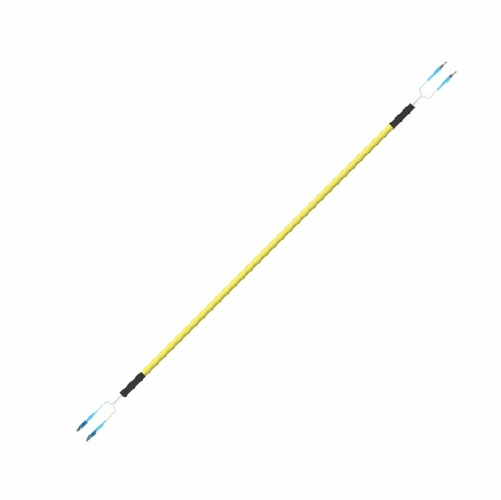

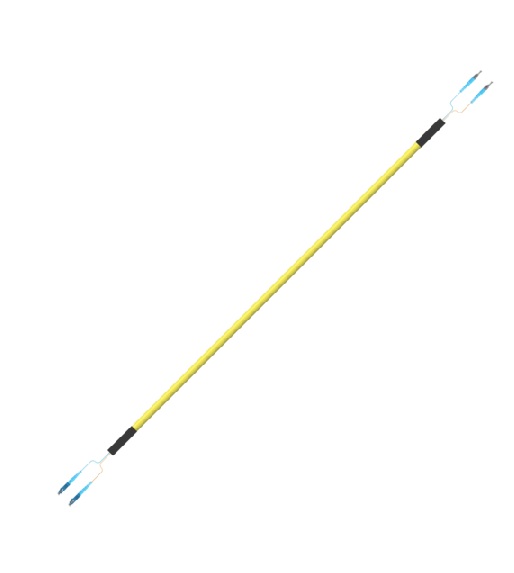

Multilink 10-6393-ML Jumper, Duplex, ST/UPC - SC/UPC, 3.0mm, 5meter FIBER JUMPERS
Item # 51297270
Model # 10-6393-ML
Call for FREE Estimate
CLICK OR DIAL 800-422-4823
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
PATCHCORD
Fiber Optic Products
Fiber Optic Infrastructure
Fiber Patch Cables
Multilink
Fiber Single Mode
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
Multilink 10-6393-ML Jumper, Duplex, ST/UPC - SC/UPC, 3.0mm, 5meter FIBER JUMPERS
Multilink 10-6393-ML Jumper, Duplex, ST/UPC - SC/UPC, 3.0mm, 5meter FIBER JUMPERS
Fiber Optic Jumper 10-6393-ML Fiber Optic Jumper, 2 Fiber Duplex Zipcord SC/UPC to ST/UPC, Tight Buffered Cable, Riser Rated, 3.0mm, Singlemode 9/125um, Bend Insensitive
General Specifications Cable Assesmbly Type Duplex Fiber Cable Length 5 Meter Polish #1 UPC Nominal Outer Diameter 3.6mm Flame Rating Riser Rated OFNR Polish #2 UPC Application Riser Rated General Building Applications Indoor Horizontal Outer Jacket Color Yellow Fiber Count 2
Fiber Specifications Cable Type Singlemode 3.0mm Duplex Zipcord 9/125µm Tight Buffered Bend Insensitive G657 A1 Fiber Category Singlemode (OS1) Reflectance, Typical #2 < -58 dB Reflectance, Typical #1 < -58 dB Insertion Loss Typical 0.12 dB
Connector Specifications Connector Type SC/UPC ST/UPC Housing Material Metal Composite Boot Color Blue Housing Color Blue N/A Ferrule Material Zirconia
Multilink 10-6393-ML Jumper, Duplex, ST/UPC - SC/UPC, 3.0mm, 5meter FIBER JUMPERS
Fiber Optic Jumper 10-6393-ML Fiber Optic Jumper, 2 Fiber Duplex Zipcord SC/UPC to ST/UPC, Tight Buffered Cable, Riser Rated, 3.0mm, Singlemode 9/125um, Bend Insensitive
General Specifications Cable Assesmbly Type Duplex Fiber Cable Length 5 Meter Polish #1 UPC Nominal Outer Diameter 3.6mm Flame Rating Riser Rated OFNR Polish #2 UPC Application Riser Rated General Building Applications Indoor Horizontal Outer Jacket Color Yellow Fiber Count 2
Fiber Specifications Cable Type Singlemode 3.0mm Duplex Zipcord 9/125µm Tight Buffered Bend Insensitive G657 A1 Fiber Category Singlemode (OS1) Reflectance, Typical #2 < -58 dB Reflectance, Typical #1 < -58 dB Insertion Loss Typical 0.12 dB
Connector Specifications Connector Type SC/UPC ST/UPC Housing Material Metal Composite Boot Color Blue Housing Color Blue N/A Ferrule Material Zirconia
