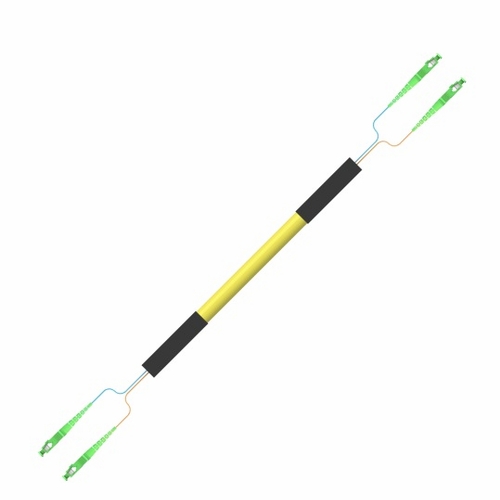

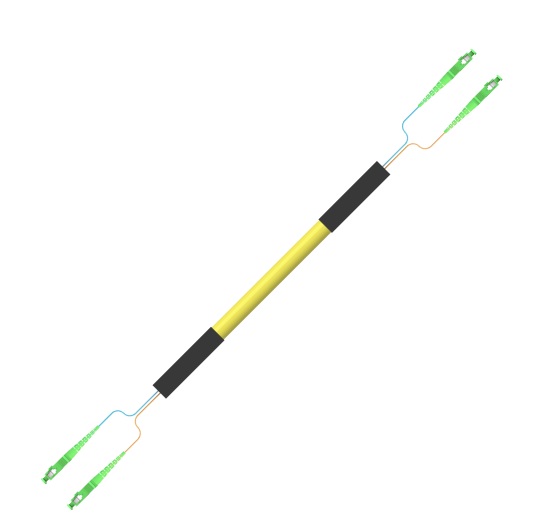

Multilink 065-534-10-ML Jumper, Duplex, SC/APC - SC/APC. 3.0mm, 5meter FIBER JUMPERS
Item # 51297420
Model # 065-534-10-ML
Call for FREE Estimate
CLICK OR DIAL 800-422-4823
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
PATCHCORD
Fiber Optic Products
Fiber Optic Infrastructure
Fiber Patch Cables
Multilink
Fiber Single Mode
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
Multilink 065-534-10-ML Jumper, Duplex, SC/APC - SC/APC. 3.0mm, 5meter FIBER JUMPERS
Multilink 065-534-10-ML Jumper, Duplex, SC/APC - SC/APC. 3.0mm, 5meter FIBER JUMPERS
Fiber Optic Jumper 065-534-10-ML Fiber Optic Jumper, 2 Fiber Duplex Zipcord SC/APC to SC/APC, Tight Buffered Cable, Riser Rated, 3.0mm, Singlemode 9/125um, Bend Insensitive
General Specifications Cable Length 5 Meter Application Riser Rated General Building Applications Indoor Horizontal Outer Jacket Color Yellow Polish #1 APC Cable Assesmbly Type Duplex Fiber Polish #2 APC Fiber Count 2 Nominal Outer Diameter 3.6mm Flame Rating Riser Rated OFNR
Fiber Specifications Cable Type Singlemode 3.0mm Duplex Zipcord 9/125µm Tight Buffered Bend Insensitive G657 A1 Fiber Category Singlemode (OS1) Reflectance, Typical #2 < -65 dB Insertion Loss Typical 0.12 dB Reflectance, Typical #1 < -65 dB
Connector Specifications Connector Type SC/APC Ferrule Material Zirconia Housing Color Green Boot Color Green Housing Material Composite
Multilink 065-534-10-ML Jumper, Duplex, SC/APC - SC/APC. 3.0mm, 5meter FIBER JUMPERS
Fiber Optic Jumper 065-534-10-ML Fiber Optic Jumper, 2 Fiber Duplex Zipcord SC/APC to SC/APC, Tight Buffered Cable, Riser Rated, 3.0mm, Singlemode 9/125um, Bend Insensitive
General Specifications Cable Length 5 Meter Application Riser Rated General Building Applications Indoor Horizontal Outer Jacket Color Yellow Polish #1 APC Cable Assesmbly Type Duplex Fiber Polish #2 APC Fiber Count 2 Nominal Outer Diameter 3.6mm Flame Rating Riser Rated OFNR
Fiber Specifications Cable Type Singlemode 3.0mm Duplex Zipcord 9/125µm Tight Buffered Bend Insensitive G657 A1 Fiber Category Singlemode (OS1) Reflectance, Typical #2 < -65 dB Insertion Loss Typical 0.12 dB Reflectance, Typical #1 < -65 dB
Connector Specifications Connector Type SC/APC Ferrule Material Zirconia Housing Color Green Boot Color Green Housing Material Composite
