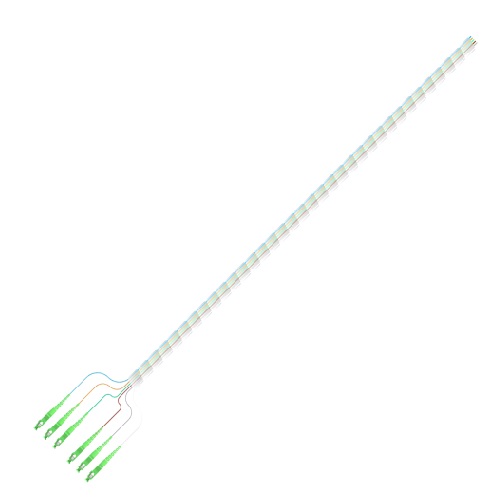

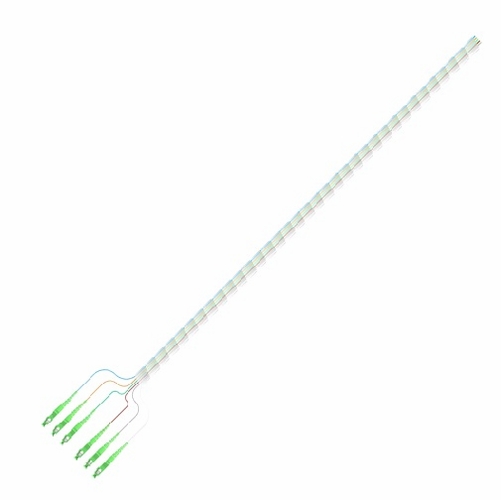

Multilink 10-6417-ML Pigtail, 6 Fiber, SC/APC, SM, 3 meter Spiral Wrapped PLC Optical Splitters
Item # 51298365
Model # 10-6417-ML
Call for FREE Estimate
CLICK OR DIAL 800-422-4823
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
PIGTAILS
Fiber Optic Products
Fiber Optic Infrastructure
Fiber Pigtails- Breakouts
Multilink
SC ST LC FC E2000 MTJ Universal Adapters
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
Multilink 10-6417-ML Pigtail, 6 Fiber, SC/APC, SM, 3 meter Spiral Wrapped PLC Optical Splitters
Multilink 10-6417-ML Pigtail, 6 Fiber, SC/APC, SM, 3 meter Spiral Wrapped PLC Optical Splitters
SC/APC Fiber Optic Pigtail 10-6417-ML SC/APC, 6 Fibers Spiral Wrapped, 900µm Singlemode 9/125µm, Bend insensitive, 8" Breakout
General Specifications Cable Assesmbly Type 6 Fiber Pigtail Application Riser Rated General Building Applications Indoor Horizontal Fiber Count 6 Cable Length 3 Meter Outer Jacket Color Natural Flame Rating Riser Rated OFNR Nominal Outer Diameter 6.35mm
Fiber Specifications Fiber Category Singlemode (OS1) Cable Type (6) Singlemode 900µm Simplex 9/125µm Tight Buffered Bend Insensitive G657 A1 Reflectance, Typical #1 < -65 dB Insertion Loss Typical 0.12 dB
Connector Specifications Polish APC Connector Type SC/APC Boot Color Green Housing Color Green Ferrule Material Zirconia Housing Material Composite
Multilink 10-6417-ML Pigtail, 6 Fiber, SC/APC, SM, 3 meter Spiral Wrapped PLC Optical Splitters
SC/APC Fiber Optic Pigtail 10-6417-ML SC/APC, 6 Fibers Spiral Wrapped, 900µm Singlemode 9/125µm, Bend insensitive, 8" Breakout
General Specifications Cable Assesmbly Type 6 Fiber Pigtail Application Riser Rated General Building Applications Indoor Horizontal Fiber Count 6 Cable Length 3 Meter Outer Jacket Color Natural Flame Rating Riser Rated OFNR Nominal Outer Diameter 6.35mm
Fiber Specifications Fiber Category Singlemode (OS1) Cable Type (6) Singlemode 900µm Simplex 9/125µm Tight Buffered Bend Insensitive G657 A1 Reflectance, Typical #1 < -65 dB Insertion Loss Typical 0.12 dB
Connector Specifications Polish APC Connector Type SC/APC Boot Color Green Housing Color Green Ferrule Material Zirconia Housing Material Composite
