PLP 8003477H3 ALUMINUM DOWNLEAD CUSHION 1/2 inch HDWR 0.751 - 0.797 *ORDER MINIMUM* 20
Available*
Item # 51438057
Model # 8003477H3
$30.12
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
ZNOSORT
Material and Supplies
Hardware- Screws- Bolts
Clamps
Preformed Line Products
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
PLP 8003477H3 ALUMINUM DOWNLEAD CUSHION 1/2 inch HDWR 0.751 - 0.797 *ORDER MINIMUM* 20
PLP 8003477H3 ALUMINUM DOWNLEAD CUSHION 1/2 inch HDWR 0.751 - 0.797 *ORDER MINIMUM* 20
P/N 8003477H3 Preformed Line Products Aluminum Downlead Cushion Cushion with 1/2 inch- 13 UNC Hex Head Bolt Hardware Kit OPGW Diameter Range 0.751 - 0.797 (19.1 mm - 20.2 mm) *ORDER MINIMUM* 20

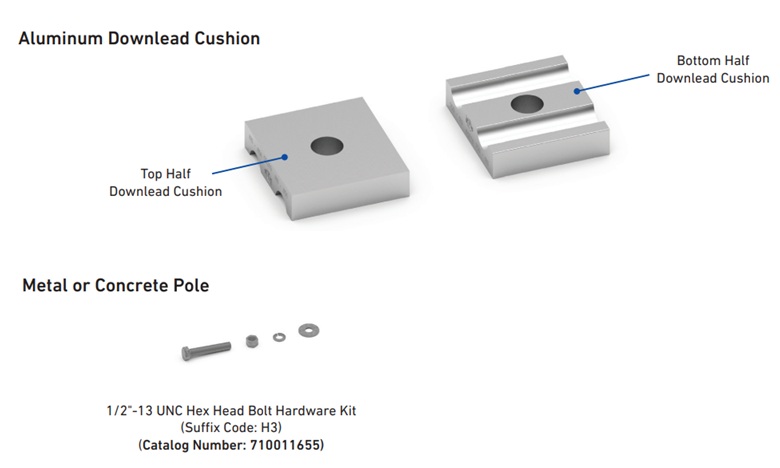

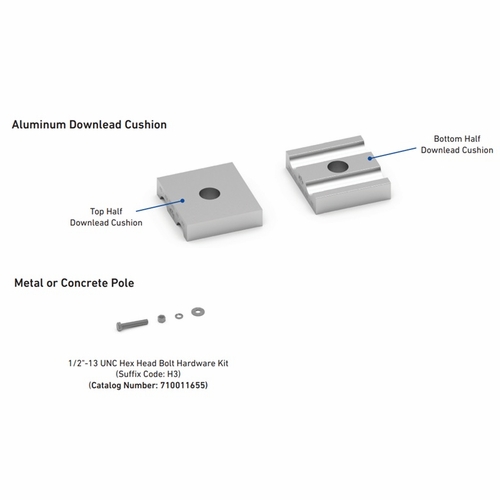

The FIBERLIGN Downlead Cushion secures OPGW downleads to poles or structures while minimizing compressive clamping forces which could be transferred to the optical elements. The Downlead Cushion is a two-piece design with a base and cap that has parallel grooves to accommodate specifi ed OPGW diameters. Various mounting accessories can be included to install the Downlead Cushion on diff erent types of utility poles and structures, including lattice towers.
FEATURES AND BENEFITS • Firmly secures OPGW to poles and structures without compromising OPGW integrity • Standard cushion has two grooves to support each OPGW downlead • Made from an all-aluminum alloy that provides an electrical path from the OPGW to the structure for bonding purposes or urethane • Kits can include mounting accessories to secure the downlead cushion to poles (wood, concrete, or metal) or lattice towers
PLP 8003477H3 ALUMINUM DOWNLEAD CUSHION 1/2 inch HDWR 0.751 - 0.797 *ORDER MINIMUM* 20
P/N 8003477H3 Preformed Line Products Aluminum Downlead Cushion Cushion with 1/2 inch- 13 UNC Hex Head Bolt Hardware Kit OPGW Diameter Range 0.751 - 0.797 (19.1 mm - 20.2 mm) *ORDER MINIMUM* 20
The FIBERLIGN Downlead Cushion secures OPGW downleads to poles or structures while minimizing compressive clamping forces which could be transferred to the optical elements. The Downlead Cushion is a two-piece design with a base and cap that has parallel grooves to accommodate specifi ed OPGW diameters. Various mounting accessories can be included to install the Downlead Cushion on diff erent types of utility poles and structures, including lattice towers.
FEATURES AND BENEFITS • Firmly secures OPGW to poles and structures without compromising OPGW integrity • Standard cushion has two grooves to support each OPGW downlead • Made from an all-aluminum alloy that provides an electrical path from the OPGW to the structure for bonding purposes or urethane • Kits can include mounting accessories to secure the downlead cushion to poles (wood, concrete, or metal) or lattice towers
