AFL FAST-SC-MM62.5-6, FASTCONNECT MM 62.5uM SC CONNECTOR, OM1 PK OF 6
Available*
Item # 51687300
Model # FAST-SC-MM-62.5
$73.56
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
CONNECTOR
Fiber Optic Products
Fusion and Mechanical Splicing
Fiber Fusion Splicer
AFL Telecommunications
Fiber Splice On Connectors
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
AFL FAST-SC-MM62.5-6, FASTCONNECT MM 62.5uM SC CONNECTOR, OM1 PK OF 6
AFL FAST-SC-MM62.5-6, FASTCONNECT MM 62.5uM SC CONNECTOR, OM1 PK OF 6
AFL FAST-SC-MM62.5-6 FASTCONNECT MM 62.5uM SC CONNECTOR, OM1 PK OF 6

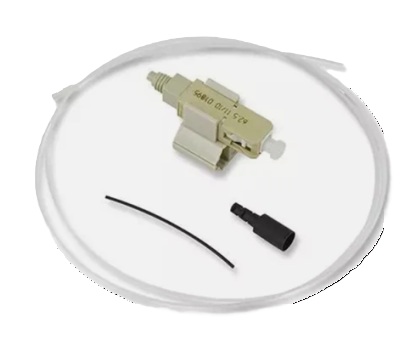

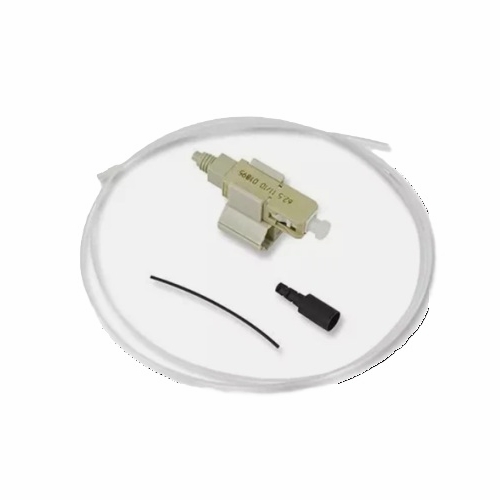

The AFL FAST-SC-MM62.5-6 FASTConnect® SC connector, with a pre-stubbed, factory pre-polished ferrule and BEIGE housing, is designed to be used with multimode 62.5µm OM1 fiber optic cable. It features a precision mechanical alignment, as well as low loss termination (insertion loss: 0.1dB average, 0.5dB maximum, and return loss: -25dB average, -20dB maximum). The connector has a factory-installed wedge clip, which is removed and discarded upon completion of the termination. Fiber can be reinserted up to three times. Use a VFI to test (pass/fail) for proper installation.
The FAST-SC-MM62.5-6 field-installable connectors are supplied 6 pieces per package. They are TIA/EIA-568-C.3 and TIA/EIA-604 FOCIS compliant. No epoxy required.
AFL FAST-SC-MM62.5-6, FASTCONNECT MM 62.5uM SC CONNECTOR, OM1 PK OF 6
AFL FAST-SC-MM62.5-6 FASTCONNECT MM 62.5uM SC CONNECTOR, OM1 PK OF 6
The AFL FAST-SC-MM62.5-6 FASTConnect® SC connector, with a pre-stubbed, factory pre-polished ferrule and BEIGE housing, is designed to be used with multimode 62.5µm OM1 fiber optic cable. It features a precision mechanical alignment, as well as low loss termination (insertion loss: 0.1dB average, 0.5dB maximum, and return loss: -25dB average, -20dB maximum). The connector has a factory-installed wedge clip, which is removed and discarded upon completion of the termination. Fiber can be reinserted up to three times. Use a VFI to test (pass/fail) for proper installation.
The FAST-SC-MM62.5-6 field-installable connectors are supplied 6 pieces per package. They are TIA/EIA-568-C.3 and TIA/EIA-604 FOCIS compliant. No epoxy required.
