TYCO TDUX-35-KIT-ENGL 896761-000 1.0 INCH INFLATABLE DUCT SEAL **order in quantities of 10***
Available*
Item # 52057055
Model # TDUX-35-KIT-ENG
$22.23
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
TYCO TELECOMMUNICATIONS (JACK MOON) TDUX-35-KIT-ENGL 896761-000 1.0 INCH INFLATABLE DUCT SEAL minimum order 10

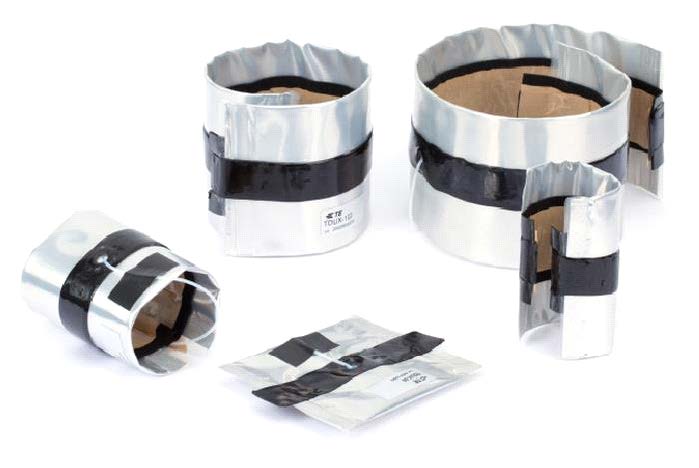

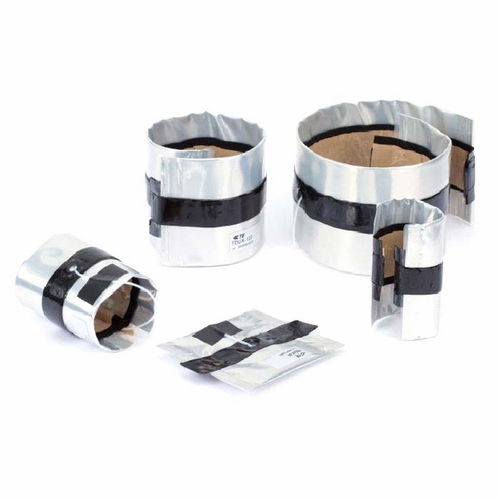

TDUX - Inflatable Duct Seal, Size 100 l Flexible and reliable wraparound inflatable sealing system for cables l Fast and easy to install or remove, even when water is flowing out of the duct l Independent of duct or cable ovality l Water and airtight up to 50 kPa (7 psi) l Environmentaly friendly, non-toxic and resistant to chemicals
Regulatory Compliance/Certifications
Product Classification Product Type Cable duct seal Product Series TDUX Regional Availability EMEA
Dimensions Cable Diameter, maximum 90.00 mm Cable Diameter, minimum 45.00 mm Conduit Inner Diameter, maximum 110.00 mm Conduit Inner Diameter, minimum 75.00 mm Length 482.00 mm Width 120.00 mm
Environmental Specifications Installation Temperature -5 °C to +40 °C (+23 °F to +104 °F)
General Specifications Includes Inflatable bladder with sealing mechanism
Ordering Note When sealing more than two cables in a duct, seperate orderable TDUX-CL clips are to be used Package Quantity 10
RoHS 2011/65/EU Compliant
TDUX - Inflatable Duct Seal, Size 100 l Flexible and reliable wraparound inflatable sealing system for cables l Fast and easy to install or remove, even when water is flowing out of the duct l Independent of duct or cable ovality l Water and airtight up to 50 kPa (7 psi) l Environmentaly friendly, non-toxic and resistant to chemicals
Regulatory Compliance/Certifications
Product Classification Product Type Cable duct seal Product Series TDUX Regional Availability EMEA
Dimensions Cable Diameter, maximum 90.00 mm Cable Diameter, minimum 45.00 mm Conduit Inner Diameter, maximum 110.00 mm Conduit Inner Diameter, minimum 75.00 mm Length 482.00 mm Width 120.00 mm
Environmental Specifications Installation Temperature -5 °C to +40 °C (+23 °F to +104 °F)
General Specifications Includes Inflatable bladder with sealing mechanism
Ordering Note When sealing more than two cables in a duct, seperate orderable TDUX-CL clips are to be used Package Quantity 10
RoHS 2011/65/EU Compliant
