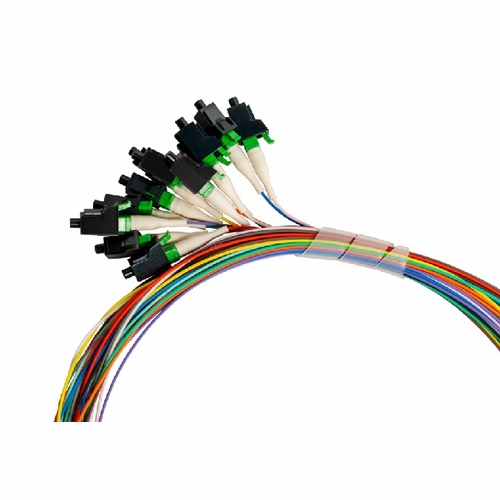

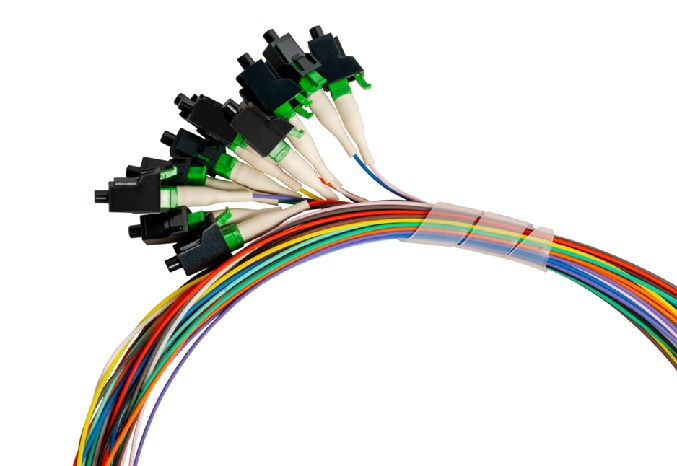

JONARD SPT-LCA3/12 Pigtail, 3m, LC/APC, G657A1, Pack of 12 Colored Fibers 810132439773
Available*
Item # 52743000
Model # SPT-LCA3/12
$37.80
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
PATCHCORD
Fiber Optic Products
Fiber Optic Infrastructure
Fiber Patch Cables
Schultz Communications Inc
Fiber Single Mode
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
JONARD SPT-LCA3/12 Pigtail, 3m, LC/APC, G657A1, Pack of 12 Colored Fibers 810132439773
JONARD SPT-LCA3/12 Pigtail, 3m, LC/APC, G657A1, Pack of 12 Colored Fibers 810132439773
JONARD SPT-LCA3/12 Pigtail, 3m, LC/APC, G657A1, Pack of 12 Colored Fibers - UPC 810132439773
Jonard Tools’ 12-Fiber LC/APC Pigtail Pack. - Each pack includes twelve color-coded fibers with precision-polished LC/APC connectors, allowing quick identification, fusion splicing, and deployment in high-density environments. - Manufactured with 900 µm tight-buffered fibers, these pigtails provide durability, flexibility, and consistent optical performance. Every fiber is factory-tested for insertion and return loss, ensuring reliable connections in single-mode applications such as FTTH, data centers, and telecommunications networks. - Whether you’re building out a patch panel or performing mass fusion splicing, this 12-fiber pigtail pack delivers professional-grade quality and long-term dependability you can trust.
- Includes twelve color-coded pigtails following TIA-598-C standard (Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua) - Zirconia ceramic ferrules provide ultra-low insertion loss and high repeatability - 900 µm tight-buffered construction ideal for splicing into distribution cables or patch panels - Each fiber tested for = 0.20 dB insertion loss and = 50 dB return loss - High-strength fiber coating provides excellent flexibility and strain relief during routing and installation
Specifications - Connector Type LC/APC - Fiber Type G657A1 (OS2) - Length 3 m (9.84 ft) - Buffer Diameter 900 µm - Insertion Loss = 0.20 dB - Return Loss = 50 dB - Pack Size 12 - Dimensions 8 in x 7 in x 0 in (20.32 cm x 17.78 cm x 0 cm) - Weight 0.1 lb (45.4 g) - UPC # 810132439773
JONARD SPT-LCA3/12 Pigtail, 3m, LC/APC, G657A1, Pack of 12 Colored Fibers 810132439773
JONARD SPT-LCA3/12 Pigtail, 3m, LC/APC, G657A1, Pack of 12 Colored Fibers - UPC 810132439773
Jonard Tools’ 12-Fiber LC/APC Pigtail Pack. - Each pack includes twelve color-coded fibers with precision-polished LC/APC connectors, allowing quick identification, fusion splicing, and deployment in high-density environments. - Manufactured with 900 µm tight-buffered fibers, these pigtails provide durability, flexibility, and consistent optical performance. Every fiber is factory-tested for insertion and return loss, ensuring reliable connections in single-mode applications such as FTTH, data centers, and telecommunications networks. - Whether you’re building out a patch panel or performing mass fusion splicing, this 12-fiber pigtail pack delivers professional-grade quality and long-term dependability you can trust.
- Includes twelve color-coded pigtails following TIA-598-C standard (Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua) - Zirconia ceramic ferrules provide ultra-low insertion loss and high repeatability - 900 µm tight-buffered construction ideal for splicing into distribution cables or patch panels - Each fiber tested for = 0.20 dB insertion loss and = 50 dB return loss - High-strength fiber coating provides excellent flexibility and strain relief during routing and installation
Specifications - Connector Type LC/APC - Fiber Type G657A1 (OS2) - Length 3 m (9.84 ft) - Buffer Diameter 900 µm - Insertion Loss = 0.20 dB - Return Loss = 50 dB - Pack Size 12 - Dimensions 8 in x 7 in x 0 in (20.32 cm x 17.78 cm x 0 cm) - Weight 0.1 lb (45.4 g) - UPC # 810132439773
