PLP SFD-1520-B SWAN DIVERTER .600-.770 BLACK NEW
Available*
Item # 52932245
Model # SFD-1520-B
$31.59
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
ELECTRIC
Material and Supplies
Hardware- Screws- Bolts
Wildlife Protection
Preformed Line Products
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

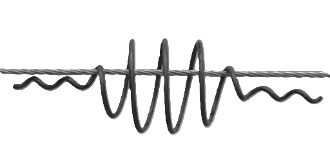

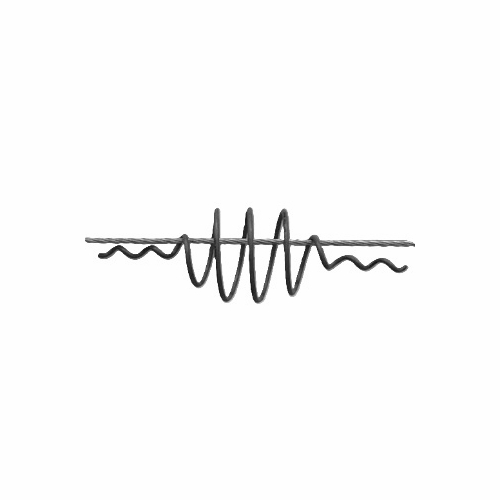

PLP SFD-1520-B SWAN DIVERTER .600-.770 BLACK NEW
PLP SFD-1520-B SWAN DIVERTER .600-.770 BLACK NEW
P/N SFD-1520-B Swan Diverter .600-.770 Overall Length 38 inches Diverter Coil Diameter 8.0 inches PVC Rod Diameter 0.500 inches Weight 1.40 lb Black semi-conductive layer for applications at 230 kV.
The SWAN-FLIGHT Diverter (SFD) is designed for use on conductor/strand to create greater visibility for avian fl ight paths on overhead lines and tower down guys. For construction up to 230 kV, the SFD can be applied to phase conductors (bare or jacketed). For EHV, it is typically installed on the shield wire. The diverter section increases the visible profi le of the cable to a degree necessary to alert wildlife, but avoids an undesirably bulky outline and increased loading on the line
FEATURES AND BENEFITS • Increases visibility where large, slow-moving bird fl ight paths are present • Lightweight, economical, and easily applied • Positive grip prevents product from moving along the span • Long service life without deterioration of material properties • Minimal wind resistance • Manufactured from gray or yellow rigid, high-impact PVC with UV protection • Applicable for voltages below 230 kV • Semi-conductive version available for 230 kV applications • Meets UL 94 V-0 fl ammability requirements
PLP SFD-1520-B SWAN DIVERTER .600-.770 BLACK NEW
P/N SFD-1520-B Swan Diverter .600-.770 Overall Length 38 inches Diverter Coil Diameter 8.0 inches PVC Rod Diameter 0.500 inches Weight 1.40 lb Black semi-conductive layer for applications at 230 kV.
The SWAN-FLIGHT Diverter (SFD) is designed for use on conductor/strand to create greater visibility for avian fl ight paths on overhead lines and tower down guys. For construction up to 230 kV, the SFD can be applied to phase conductors (bare or jacketed). For EHV, it is typically installed on the shield wire. The diverter section increases the visible profi le of the cable to a degree necessary to alert wildlife, but avoids an undesirably bulky outline and increased loading on the line
FEATURES AND BENEFITS • Increases visibility where large, slow-moving bird fl ight paths are present • Lightweight, economical, and easily applied • Positive grip prevents product from moving along the span • Long service life without deterioration of material properties • Minimal wind resistance • Manufactured from gray or yellow rigid, high-impact PVC with UV protection • Applicable for voltages below 230 kV • Semi-conductive version available for 230 kV applications • Meets UL 94 V-0 fl ammability requirements
