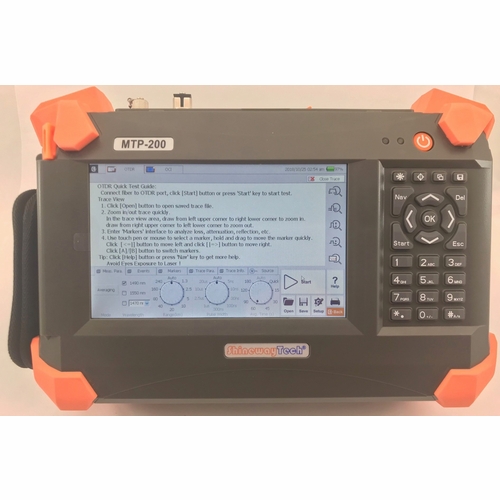

Shi Aytech Mtp-200-Cwdm-8 1470/1490/1510/1530/1550/1570/1590/1610 Otdr
Available*
Item # 53488134
Model # MTP-200-CWDM-8
$12,000.00
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Otdr
Fiber Optic Products
OTDR- Power Meter- Light Source- Idenitifiers- VFL
Fiber OTDR- OSA
Shineway Tech
Fiber OTDR CWDM- DWDM
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
Shinewaytech
Hand-Held High Performance Otdr
Up To 18 Cwdm Wavelengths In One Otdr
Multi-Function And High Performance Otdr Testing ΠUp To 18 Cwdm Wavelengths, Customizable ΠDynamic Range Up To 36Db ΠShort Zone: Edz 1M, Adz 4M ΠAuto/Manual Test And Analysis ΠMulti-Wavelength Testing ΠFault Locating, Fiber Length/Loss/Return Loss Measurement, Connector/ Splice/ Splitter/ Macro Bend/Fiber-End Detection ΠGr-196-Core (.Sor) File Format ΠSor And Jpg File Format ΠFlexible File Naming ΠLinkimage Smart Graphic Analysis
Optimized Platform Performance ΠLightweight, 2.1Kg Π7 Inch Touch Screen ΠWindows User Interface For Easy Operation ΠDamp-Dust-Shock Proof ΠMulti Traces Analysis ΠSingle/Multi Traces Printing In One Report ΠBatch Editing And Printing ΠBidirectional Traces Analysis ΠCsv Report Formats ΠRemote Control Function Π10 Hours Continuous Operation ΠDirect Printing Function(Compatible With Pcl Printers) ΠRemote/Local Control By Pc
Mtp Suite Pc Software ΠMulti Traces Analysis ΠSingle/Multi Traces Printing In One Report ΠBatch Editing And Printing ΠBidirectional Traces Analysis ΠCsv Report Formats ΠRemote Control Function
Network Remote Control Module (Optional) ΠConvenient Networking ΠRemote Control Instrument Operation
Optical Connector Inspector Module (Optional!!!) ΠFocusing Knob For Fast Focus ΠEye-Safe And Clear Video Viewing ΠInterchangeable Connector Tips
Applications ΠInstallation Stage ΠService Deployment ΠMaintenance Stage
Mtp-200 Series Display 7 Inch Tft Touch Screen (800×480) Connectivity Usb×2; 10/100Mbit/S Rj-45×1 Memory 2Gb Power Supply Rechargeable Li-Ion Battery/Ac Adapter Battery Life 10 Hours Continuous Operation Working Temp. -20°C - 50°C Storage Temp. -40°C - 60°C Humidity 0 - 95% (Non-Condensing) Weight 2.1Kg Dimensions (L×W×H ) 290×175×75Mm
Otdr Module Wavelength(1) Mtp-200-Cwdm-4A 1271/1291/1311/1331 Mtp-200-Cwdm-4B 1351/1371/1391/1411 Mtp-200-Cwdm-4C 1351/1411/1431/1451 Mtp-200-Cwdm-4D 1431/1451/1471/1491 Mtp-200-Cwdm-4E 1471/1491/1511/1531 Mtp-200-Cwdm-4F 1511/1531/1551/1571 Mtp-200-Cwdm-4G 1551/1571/1591/1611 Mtp-200-Cwdm-8A 1471/1491/1511/1531/1551/1571/1591/1611 Mtp-200-Cwdm-16 1271/1291/1311/1331/1351/1411/1431/1451/1471/1491/1511/1531/1551/1571/1591/1611 Mtp-200-Cwdm-18 1271/1291/1311/1331/1351/1371/1391/1411/1431/1451/1471/1491/1511/1531/1551/1571/1591/1611 Dynamic Range(2) 36Db Dead Zone(3) Edz: 1M, Adz: 4M Selectable Range Sm: 0.3, 1.3, 2.5, 5, 10, 20, 40, 80, 160, 240Km Pulse Width Sm: 5Ns,10Ns, 30Ns, 100Ns, 300Ns,1?ês, 2.5?ês,10?ês, 20?ês Sampling Points 256000 Averaging Time Quick, 15S, 30S, 45S, 60S, 90S, 120S, 180S Connector Fc/Pc (Interchangeable Sc, St And Lc ) Distance Accuracy }(0.75M + 5X10-5 X Distance +Sampling Resolution) Attenuation Accuracy }0.05 Db/Db Reflection Accuracy }4 Db Visible Laser Source Output Power: . -3Dbm Mod Frequency: 1Hz Detecting Range: 5Km
Mci100 Optical Connector Inspector Module (Optional) Field Of View 400?êm~300?êm Resolution .1.5?êm Focusing Manual Focus
Microscope Dimensions O32~175Mm
Notes (1) Wavelength Is Open For Customization (2) Dynamic Range Measurement At 20Ìs Pulse Width And 180S Averaging Time; (3) Dead Zone Measurement At 0.6Km And Reflection <-45Db; Edz Measurement At 5Ns, Adz Measurement At 10Ns.
Standard Package Mtp-200 Host, Lithium Battery, Cd, Software, Data Cable, Carrying Case, Warranty Card, Calibration Certificate
Optional Module: Mci100: Optical Connector Inspector Module Rc100: Remote Control Module
Up To 18 Cwdm Wavelengths In One Otdr
Multi-Function And High Performance Otdr Testing ΠUp To 18 Cwdm Wavelengths, Customizable ΠDynamic Range Up To 36Db ΠShort Zone: Edz 1M, Adz 4M ΠAuto/Manual Test And Analysis ΠMulti-Wavelength Testing ΠFault Locating, Fiber Length/Loss/Return Loss Measurement, Connector/ Splice/ Splitter/ Macro Bend/Fiber-End Detection ΠGr-196-Core (.Sor) File Format ΠSor And Jpg File Format ΠFlexible File Naming ΠLinkimage Smart Graphic Analysis
Optimized Platform Performance ΠLightweight, 2.1Kg Π7 Inch Touch Screen ΠWindows User Interface For Easy Operation ΠDamp-Dust-Shock Proof ΠMulti Traces Analysis ΠSingle/Multi Traces Printing In One Report ΠBatch Editing And Printing ΠBidirectional Traces Analysis ΠCsv Report Formats ΠRemote Control Function Π10 Hours Continuous Operation ΠDirect Printing Function(Compatible With Pcl Printers) ΠRemote/Local Control By Pc
Mtp Suite Pc Software ΠMulti Traces Analysis ΠSingle/Multi Traces Printing In One Report ΠBatch Editing And Printing ΠBidirectional Traces Analysis ΠCsv Report Formats ΠRemote Control Function
Network Remote Control Module (Optional) ΠConvenient Networking ΠRemote Control Instrument Operation
Optical Connector Inspector Module (Optional!!!) ΠFocusing Knob For Fast Focus ΠEye-Safe And Clear Video Viewing ΠInterchangeable Connector Tips
Applications ΠInstallation Stage ΠService Deployment ΠMaintenance Stage
Mtp-200 Series Display 7 Inch Tft Touch Screen (800×480) Connectivity Usb×2; 10/100Mbit/S Rj-45×1 Memory 2Gb Power Supply Rechargeable Li-Ion Battery/Ac Adapter Battery Life 10 Hours Continuous Operation Working Temp. -20°C - 50°C Storage Temp. -40°C - 60°C Humidity 0 - 95% (Non-Condensing) Weight 2.1Kg Dimensions (L×W×H ) 290×175×75Mm
Otdr Module Wavelength(1) Mtp-200-Cwdm-4A 1271/1291/1311/1331 Mtp-200-Cwdm-4B 1351/1371/1391/1411 Mtp-200-Cwdm-4C 1351/1411/1431/1451 Mtp-200-Cwdm-4D 1431/1451/1471/1491 Mtp-200-Cwdm-4E 1471/1491/1511/1531 Mtp-200-Cwdm-4F 1511/1531/1551/1571 Mtp-200-Cwdm-4G 1551/1571/1591/1611 Mtp-200-Cwdm-8A 1471/1491/1511/1531/1551/1571/1591/1611 Mtp-200-Cwdm-16 1271/1291/1311/1331/1351/1411/1431/1451/1471/1491/1511/1531/1551/1571/1591/1611 Mtp-200-Cwdm-18 1271/1291/1311/1331/1351/1371/1391/1411/1431/1451/1471/1491/1511/1531/1551/1571/1591/1611 Dynamic Range(2) 36Db Dead Zone(3) Edz: 1M, Adz: 4M Selectable Range Sm: 0.3, 1.3, 2.5, 5, 10, 20, 40, 80, 160, 240Km Pulse Width Sm: 5Ns,10Ns, 30Ns, 100Ns, 300Ns,1?ês, 2.5?ês,10?ês, 20?ês Sampling Points 256000 Averaging Time Quick, 15S, 30S, 45S, 60S, 90S, 120S, 180S Connector Fc/Pc (Interchangeable Sc, St And Lc ) Distance Accuracy }(0.75M + 5X10-5 X Distance +Sampling Resolution) Attenuation Accuracy }0.05 Db/Db Reflection Accuracy }4 Db Visible Laser Source Output Power: . -3Dbm Mod Frequency: 1Hz Detecting Range: 5Km
Mci100 Optical Connector Inspector Module (Optional) Field Of View 400?êm~300?êm Resolution .1.5?êm Focusing Manual Focus
Microscope Dimensions O32~175Mm
Notes (1) Wavelength Is Open For Customization (2) Dynamic Range Measurement At 20Ìs Pulse Width And 180S Averaging Time; (3) Dead Zone Measurement At 0.6Km And Reflection <-45Db; Edz Measurement At 5Ns, Adz Measurement At 10Ns.
Standard Package Mtp-200 Host, Lithium Battery, Cd, Software, Data Cable, Carrying Case, Warranty Card, Calibration Certificate
Optional Module: Mci100: Optical Connector Inspector Module Rc100: Remote Control Module
