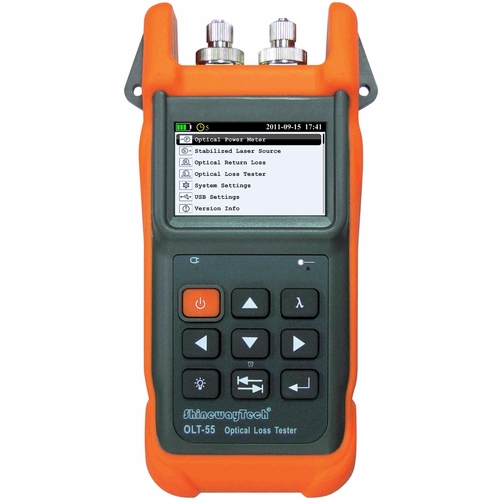

SHI AYTECH OLT-55A-H INTELLIGENT OPTICAL LOSS TESTER 1310/1550 SEE NOTE
Available*
Item # 53488200
Model # OLT-55A-H
$1,100.00
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
ORLT
Fiber Optic Products
OTDR- Power Meter- Light Source- Idenitifiers- VFL
Fiber OTDR- OSA
Shineway Tech
Fiber - Optic Loss Test Set
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

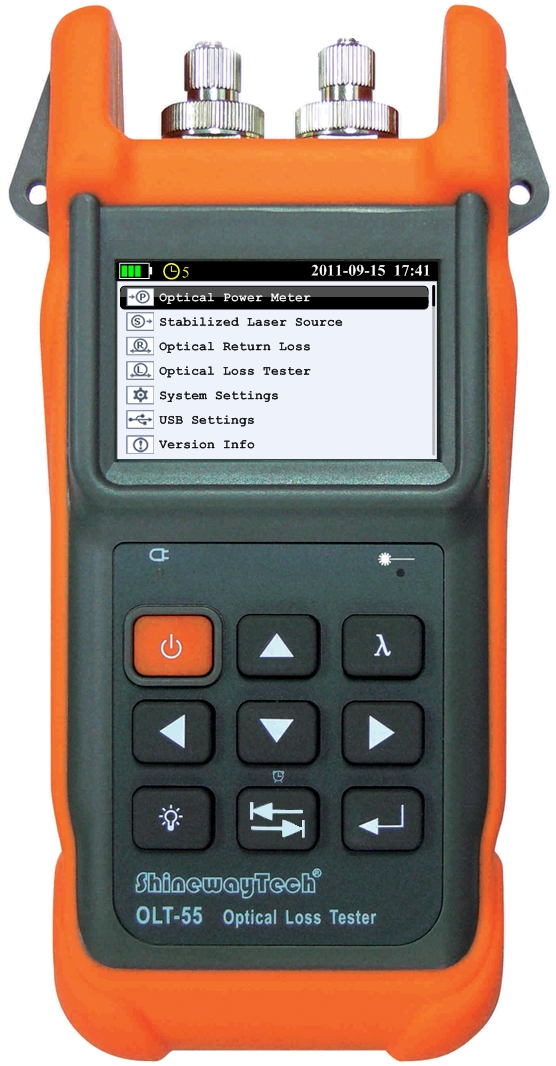

SHINEWAYTECH OLT-55A-H/SC/APC INTELLIGENT OPTICAL LOSS TESTER 1310/1550 NEW
OLT-55 Intelligent Optical Loss Tester User’s Manual
All-in-one: SLS + OPM + OLT + ORL + Length test
Optical power monitoring (Auto power trace)
Bidirectional loss test on single fiber
ORL test
Pass/Fail assessment
Automatic wavelength identification/switch (AutoID)
Remote reference value setting
Internal clock & fiber S/N editable
1000 test records (CSV) storage & management
Data transfer to PC via USB (Driver-free)
Auto test records save in local unit/remote unit/both units
USB power charging
Over 35 hours continuous operation
Multilanguage support
No warm-up, quick start
High resolution color LCD
Pocketsize, lightweight and easy-to-use
OLT-55 Intelligent Optical Loss Tester is an all-in-one loss tester integrated with Stabilized Laser Source, Optical Power Meter, Optical Loss Tester, ORL Tester and Length Testing functions. It can perform automatic bidirectional loss test on single fiber with Pass/Fail assessment. With rich functions, flexible configuration and excellent user friendly design, OLT-55 is the ideal optical loss tester to completely evaluate the optical fiber link condition in FTTx, LAN and CATV network.
Intelligent Optical Loss Tester NEW Colorful display, Laser Source: 1310/1550nm, . -4dBmPower Meter: 850,1300,1310,1490,1550,1625nm, -50~ +27dBmBidirectional Loss Testing, Auto Wavelength Recognition, Rechargeable battery. USB port, PC software, Power Monitoring, Optional return loss test function.
with option R ORL range 0-60dB MUST SPECIFY APC OR UPC WHEN ORDERING
OLT-55 Intelligent Optical Loss Tester User’s Manual
All-in-one: SLS + OPM + OLT + ORL + Length test
Optical power monitoring (Auto power trace)
Bidirectional loss test on single fiber
ORL test
Pass/Fail assessment
Automatic wavelength identification/switch (AutoID)
Remote reference value setting
Internal clock & fiber S/N editable
1000 test records (CSV) storage & management
Data transfer to PC via USB (Driver-free)
Auto test records save in local unit/remote unit/both units
USB power charging
Over 35 hours continuous operation
Multilanguage support
No warm-up, quick start
High resolution color LCD
Pocketsize, lightweight and easy-to-use
OLT-55 Intelligent Optical Loss Tester is an all-in-one loss tester integrated with Stabilized Laser Source, Optical Power Meter, Optical Loss Tester, ORL Tester and Length Testing functions. It can perform automatic bidirectional loss test on single fiber with Pass/Fail assessment. With rich functions, flexible configuration and excellent user friendly design, OLT-55 is the ideal optical loss tester to completely evaluate the optical fiber link condition in FTTx, LAN and CATV network.
Intelligent Optical Loss Tester NEW Colorful display, Laser Source: 1310/1550nm, . -4dBmPower Meter: 850,1300,1310,1490,1550,1625nm, -50~ +27dBmBidirectional Loss Testing, Auto Wavelength Recognition, Rechargeable battery. USB port, PC software, Power Monitoring, Optional return loss test function.
with option R ORL range 0-60dB MUST SPECIFY APC OR UPC WHEN ORDERING
