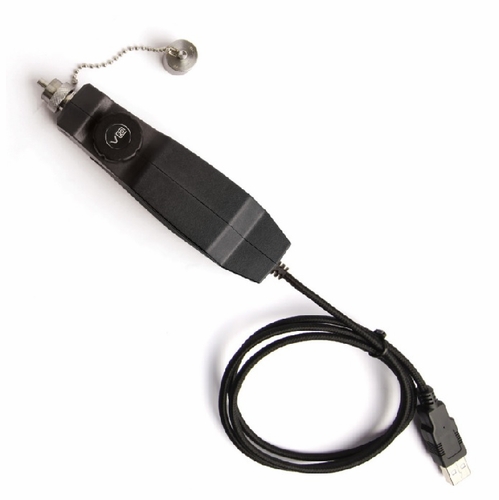

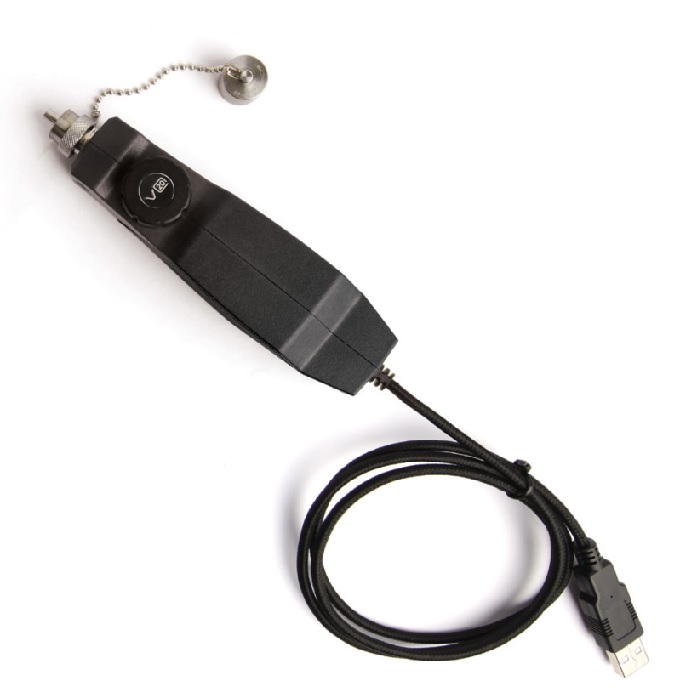

INNO V20 Fiber Optic Microscope with Tips SC, ST, LC, UPC /APC for INNO OTDR NEW
INNO V20 Fiber Optic Microscope with Tips SC, ST, LC, UPC /APC for INNO OTDR NEW
Item # V20 INNO Fiber Optic Microscope with Tips SC, ST, LC, UPC /APC for INNO OTDR NEW
This is a replacemnt scope for INNO otdr's and can be used with a computer with the software from the manufacturer's website - it is a free download.
The Fiber Microscope is chiefly used in checking if the fiber end-face is clean. With the ability to display a clear image and the double amplification function, the V20 is able to analyze the cleanliness of the fiber end-face.
Technical Specifications Resolution 3.2µm Image sensor 640 x 480 (VGA) Visual test < 5µm View angle 200µm*200µm of high magnification / 360µm*360µm of low magnification Light source Blue LED luminance technique Coaxial light source Digital zoom 3 grades Connector USB 2.0 Operating / Storage temperature -10°C to 50°C / -40°C to 70°C Patchcord Tip Adapters 2.5mm (UPC, APC), 1.25mm (UPC, APC)
Size and Weight Height: 1.33 inches (34 mm) Width: 5.9 inches (150 mm) Depth: 1.37 inches (35 mm) Weight: 0.37 pounds (168 grams)
INNO V20 Fiber Optic Microscope with Tips SC, ST, LC, UPC /APC for INNO OTDR NEW
Item # V20 INNO Fiber Optic Microscope with Tips SC, ST, LC, UPC /APC for INNO OTDR NEW
This is a replacemnt scope for INNO otdr's and can be used with a computer with the software from the manufacturer's website - it is a free download.
The Fiber Microscope is chiefly used in checking if the fiber end-face is clean. With the ability to display a clear image and the double amplification function, the V20 is able to analyze the cleanliness of the fiber end-face.
Technical Specifications Resolution 3.2µm Image sensor 640 x 480 (VGA) Visual test < 5µm View angle 200µm*200µm of high magnification / 360µm*360µm of low magnification Light source Blue LED luminance technique Coaxial light source Digital zoom 3 grades Connector USB 2.0 Operating / Storage temperature -10°C to 50°C / -40°C to 70°C Patchcord Tip Adapters 2.5mm (UPC, APC), 1.25mm (UPC, APC)
Size and Weight Height: 1.33 inches (34 mm) Width: 5.9 inches (150 mm) Depth: 1.37 inches (35 mm) Weight: 0.37 pounds (168 grams)
