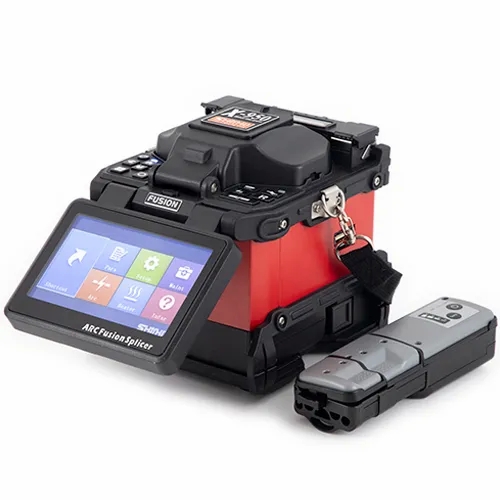

SHINHO X950 Ribbon Fiber Fusion Splicer Kit with X50BR cleaver & X18 Thermal Stripper
Available*
Item # 53760000
Model # X950
$7,850.00
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
FUSION SPL
Fiber Optic Products
Fusion and Mechanical Splicing
Fiber Fusion Splicer
Shinho America Inc
Fusion Splicers
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
SHINHO X950 Ribbon Fiber Fusion Splicer Kit with X50BR cleaver & X18 Thermal Stripper
Ribbon Fiber Fusion Splicer X950 Ribbon fiber fusion splicer for single fiber and 2-12 cores fibers Accurate fiber alignment, low splicing loss Robust industrial design, easy to operate
New Model Ribbon Fiber Fusion Splicer X 950 X-950 Ribbon fiber fusion splicer is with the latest accurate fiber alignment technology, it has very stable performance and low fusion loss, it is suitable for different fiber optical projects and various environmental conditions.
Features Applicable to 2-12 ribbon fiber splicing Accurate alignment, world standard fusion loss 20s splicing time, heating 1-2/4-12 fiber ribbon 26s/40s Applicable to different types fibers (SM/MM/DS/NZDS) Ruggedized body, waterproof, anti-dust, anti-shock Pluggable Li-battery, support separate charging Easy to maintenance, easy to replace the electrodes USB port for software upgrading, records exporting Support 4000/100 groups fusion records/fusion images Comply with CE/Rohs international standard
Specifications Alignment method Clad to clad Applicable fiber SM(G.652),MM(G.651),DS(G.653),NZDS(G.655) Fiber cores quantity Single core,2-12 cores Coating diameter 250~400µm Typical splice loss SM: 0.05dB;MM: 0.02dB;DS: 0.08dB;NZDS: 0.08dB Return loss >60dB Splicing program 40 groups Operation mode Manual/ Automatic Auto- heating Available Typical splice time 20 seconds Typical heating time 1-2 cores 26 seconds,4-12 cores 40 seconds Fiber magnification 25X Viewing display Dual high sensitivity camera, 5 inch 800*480 LCD Monitor Data storage 4000 groups data records and 100 group images Loss evaluation Available Tension test 1.8~2.2N Interface GUI menu interface, easy for operation Battery capacity 5200mAh Li-battery, 150 cycles splicing and heating Power supply Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V Electrode life More than 3000 ARC discharges, easy to replace Terminals USB 2.0 port, for software upgrading, records exporting Operating condition Altitude:0-5000m,Humidity:0-95%,Temperature:-10?~+50?;Wind:max 15m/s?:??15m/s Dimension/Weight 155mm (L)×144mm (W)×155mm (H) /2.3kg (incuding battery)
Standard Accessories NO. ITEM 1 Carrying box 2 Fiber cleaver 3 Heating fiber stripper 4 Fiber holder R-12 5 Power cord 6 Adapter 7 Cooling tray 8 User manual (USB) 9 Spare electrodes 10 Cleaning tool kit 11 Strap
Ribbon Fiber Fusion Splicer X950 Ribbon fiber fusion splicer for single fiber and 2-12 cores fibers Accurate fiber alignment, low splicing loss Robust industrial design, easy to operate
New Model Ribbon Fiber Fusion Splicer X 950 X-950 Ribbon fiber fusion splicer is with the latest accurate fiber alignment technology, it has very stable performance and low fusion loss, it is suitable for different fiber optical projects and various environmental conditions.
Features Applicable to 2-12 ribbon fiber splicing Accurate alignment, world standard fusion loss 20s splicing time, heating 1-2/4-12 fiber ribbon 26s/40s Applicable to different types fibers (SM/MM/DS/NZDS) Ruggedized body, waterproof, anti-dust, anti-shock Pluggable Li-battery, support separate charging Easy to maintenance, easy to replace the electrodes USB port for software upgrading, records exporting Support 4000/100 groups fusion records/fusion images Comply with CE/Rohs international standard
Specifications Alignment method Clad to clad Applicable fiber SM(G.652),MM(G.651),DS(G.653),NZDS(G.655) Fiber cores quantity Single core,2-12 cores Coating diameter 250~400µm Typical splice loss SM: 0.05dB;MM: 0.02dB;DS: 0.08dB;NZDS: 0.08dB Return loss >60dB Splicing program 40 groups Operation mode Manual/ Automatic Auto- heating Available Typical splice time 20 seconds Typical heating time 1-2 cores 26 seconds,4-12 cores 40 seconds Fiber magnification 25X Viewing display Dual high sensitivity camera, 5 inch 800*480 LCD Monitor Data storage 4000 groups data records and 100 group images Loss evaluation Available Tension test 1.8~2.2N Interface GUI menu interface, easy for operation Battery capacity 5200mAh Li-battery, 150 cycles splicing and heating Power supply Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V Electrode life More than 3000 ARC discharges, easy to replace Terminals USB 2.0 port, for software upgrading, records exporting Operating condition Altitude:0-5000m,Humidity:0-95%,Temperature:-10?~+50?;Wind:max 15m/s?:??15m/s Dimension/Weight 155mm (L)×144mm (W)×155mm (H) /2.3kg (incuding battery)
Standard Accessories NO. ITEM 1 Carrying box 2 Fiber cleaver 3 Heating fiber stripper 4 Fiber holder R-12 5 Power cord 6 Adapter 7 Cooling tray 8 User manual (USB) 9 Spare electrodes 10 Cleaning tool kit 11 Strap
