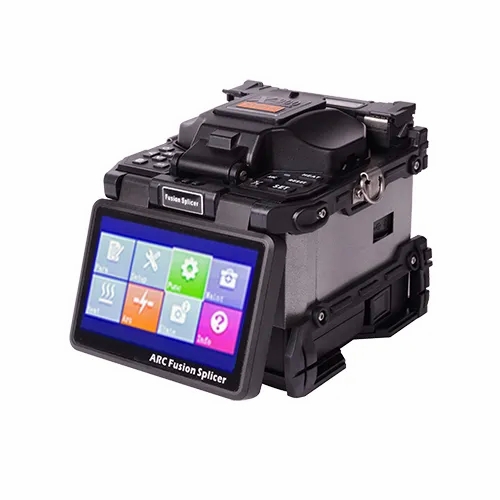

SHINHO X900 Core Alignment Fusion Splicer Kit with X50B cleaver (Touch Screen Version)
Available*
Item # 53760010
Model # X900
$3,900.00
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
FUSION SPL
Fiber Optic Products
Fusion and Mechanical Splicing
Fiber Fusion Splicer
Shinho America Inc
Fusion Splicers
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
SHINHO X900 Core Alignment Fusion Splicer Kit with X50B cleaver(Touch Screen Version)
Core Alignment Fusion Splicer X900 with 6 Motors Metal Housing Body and Cover with Protection bumpers Six motors fusion splicer, real core to core alignment technology. 6s splicing, 18s heating, identify fiber types automatically. Used for WAN/ MAN/ Telecommunication projects.
Features 1s boot up, 6s splicing, 18s heating Fiber type identification automatically Real-time ARC calibration automatically Inductive automatic heater, separate charging battery Industrial quad-core CPU, Japan imported core parts
Specifications Applicable fiber SM(ITU-T G.652),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G.655), EDFA, others(including G.657) Diameter of cladding 80 -150µm Diameter of coating 160-900µm Typical splice loss SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB Return loss > 60dB Fibe cleaved length 5-16mm ( coating diameter < 250um), 16mm (coating diameter:250-1000um) Splicing program 40 groups Operate mode Automatic/Manual Auto-heating Available Typical splicing time 6 seconds Typical heating time 18 seconds for 60mm and 40mm shrinkable sleeves Fiber magnification 250X (X or Y view), 125X (X and Y view) Display screen 2 CMOS cameras, 5.0 inch color LCD monitor Records storage 5000 groups data and 100 groups image Loss evaluation Available Tension test >2.2N Interface GUI menu interface, easy for operation Battery 5200mAh Li-battery, typical 300 cycles splicing and heating, suppport separating charging, operating time more than 5 hours, discharging time more 8 hours Power supply Adapter, input: AC 220±30V(50/60HZ), output:DC 12±2V Electrodes life More than 5000 ARC discharges, can be replaced conveniently Ternimal USB2.0 port, for uploading splicer results and upgrading software Operating conditions Altitude: 0-5000m, Humidity: 0-95%,Operating Temperature: -25?~+50?, Storage temperature -40?~+80?;Wind speed: Max 15m/s Dimension 156mm(L) * 141mm(W) * 156mm(H) (including rubber armor) Weight 2.45kg (including battery)
SOC holder is an additional charge
