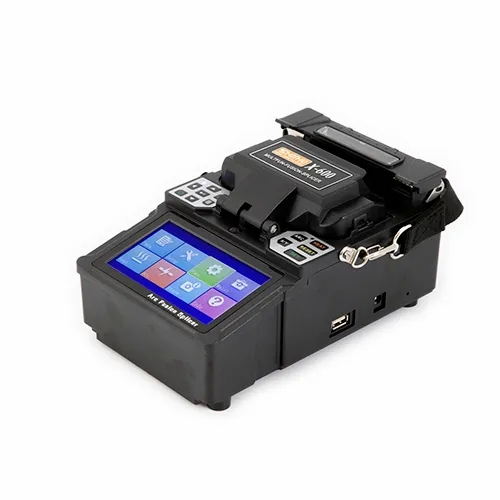

SHINHO X600 Active V-Groove Alignment Fusion Splicer Kit with X50 cleaver (Touch Screen Version)
Available*
Item # 53760030
Model # X600
$2,350.00
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
FUSION SPL
Fiber Optic Products
Fusion and Mechanical Splicing
Fiber Fusion Splicer
Shinho America Inc
Fusion Splicers
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
SHINHO X600 Clad Alignment Fusion Splicer Kit with X50 cleaver(Touch Screen Version)
4 Motor Handheld FTTH Clad Alingment Fusion Splicer X600 Four motors active V-groove design. Best choice for FTTx/FTTH projects. Small and light,easy for carrying and operating.
Handheld FTTH Fiber Fusion Splicer X 600
X-600 Fiber fusion splicer is a 4-motor fusion splicer with active V-groove design, it could adjust the fiber position more flexible and accurate, and it has very stable performance even in harsh environment. It is specially designed for FTTx/FTTH projects, it could also be used in heights conveniently
Features
1s boot up, 7s splicing, 20s heating Specially designed for FTTH projects 4 motors active V-groove design Small size and light weight, easy to carry
Specifications
Applicable fiber SM(ITU-T G.652),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G.655),EDFA, others(including G.657) Diameter of cladding 80 -150µm Diameter of coating 160-900µm Typical splice loss SM: 0.03dB, MM: 0.02dB, DS: 0.05dB, NZDS: 0.05dB Return loss > 60dB Fibe cleaved length 5-16mm ( coating diameter < 250um), 16mm (coating diameter:250-1000um) Splicing program 40 groups Operate mode Automatic/Manual Auto-heating Available Typical splicing time 7 seconds Typical heating time 20 seconds for 60mm and 40mm shrinkable sleeves Fiber magnification 250X (X or Y view), 125X (X and Y view) Display screen 2 CMOS cameras, 4.3 inch color LCD monitor Records storage 5000 groups data and 100 group images Loss evaluation Available Tension test >2.2N Interface GUI menu interface, easy for operation Battery 5200mAh Li-battery, typical 250 cycles splicing and heating, pluggable inner Li-battery Power supply Adapter, input: AC 220±30V(50/60HZ), output:DC 12±2V Electrodes life More than 5000 ARC discharges, can be replaced conveniently Ternimal USB2.0 port, for uploading splicer results and upgrading software Operating conditions Altitude: 0-5000m, Humidity: 0-95%, Operating Temperature: -25?~+50?, Storage Temperature: -40?~+80?,Wind speed: Max 15m/s Dimension 200mm(L) * 123mm(W) * 95mm(H) Weight 1.60kg (including battery)
4 Motor Handheld FTTH Clad Alingment Fusion Splicer X600 Four motors active V-groove design. Best choice for FTTx/FTTH projects. Small and light,easy for carrying and operating.
Handheld FTTH Fiber Fusion Splicer X 600
X-600 Fiber fusion splicer is a 4-motor fusion splicer with active V-groove design, it could adjust the fiber position more flexible and accurate, and it has very stable performance even in harsh environment. It is specially designed for FTTx/FTTH projects, it could also be used in heights conveniently
Features
1s boot up, 7s splicing, 20s heating Specially designed for FTTH projects 4 motors active V-groove design Small size and light weight, easy to carry
Specifications
Applicable fiber SM(ITU-T G.652),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G.655),EDFA, others(including G.657) Diameter of cladding 80 -150µm Diameter of coating 160-900µm Typical splice loss SM: 0.03dB, MM: 0.02dB, DS: 0.05dB, NZDS: 0.05dB Return loss > 60dB Fibe cleaved length 5-16mm ( coating diameter < 250um), 16mm (coating diameter:250-1000um) Splicing program 40 groups Operate mode Automatic/Manual Auto-heating Available Typical splicing time 7 seconds Typical heating time 20 seconds for 60mm and 40mm shrinkable sleeves Fiber magnification 250X (X or Y view), 125X (X and Y view) Display screen 2 CMOS cameras, 4.3 inch color LCD monitor Records storage 5000 groups data and 100 group images Loss evaluation Available Tension test >2.2N Interface GUI menu interface, easy for operation Battery 5200mAh Li-battery, typical 250 cycles splicing and heating, pluggable inner Li-battery Power supply Adapter, input: AC 220±30V(50/60HZ), output:DC 12±2V Electrodes life More than 5000 ARC discharges, can be replaced conveniently Ternimal USB2.0 port, for uploading splicer results and upgrading software Operating conditions Altitude: 0-5000m, Humidity: 0-95%, Operating Temperature: -25?~+50?, Storage Temperature: -40?~+80?,Wind speed: Max 15m/s Dimension 200mm(L) * 123mm(W) * 95mm(H) Weight 1.60kg (including battery)
