OPTIX AMERICA WRX5000-SM1 SM/MM Single and Multimode OTDR
Available*
Item # 53761045
Model # WRX5000-SM1
$6,885.00
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
OTDR
Fiber Optic Products
OTDR- Power Meter- Light Source- Idenitifiers- VFL
Fiber OTDR- OSA
Optix America
Fiber OTDR Multi-Single Mode
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
OPTIX AMERICA WRX5000-SM1 SM/MM Single and Multimode OTDR
OPTIX AMERICA WRX5000-SM1 SM/MM Single and Multimode OTDR
The WRX5000 series single mode + multi mode optical time domain reflectometer (OTDR) is the new generation of intelligent tester for the detection of fiber communications systems and optical network construction for outstanding performance and is specially designed for long haul application. This specially designed unit offers a seven inch capacitive touch screen which integrates nine modules. It has excellent accuracy of short fiber test and automatic test and is equipped with a rich Ethernet test (Ping/PPOE, etc) and supports APP control. The WRX5000 series is used to measure the length, loss, and connection quality of optical fiber used in engineering construction, line maintenance & testing, emergency repair, and the development and production of optical fiber cables.
Features - 7" capacitive touch screen zoom in and out curve - 0.5m Event Dead Zone - Maximum dynamic range 45 dB - Supports SM/MM/SM+MM test - Online detection, effective APD active protection - PON network online test - Supports fast charging protocol and power bank - Ethernet test, supporting Ethernet Remote Test - Integrates OTDR, VFL, LS, OPM, Event Map, End Detection, Optical Loss Test, Ethernet Test, Remote Test, File Management - Small and light - Detection of online test - Caution function - Report printing - Files batch processing - Multiwavelength simultaneous test - Automatic analysis of results - Bluetooth
Weight: 1.2kg (2.65 lbs) Size: 215mmx160mmx50mm (8.47 x 6.3 x 1.97 inches)
Ordering Information Model WRX5000-SM1 Wavelength 850nm/1300nm/1310nm/1550nm Dynamic Range 26dB/28dB/35dB/33dB

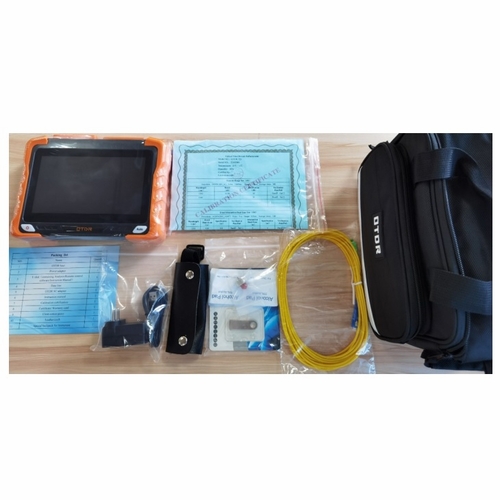

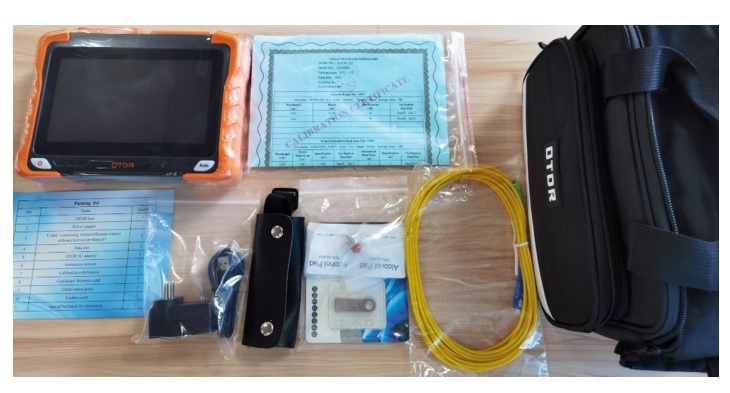

Package includes: Host OTDR AC/DC Power Adapter U Disk (containing analysis software) Data line OTDR SC Adapter OPM SC Adapter Users Manual Calibration certificate Certificate/Warranty Card Clean cotton piece Special backpack for instrument
OPTIX AMERICA WRX5000-SM1 SM/MM Single and Multimode OTDR
The WRX5000 series single mode + multi mode optical time domain reflectometer (OTDR) is the new generation of intelligent tester for the detection of fiber communications systems and optical network construction for outstanding performance and is specially designed for long haul application. This specially designed unit offers a seven inch capacitive touch screen which integrates nine modules. It has excellent accuracy of short fiber test and automatic test and is equipped with a rich Ethernet test (Ping/PPOE, etc) and supports APP control. The WRX5000 series is used to measure the length, loss, and connection quality of optical fiber used in engineering construction, line maintenance & testing, emergency repair, and the development and production of optical fiber cables.
Features - 7" capacitive touch screen zoom in and out curve - 0.5m Event Dead Zone - Maximum dynamic range 45 dB - Supports SM/MM/SM+MM test - Online detection, effective APD active protection - PON network online test - Supports fast charging protocol and power bank - Ethernet test, supporting Ethernet Remote Test - Integrates OTDR, VFL, LS, OPM, Event Map, End Detection, Optical Loss Test, Ethernet Test, Remote Test, File Management - Small and light - Detection of online test - Caution function - Report printing - Files batch processing - Multiwavelength simultaneous test - Automatic analysis of results - Bluetooth
Weight: 1.2kg (2.65 lbs) Size: 215mmx160mmx50mm (8.47 x 6.3 x 1.97 inches)
Ordering Information Model WRX5000-SM1 Wavelength 850nm/1300nm/1310nm/1550nm Dynamic Range 26dB/28dB/35dB/33dB
Package includes: Host OTDR AC/DC Power Adapter U Disk (containing analysis software) Data line OTDR SC Adapter OPM SC Adapter Users Manual Calibration certificate Certificate/Warranty Card Clean cotton piece Special backpack for instrument
