DRAKA COMTEQ 6652 BUFFER TUBE ACCESS TOOL 20021562

DRAKA COMTEQ 6652 BUFFER TUBE ACCESS TOOL 20021562 NEW This revolutionary tool provides quick and easy access to fibers every time, even in the hands of inexperienced installers. The precision-ground blade and special inserts hold the buffer tube firmly in place in the shaving channel, ensuring that only the tube wall is cut, and not the fibers. A recent study conducted by Draka Comteq demonstrated that some commonly-available tools damaged over 97% of the fibers in the buffer tubes they were designed to access. With the Draka Comteq 6652 Buffer Tube Access Tool, there was virtually no fiber damage of any kind. In addition, the planing action of the tool keeps the buffer tube gel contained, providing cleaner access. Inserts support a wide variety of buffer tube sizes and fiber counts. Thick gauge steel alloy construction and a hard shell tote case permit years of continuous field use.

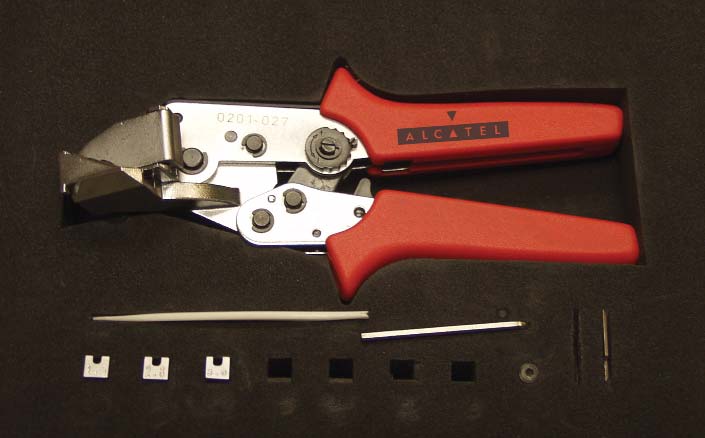

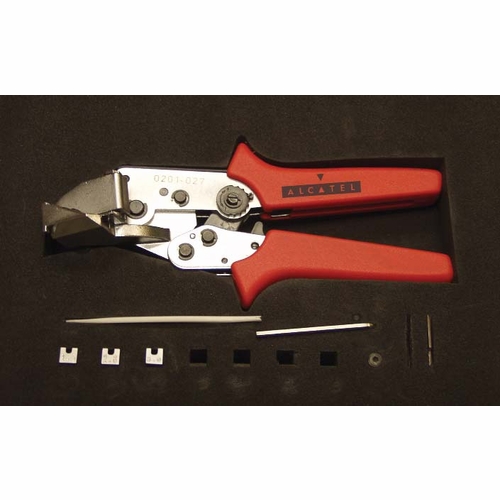

part#20021562 Tool Kit includes carrying case, 1 hand tool, 1 fiber spatula, 1 spare socket head screw, 1 allen wrench, 1 spare blade, 3 inserts*

20021562 Tool Kit includes: 1 Buffer Tube Access Tool with carrying case 3 Inserts (2.5mm / 2.7mm / 3.0mm - common sizes) Spare Parts: 1 spare blade, 1 spare socket head screw Accessories: 1 fiber spatula, 1 allen wrench

part# 20021563 Spare Parts Kit includes 1 fiber spatula, 2 socket head screws, 2 blades

Optional Inserts Insert (Tube Diameter/Fibers per Tube) Cable Description Part Number 1.5 mm (0.06 in)/12 f Microduct Cable 20022437 1.8 mm (0.07 in)/12 f Microduct Cable 20022986 1.9 mm (0.07 in)/12 f Microduct Cable 20021564 2.0 mm (0.08 in)/12 f Microduct Cable 20022885 2.2 mm (0.09 in)/12 f Microduct Cable 20023032 2.4 mm (0.09 in)/24 f Sewer Cable 20021565 2.5 mm (0.10 in)/12 f Loose Tube Cable 20021566 2.6 mm (0.10 in)/6 f and 12 f Loose Tube and ADSS Cables 20021567 2.8 mm (0.11 in)/12 f Loose Tube Cable 20021568 3.0 mm (0.12 in)/12 f Loose Tube Cable 20021569 3.0 mm (0.12 in)/24 f ADSS Cable 20021570 4.3 mm (0.17 in)/24 f Loose Tube Cable (High Count) 20021571

Features Benefits Positive control of cutting depth protects fibers Reduces risk of future fiber breaks caused by static from damage fatigue, handling, or other mechanical forces Precision-machined tube guide channel and blade, Quick and easy to use; needs no adjustments with planing action >Cleaner midspan access

Inserts to support all commonly available buffer Cost savings one tool for multiple cable products tube sizes

Thick gauge steel alloy construction and Reliable and rugged for field use hard shell tote case

Specifications Capability Case Dimensions (H x W x D) Shipping Weight Supports buffer tube sizes from 1.5 mm to 9" x 10.5" x 2" 2 lbs 4.3 mm with 6, 12, and 24 fibers per tube (229 mm x 267 mm x 51 mm) (0.9 kg)

this item is 20021562
