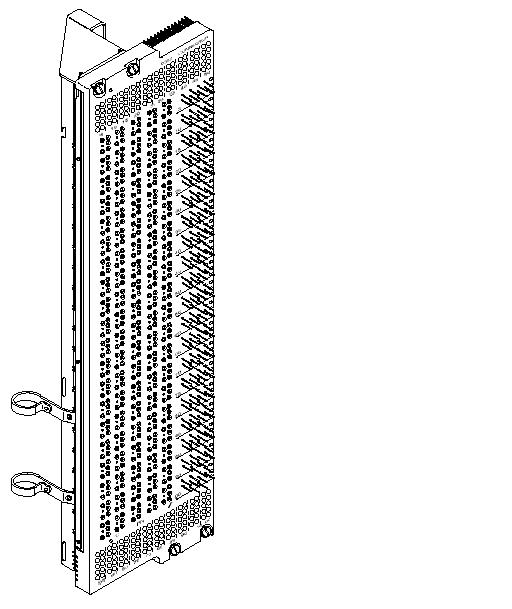

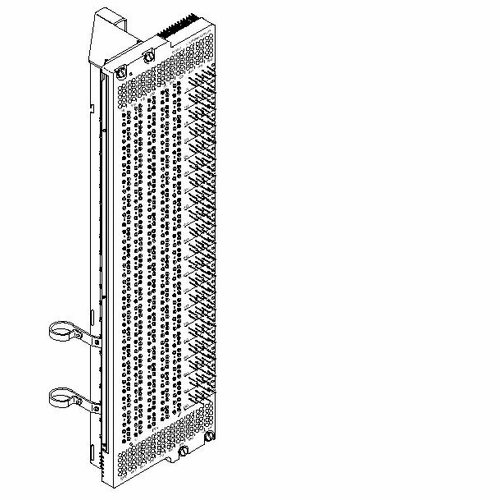

NT CG303-0B105 100PR, 50 foot , 24AWG PROTECTOR CENTRAL OFFICE CONNECTOR

NT CG303-0B105 100PR, 50', 24AWG PROTECTOR NEW Description Corning Cable Systems’ C(G)-303 connector is intended for applications where lower pair density and full frontal facing accessibility are required. The connector is used in central offices where there is ample frame space and is also used to fill up existing "303" verticals. This 19-in-high (483 mm) connector is a 100-pair connector for use on central office main distributing frames, Private Automatic Branch Exchange (PABX), carrier and other special service applications. The C(G)-303 connector may be used on central office mainframes and other frames with 8 inches (203 mm) between verticals. The C(G)-303 connector accepts the full line of industry standard 303-type, 5-pin protector units, including Corning Cable Systems’ Solid-State Overvoltage Protector (SSOVP) units.

Features / Benefits

Configuration Full front-facing protector unit, cross-connect (jumper) and test fields

Protector Field 5 x 20 field layout Uses the 5-pin, 303-type protector modules Tin alloy-plated or gold-plated protector receptacles

Two groups of 50 pairs each, located at top and bottom of the connector panel Accepts all standard 303-type test equipment Ample room for single-pair testing

Cross-Connect (Jumper) Field Wire-wrap terminals Fanning Strips Integral fanning strip

Stub Available with or without stub Stub cable may be 22 or 24 AWG

Protection Ground Frame ground method only

303 - 0B105 (gold plated receptacles, 24awg 50ft stub down, 100pair)
