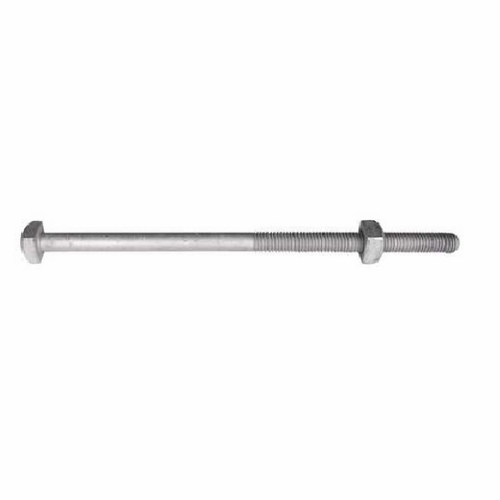

HUBBELL 8812 5/8 inch X 12 inch Through Machine Bolt Square Head 1 Nut 096359075509
Available*
Item # 54959000
Model # 8812
$6.33
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
BOLT
Material and Supplies
Hardware- Screws- Bolts
Bolts and Screws
Hubbell Power Systems
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
HUBBELL 8812 5/8 inch X 12 inch Through Machine Bolt Square Head 1 Nut 096359075509 NEW
HUBBELL 8812 5/8 inch X 12 inch Through Machine Bolt Square Head 1 Nut 096359075509 NEW
Item # 8812 HUBBELL 5/8 inch X 12 inch Through Machine Bolt Square Head 1 Nut UPC: 096359075509 1.2 lbs each

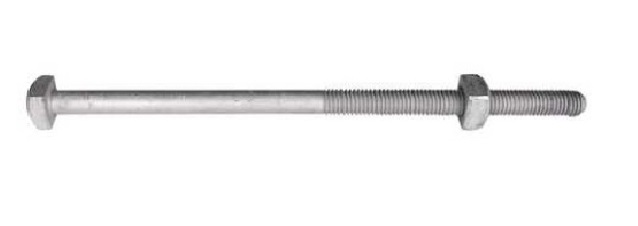

Square head machine bolt for utility pole and crossarm construction. Rated for 12,400 lbs. tensile strength. Includes one assembled square nut, cone point and 6" thread length. Common industry slang reference is crossarm bolt or through bolt.
Features Hot dip galvanized finish per ASTM A-153 Manufactured in compliance with industry standard ANSI/IEEE C135.1 RUS listed, c - Bolt, machine
General Catalog Number 8812 Coating Galvanized, ASTM A-153 Material Steel Tensile Strength 12400 lb. Type Machine Bolts UPC 096359075509
Dimensions Diameter 0.63 in Diameter (Fraction) 5/8 in Dimensions 12.500 in x 1.000 in x 1.000 in Distance From Pole N/A Height 1 in Length 12.5 in Length - Threaded Area 6 in Weight 1.1 lb WeightMetric 0.4 kg Width 1 in
Certifications And Compliance Industry Standard(s) ANSI C135.1 RUS Listed Reference c - Bolt, machine
Logistics Carton Quantity 50 Pallet Quantity 1800
HUBBELL 8812 5/8 inch X 12 inch Through Machine Bolt Square Head 1 Nut 096359075509 NEW
Item # 8812 HUBBELL 5/8 inch X 12 inch Through Machine Bolt Square Head 1 Nut UPC: 096359075509 1.2 lbs each
Square head machine bolt for utility pole and crossarm construction. Rated for 12,400 lbs. tensile strength. Includes one assembled square nut, cone point and 6" thread length. Common industry slang reference is crossarm bolt or through bolt.
Features Hot dip galvanized finish per ASTM A-153 Manufactured in compliance with industry standard ANSI/IEEE C135.1 RUS listed, c - Bolt, machine
General Catalog Number 8812 Coating Galvanized, ASTM A-153 Material Steel Tensile Strength 12400 lb. Type Machine Bolts UPC 096359075509
Dimensions Diameter 0.63 in Diameter (Fraction) 5/8 in Dimensions 12.500 in x 1.000 in x 1.000 in Distance From Pole N/A Height 1 in Length 12.5 in Length - Threaded Area 6 in Weight 1.1 lb WeightMetric 0.4 kg Width 1 in
Certifications And Compliance Industry Standard(s) ANSI C135.1 RUS Listed Reference c - Bolt, machine
Logistics Carton Quantity 50 Pallet Quantity 1800
