PLP 8000745 MORAY SHIELD CONNECTOR *ORDER MINIMUM* 100
Available*
Item # 55016020
Model # 8000745
$7.72
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
BONDS
Material and Supplies
Bonds- Coin- Alligator
Clamps
Preformed Line Products
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

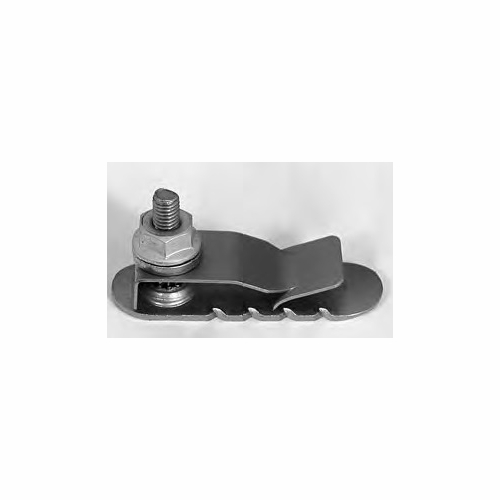

Preformed Line Products 8000745 MORAY SHIELD CONNECTOR NEW
MORAY™ and MINI-MORAY™ Shield Connector: -Connect shield with confidence with the MORAY Shield Connector and the MINI-MORAY Shield Connector. The specially designed teeth penetrate the polymer coating on the cable shield to provide excellent pull-out strength and electrical contact. The tooth design resembles a "reverserake" pattern that allows teeth to "bite" into the cable shield. Two teeth under the "spring-action" connector top are designed to keep it from letting go of the cable sheath. Constant Electrical Contact -The MORAY and MINI-MORAY Shield Connector with a "spring-action" top plate remain in contact with the shield at all times. The "spring-action" design is flexible enough to handle the expansion and contraction of the cable sheath that results from varying temperature ranges, yet strong enough to maintain constant electrical contact. -All Cable Sizes: -With the addition of the MINI-MORAY Shield Connector, Preformed Line Products can offer the flexibility of using the same reliable MORAY Shield Connector design for smaller diameter cables.
