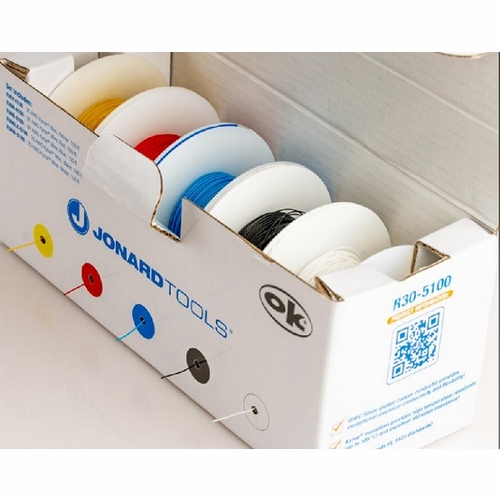

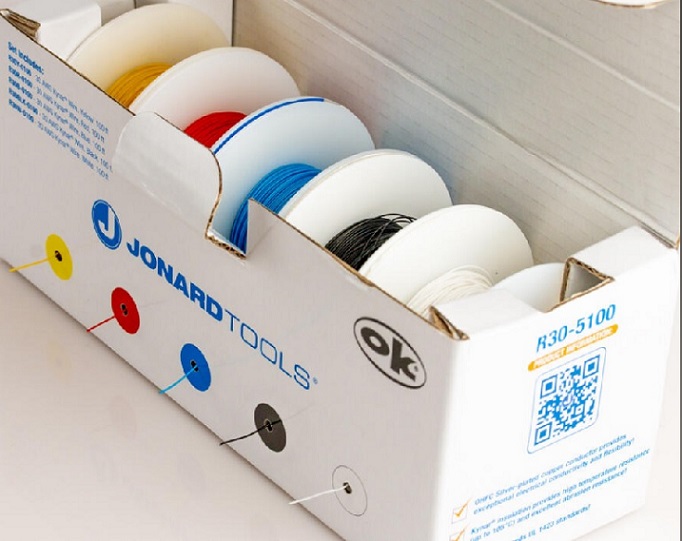

JONARD R30-5100 30 AWG Kynar« Wire Dispenser with 500 ft Wire, 5 Colors UPC 810053350355
JONARD R30-5100 30 AWG Kynar« Wire Dispenser with 500 ft Wire, 5 Colors UPC 810053350355
Typically used where flexibility, strength, and low weight are required, Kynar® wire is ideally suited in wire wrap, power supply, medical, and aerospace applications. It is also commonly used for circuit board prototyping because of its lighter weight and smaller overall diameter. Additionally, Kynar insulation provides excellent mechanical properties over a large temperature range and is resistant to an extensive range of chemicals including most inorganic and organic acids, bases, alcohols, halogenated solvents, and aliphatic & aromatic hydrocarbons. These properties make Kynar® wire an excellent choice when working in even the harshest environmental applications. This wire also features the following:
OHFC (oxygen-free high conductivity) silver-plated copper conductor provides exceptional electrical conductivity and flexibility Kynar® insulation provides high-temperature resistance (up to 105°C) and excellent abrasion resistance Meets or exceeds UL 1423 standards Included Wire Dispenser Box makes organizing and storing your wires a breeze This kit includes a dispenser box and five color spools of 30 AWG wire, each 100 feet long
Kit includes R30B-0100 30 AWG Kynar® Wire, Blue, 100 ft R30Y-0100 30 AWG Kynar® Wire, Yellow, 100 ft R30W-0100 30 AWG Kynar® Wire, White, 100 ft R30BLK-0100 30 AWG Kynar® Wire, Black, 100 ft R30R-0100 30 AWG Kynar® Wire, Red, 100 ft
Specifications Color Black, Blue, Red, Yellow, White
Wire Gauge 30 AWG (0.25 mm)
Insulation Type Kynar®
Insulation Thickness 0.005" (0.127 mm)
Overall Diameter 0.020" (0.50 mm)
Material Silver Plated Copper Conductor
Standards UL 1423
Voltage Not Rated
Length/Reel 100 ft. (30.4 meters)
Dimensions 7.75 in x 2.95 in x 3.15 in (19.69 cm x 7.49 cm x 8 cm) Weight 0.62 lb (281.48 g) UPC # 810053350355
