POLYWATER EPCT-KIT1G PowerPatch Leak Repair Cartridge Kit with application tool 02786805570
Available*
Item # 55461560
Model # EPCT-KIT1G
$245.66
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
SEALANT
Material and Supplies
Lubricants-Sealants
Adhesive
Polywater
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
AMERICAN POLYWATER EPCT-KIT1G PowerPatch® Leak Repair Cartridge Kit with application tool 02786805570 AMERICAN AMERICAN POLYWATER EPCT-KIT1G PowerPatch® Leak Repair Cartridge Kit w/Tool 02786805570
SOLD PER EACH
PCT-KIT 1 with Application Tool
Transformer Leak Repair System PowerPatch® Transformer Leak Repair System blocks oil seepage and SF6 gas leaks with a fast-curing chemical patch.
Features
QUICK PLUGGING ACTION - A fast cure putty stops oil and SF6 gas leaks. PERMANENT SEAL - A 2-part paste overcoat forms a permanent seal. DURABLE - Finished seal is impervious to water, oil, and weather. FAST - System can plug and seal active leaks in minutes. SAVES MONEY - Faster than welding. Transformer may stay in service. SIMPLE - Eliminates bagging or removal from field. CONVENIENT - Kit contains all materials needed to fix leak while in the field.
PowerPatch® System
Use the PowerPatch® System's putty stick to block oil and SF6 leaks. Then make a permanent patch with the fast cure, 2-part paste overcoat. Ensure optimal mix and performance with pre-measured packaging.
It is non-conductive and has a dielectric strength of 43KV (ASTM D149).
Seals punctures or cracks in hard to reach areas. Fixes leaks fast. At 70°F, the putty and sealant harden in about 10 minutes. Repairs made at temperatures as low as 40°F, have a somewhat slower cure.* The finished patch is resistant to transformer oil and sulfur hexaflouride gas (SF6), and has held oil pressures in excess of 100 psi.*Slower cure version available for larger leaks and repair areas.
Preparation is important, and the kit approach provides everything needed to do the job, although in instances of excessive oil leakage or dirt accumulation, separate scrubbing rags such as Grime-Away™ Cleaning Wipes are helpful. Read detailed application instructions before using.
TESTIMONIAL: This product was used on a pad-mounted switchgear that had developed a rust hole on a corner, allowing possible access to energized parts. Product was easy to apply and went over rusted area quite well. It cured well and has adhered to rusted surface, allowing us to delay replacing a $40,000.00 unit that had this one defect.
PowerPatch® Kit
The PowerPatch® Sealant is provided in a kit containing the preparation and patching materials necessary to repair oil and SF6 gas leaks in transformers, lead-sheathed cables, potheads, and other oil-filled, electrical equipment. Kits can be customized to end-user requirements.

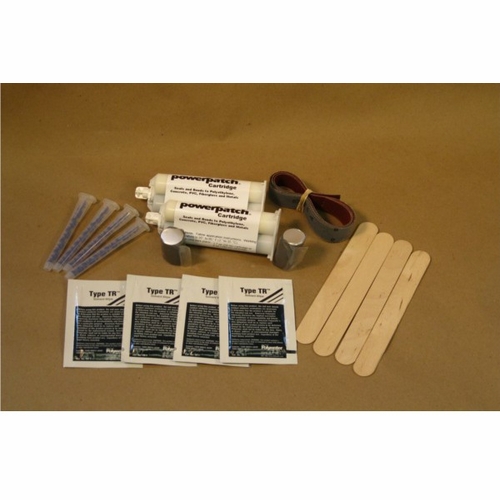

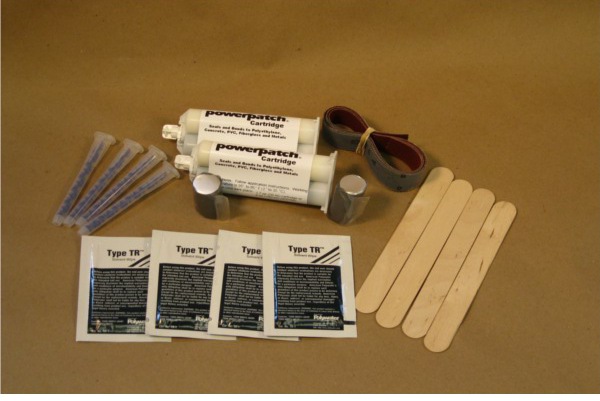

Kit Contains: EPCT-KIT1 [Two PowerPatch® 2-Part Cartridges with 4 static mixers, 2 putty sticks (1-3/4 ), 8 Type TR™ cleaning and preparation wipes, 24 sandpaper strip, 4 application sticks, and instructions. Multi-Use Kit. TOOL-50-11 must be purchased separately to dispense the PowerPatch® sealant.] with Application Tool TOOL-50-11
EPCT-KIT1 2 PowerPatch® 2-part cartridges with 4 static mixers 2 putty sticks (1-3/4 in/44 mm) 8 Type RP™ cleaning and preparation wipes 1 24 in/61 cm sandpaper strip 4 application sticks 1 instructions Multi-use kit. TOOL-50-11 must be purchased separately.
EPCT-KIT1G* 1 EPCT-KIT1 with application tool TOOL-50-11
PCT-KIT 1 with Application Tool
Transformer Leak Repair System PowerPatch® Transformer Leak Repair System blocks oil seepage and SF6 gas leaks with a fast-curing chemical patch.
Features
QUICK PLUGGING ACTION - A fast cure putty stops oil and SF6 gas leaks. PERMANENT SEAL - A 2-part paste overcoat forms a permanent seal. DURABLE - Finished seal is impervious to water, oil, and weather. FAST - System can plug and seal active leaks in minutes. SAVES MONEY - Faster than welding. Transformer may stay in service. SIMPLE - Eliminates bagging or removal from field. CONVENIENT - Kit contains all materials needed to fix leak while in the field.
PowerPatch® System
Use the PowerPatch® System's putty stick to block oil and SF6 leaks. Then make a permanent patch with the fast cure, 2-part paste overcoat. Ensure optimal mix and performance with pre-measured packaging.
It is non-conductive and has a dielectric strength of 43KV (ASTM D149).
Seals punctures or cracks in hard to reach areas. Fixes leaks fast. At 70°F, the putty and sealant harden in about 10 minutes. Repairs made at temperatures as low as 40°F, have a somewhat slower cure.* The finished patch is resistant to transformer oil and sulfur hexaflouride gas (SF6), and has held oil pressures in excess of 100 psi.*Slower cure version available for larger leaks and repair areas.
Preparation is important, and the kit approach provides everything needed to do the job, although in instances of excessive oil leakage or dirt accumulation, separate scrubbing rags such as Grime-Away™ Cleaning Wipes are helpful. Read detailed application instructions before using.
TESTIMONIAL: This product was used on a pad-mounted switchgear that had developed a rust hole on a corner, allowing possible access to energized parts. Product was easy to apply and went over rusted area quite well. It cured well and has adhered to rusted surface, allowing us to delay replacing a $40,000.00 unit that had this one defect.
PowerPatch® Kit
The PowerPatch® Sealant is provided in a kit containing the preparation and patching materials necessary to repair oil and SF6 gas leaks in transformers, lead-sheathed cables, potheads, and other oil-filled, electrical equipment. Kits can be customized to end-user requirements.
Kit Contains: EPCT-KIT1 [Two PowerPatch® 2-Part Cartridges with 4 static mixers, 2 putty sticks (1-3/4 ), 8 Type TR™ cleaning and preparation wipes, 24 sandpaper strip, 4 application sticks, and instructions. Multi-Use Kit. TOOL-50-11 must be purchased separately to dispense the PowerPatch® sealant.] with Application Tool TOOL-50-11
EPCT-KIT1 2 PowerPatch® 2-part cartridges with 4 static mixers 2 putty sticks (1-3/4 in/44 mm) 8 Type RP™ cleaning and preparation wipes 1 24 in/61 cm sandpaper strip 4 application sticks 1 instructions Multi-use kit. TOOL-50-11 must be purchased separately.
EPCT-KIT1G* 1 EPCT-KIT1 with application tool TOOL-50-11
