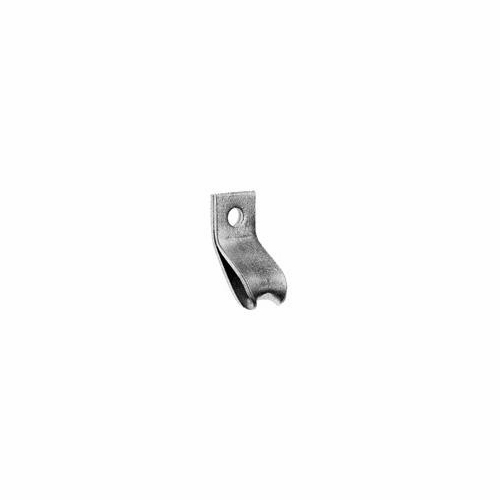

MCCLEAN POWER J25164 GUY ATTACHMENT 1 BOLT 11/16 BOLT HOLE PER/EACH
Available*
Item # 55723050
Model # J5164
$2.71
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
CLAMP
Material and Supplies
Hardware- Screws- Bolts
Clamps
Hubbell Power Systems
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

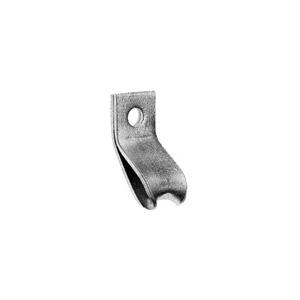

MCCLEAN POWER SYSTEMS J25164 GUY ATTACHMENT 1 BOLT 11/16 BOLT HOLE PER/EACH NEW Guy Attachments
Features:
Guy Attachments provide an economical and efficient means of fastening guys to poles Well rounded wire grooves protect the strand from damage The formed steel style guy attachments feature a closed strand loop The ears of the malleable guy attachments will accommodate any type of guy loop or clamp bail. The lower mounting hole is for a 1/2-inch lag screw Application: Wherever possible, installation should be made under the head of a machine bolt. Guy attachments are not recommended to be mounted on the threaded end of a bolt as tensile and bending stressses on bolt threads can result in premature bolt failure less than the bolt minimum tensile strength Material: Hot Dip Galvanized One-Bolt Formed Steel Type
Catalog Number J25164 Steel Size 2 x 3/16 Hole Size (Inches) 11/16 45°; Ultimate Str. (Lbs.) 10,000 lbs Weight/100 (lbs) 113
Guy Attachments provide an economical and efficient means of fastening guys to poles Well rounded wire grooves protect the strand from damage The formed steel style guy attachments feature a closed strand loop The ears of the malleable guy attachments will accommodate any type of guy loop or clamp bail. The lower mounting hole is for a 1/2-inch lag screw Application: Wherever possible, installation should be made under the head of a machine bolt. Guy attachments are not recommended to be mounted on the threaded end of a bolt as tensile and bending stressses on bolt threads can result in premature bolt failure less than the bolt minimum tensile strength Material: Hot Dip Galvanized One-Bolt Formed Steel Type
Catalog Number J25164 Steel Size 2 x 3/16 Hole Size (Inches) 11/16 45°; Ultimate Str. (Lbs.) 10,000 lbs Weight/100 (lbs) 113
