PLP 44002213 FIBERLIGN DIELECTRIC SUPPORT BLOCK ADSS .901-.950 *ORDER MINIMUM* 10
Available*
Item # 55725070
Model # 44002213
$54.09
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
ADSS
Fiber Optic Products
Fiber Optic Infrastructure
Fiber Cable Suspension Clamps
Preformed Line Products
Fiber Clamps for ADSS Cable
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

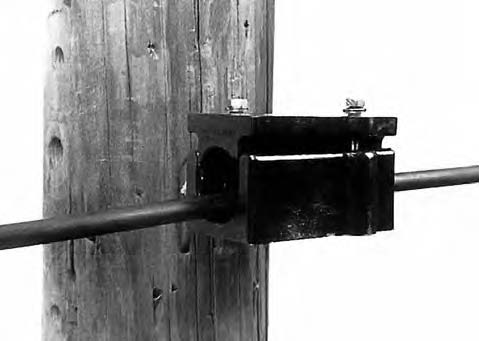

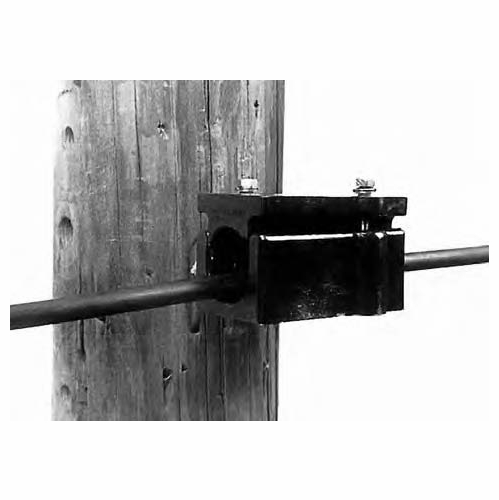

Preformed Line Products 44002213 FIBERLIGN® Dielectric Support for ADSS Cable OD Range inches (mm) . .901-.950 (23.0-24.1).
Stringing Operations: The dielectric material of the body provides a highly abrasive-resistant surface that allows the FDS body to be used as a stringing traveler at the structure on up to 10° line angles. This ability saves installation time and costs by eliminating the use of conventional stringing travelers. For stringing operations, thread the FDS onto the appropriate bolt, remove the inserts and elevate the top as far away from the bottom as the bolts will allow, to provide as large an opening as possible. Then thread pulling-in cable through the opening.
Component Reuse: All components of FDS may be reused as desired if in good condition. Do not modify any component.
Stringing Operations: The dielectric material of the body provides a highly abrasive-resistant surface that allows the FDS body to be used as a stringing traveler at the structure on up to 10° line angles. This ability saves installation time and costs by eliminating the use of conventional stringing travelers. For stringing operations, thread the FDS onto the appropriate bolt, remove the inserts and elevate the top as far away from the bottom as the bolts will allow, to provide as large an opening as possible. Then thread pulling-in cable through the opening.
Component Reuse: All components of FDS may be reused as desired if in good condition. Do not modify any component.
