GMP General Machine Products 70751 Sidewinder V3 with Honda Engine
Available*
Item # 55729810
Model # 70751
$57,269.42
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
BLOWER FIB
Tools
Line Construction- Placing
Blowers- Cable- Winch Line
GMP General Machine Products
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
GMP General Machine Products 70751 Sidewinder V3 with Honda Engine
GMP General Machine Products 70751 Sidewinder V3 with Honda Engine
P/N 70751 Sidewinder V3 with Honda Engine Weight 1500 lbs.

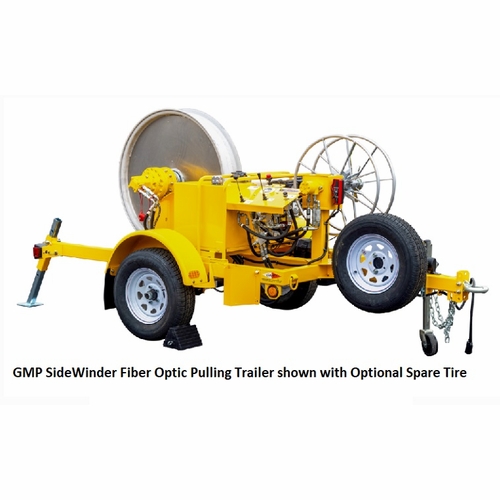

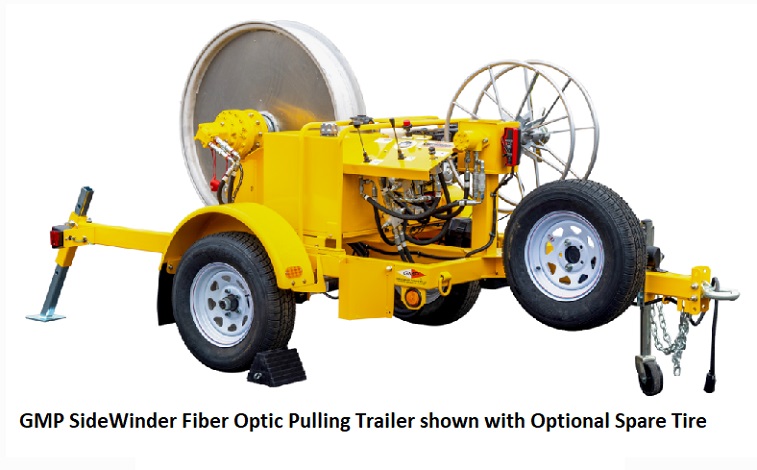

The GMP SideWinder Trailer-Mounted Fiber Optic Puller has been designed to exceed the requirements of installing underground telecommunication cables, and high-density fiber by employing a 42 in. diameter single capstan to provide a controlled force to the pulling rope or tape. The single capstan allows the winch to be placed at the midpoint of a section to assist in the pull, thus enabling longer pulls
The Electric start SideWinder (P/N 70751) has these extras:
An electric key start GX390 Honda engine along with the choke and throttle is located at the operator’s control panel, safely placing all controls away from the moving pulling line. Quick disconnect hydraulics allows the operator to utilize the SideWinder’s output hydraulic output to power a number of options like a hydraulic dewatering pump or a Tornado Fiber Optic Blowing machine.
Specifications Max. Pulling Capacity 600 lbs (272kg) Max. Rope Speed 262 ft/min (80m/min)
Capstan Diameter 42 in. (1067mm)
Dimensions: Length: 144 in. (3658mm) Overall Width: 69 in. (1753mm) Height: 57 in. (1450mm) Weight: 1500 lbs. (680kg)
Track: 60 in. (1676mm) Tire Size: F78-14 205/75D14
Hitch Coupling: Lunette Ring (Pintle Eye) (P/N 32672) Lighting Adapter: 7-Pole RV Blade Type (P/N 29399) Supplied as standard
Power Supply: Honda GX390 13 HP, Recoil Start, Overhead Valve, Cast Iron Cylinder Sleeve, 1.5 Gallon tank
Load indication: Calibrated gauge bezel Main Drive: Fixed displacement tandem pumps to fixed displacement high torque motors. Gear Box: In-line planetary gearbox (capstan drive)
SideWinder as a power source for the Tornado Blowing Machine: Using accessory part number 32482, the SideWinder has the capability of powering the hydraulic system of the Tornado Blowing Machine thereby eliminating the need to have a separate power pack. Do to the higher rating of the Sidewinder's hydraulic system, the pushing force of the Tornado will be equal to the power pack but the speed will be increased up to 2 1/2 times. This can be regulated via the speed control on the Tornado.
