ERICO EK16 PARALLEL DIRECT BURIED CLAMP GROUND PK/50

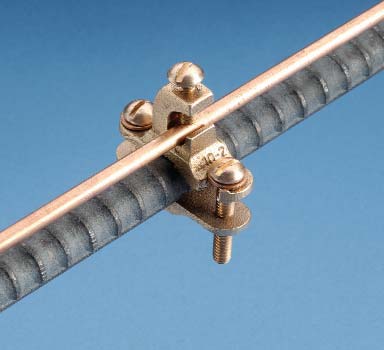

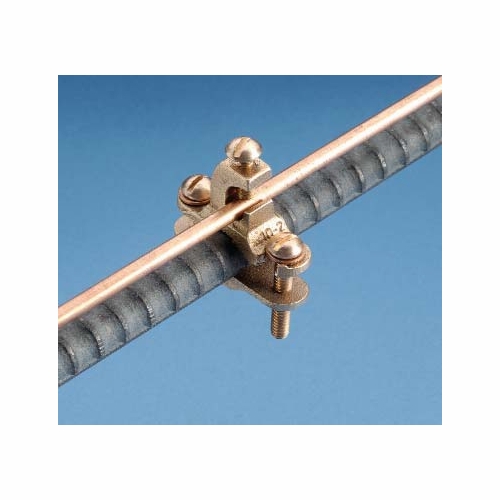

ERICO EK16 PARALLEL DIRECT BURIED CLAMP GROUND PK/50 NEW The new EK16 and EK17 Direct-Burial Ground Clamps from ERICO® are a time-saving, cost-effective versatile product that combines four clamps into one. This unique bronze-alloy grounding clamp with bronze screws consolidates separate rebar clamps, ground rod clamps, waterpipe clamps and direct-burial water pipe clamps into one product, allowing contractors to save room on their trucks and distributors to save room on their shelves. It is ideal for swimming pool grounding, light poles and direct-burial applications in both earth and concrete. The UL® listed product works on rebar, water pipe and ground rods. The clamp cuts installation time by allowing the contractor to pre-set the clamp on a piece of rebar or water pipe. After all of the clamps have been set, the ground conductor can then be installed using the clamp’s unique “lay-in” feature. Rather than threading the ground wire through a hole to make a continuous loop, just lay the conductor in the channel and tighten the setscrew. It’s as easy as that! No more time-consuming threading

Features Lay-in feature cuts installation time Bronze alloy construction with bronze screws Approved for direct burial in earth and concrete Pipe range from 1/2” (12.7 mm) to 1” (25.4 mm) Rebar range from #4 (10 mm) to #8 (25 mm) Ground rod range from 1/2”(12.7 mm) to 1” (25.4 mm) Conductor range from #10 (5.5 mm sq) to #2 (25 mm sq) UL listed

EK16 78285657555 Parallel direct-burial ground clamp 50 EK17 78285657558 Perpendicular direct-burial ground clamp 50
