PLP SDS-005 Squirrel Deterrent System 5 foot NEW
Available*
Item # 55812650
Model # SDS-005
$190.38
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
ELECTRIC
Material and Supplies
Hardware- Screws- Bolts
Wildlife Protection
Preformed Line Products
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
PLP SDS-005 Squirrel Deterrent System 5 foot NEW
PLP SDS-005 Squirrel Deterrent System 5 foot NEW

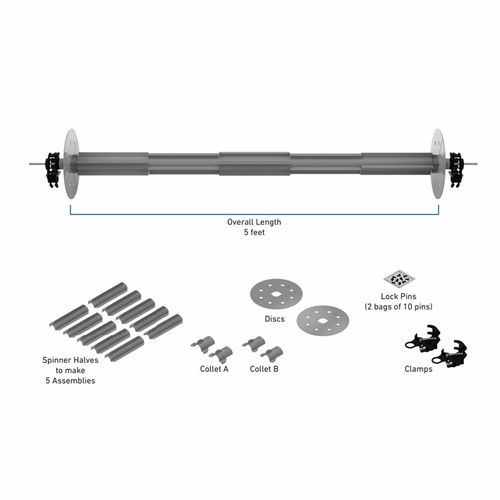

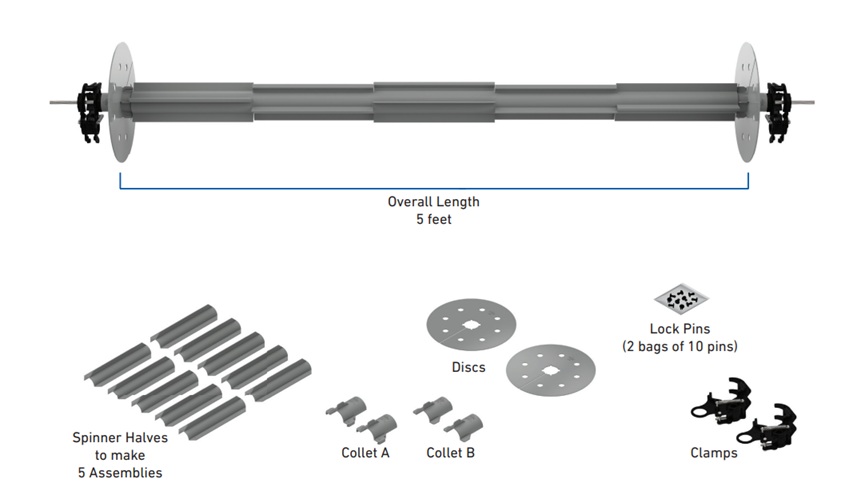

P/N SDS-005 Squirrel Deterrent System 5 foot Squirrel Deterrent System-5 Feet (Includes 5 Spinner Assemblies, 2 Collet Assemblies (A+B), 2 Discs, 2 Clamps, and 2 bags of 10 Lock Pins) Weight 8 lbs
The Squirrel Deterrent System (SDS) is intended to prevent squirrels from gaining access to electrical components within the distribution system and causing outages. Statistics show that squirrels cause more electrical outages than any other species of wildlife. They travel along conductors, gaining access to substations, switches, and transformers where the energized conductors and the ground potential are close enough together that the squirred can short them. This obviously will fatally harm the squirrel and will result in equipment damage and failure
Features Accommodates conductors up to 1.5" diameter Line voltages up to 69 kV UV-stabilized, outdoor-grade PVC Easy to install, no tools required Customize to fit application using additional modular components
Accessories Carton Qty. Carton Weight SDC-001 Spinner Assembly 10 10 SDC-002 Collet Kit 4(8 halves) 1 (Includes 2A and 2B Collet Assemblies) SDC-003 Disc Kit 4 2 SDC-004 Clamp 4 2 SDC-005 Small Lock Pin Kit 2 1 (Includes 2 bags of 10 Lock Pins) Durable PVC is lightweight and cost-effective
PLP SDS-005 Squirrel Deterrent System 5 foot NEW
P/N SDS-005 Squirrel Deterrent System 5 foot Squirrel Deterrent System-5 Feet (Includes 5 Spinner Assemblies, 2 Collet Assemblies (A+B), 2 Discs, 2 Clamps, and 2 bags of 10 Lock Pins) Weight 8 lbs
The Squirrel Deterrent System (SDS) is intended to prevent squirrels from gaining access to electrical components within the distribution system and causing outages. Statistics show that squirrels cause more electrical outages than any other species of wildlife. They travel along conductors, gaining access to substations, switches, and transformers where the energized conductors and the ground potential are close enough together that the squirred can short them. This obviously will fatally harm the squirrel and will result in equipment damage and failure
Features Accommodates conductors up to 1.5" diameter Line voltages up to 69 kV UV-stabilized, outdoor-grade PVC Easy to install, no tools required Customize to fit application using additional modular components
Accessories Carton Qty. Carton Weight SDC-001 Spinner Assembly 10 10 SDC-002 Collet Kit 4(8 halves) 1 (Includes 2A and 2B Collet Assemblies) SDC-003 Disc Kit 4 2 SDC-004 Clamp 4 2 SDC-005 Small Lock Pin Kit 2 1 (Includes 2 bags of 10 Lock Pins) Durable PVC is lightweight and cost-effective
