GMP 17077 PLUG MODULAR 8X8 NONKEY 100/PK
Available*
Item # 58929845
Model # 17077
$87.59
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
CONNECTORS
Material and Supplies
Connectors-Terminators
Network
GMP General Machine Products
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

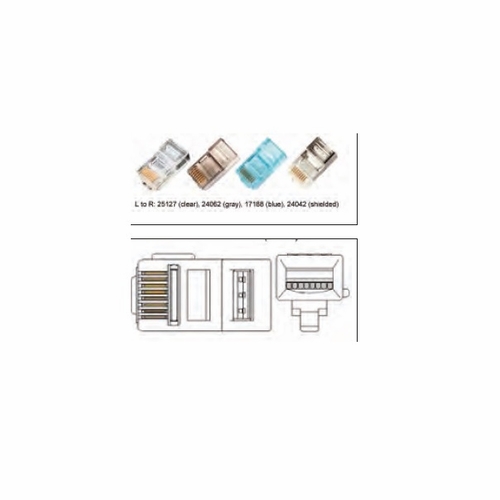

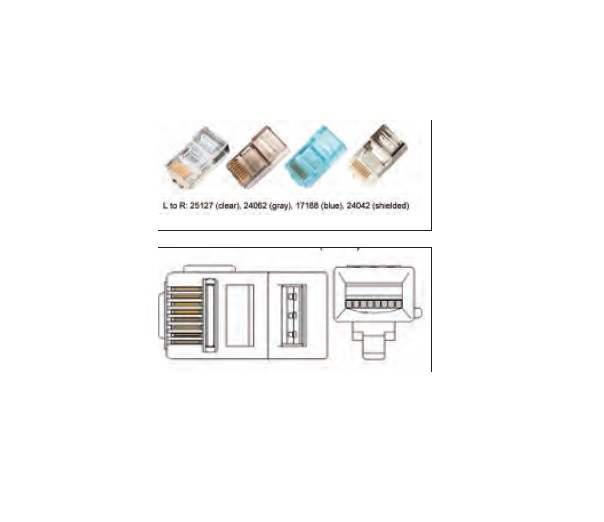

GENERAL MACHINE PRODUCTS 17077 PLUG MODULAR 8X8 NONKEY 100/PK Modular Plugs
These rugged, dependable plugs are specially manufactured to exacting GENERAL MACHINE PRODUCTS standards for highest possible quality and performance.
Each UL-listed plug is molded from fire-resistant, translucent polycarbonate that's either clear or color tinted for fast application identification
The phosphor-bronze contacts are plated with 50 micro inches (2 microns) of pure gold, then polished to a high luster. This is the highest gold content currently available in modular plugs.
Note: High gold content in a modular plug is key to corrosion resistance.
The gold, extra-conductive, corrosion-resistant mating surface helps minimize contact abrasion during insertion and removal
For Tinsel/Stranded Cordage: Insulated conductor diameter: .038 in. (.96 mm) Clear Plugs, Weight: 1 lb. (454 g)
Plug Ordering Information (Stranded Cordage)
P/N Configuration
17074 4-Contact x 4-position (4 x 4) handset plugs 100/pkg. 17078 2-Contact x 6-position (2 x 6) RJ11 line cord plugs 100/pkg. 17075 4-Contact x 6-position (4 x 6) RJ11 line cord plugs 100/pkg. 17076 6-Contact x 6-position (6 x 6) RJ11 line cord plugs 100/pkg. 17077 8-Contact x 8-position (8 x 8) RJ45 non-keyed line cord plugs 100/pkg. 17043 8-Contact x 8-position (8 x 8) RJ45 keyed line cord plugs 100/pkg. 25125 10-Contact x 10-position (10 x 10) RJ45 keyed left line cord plugs 25/pkg. 25126 10-Contact x 10-position (10 x 10) RJ45 keyed right line cord plugs 25/pkg. 25127 10-Contact x 10-position (10 x 10) RJ45 non-keyed line cord plugs 25/pkg.
--------------------------------------------------------------------------------
For Solid Wire: Insulated conductor diameter: .038 in. (.96 mm) Grey Plugs, 100/pkg. Weight: 1 lb. (454 g)
24061 3-Pair 22/24 AWG RJ11 plugs 24062 4-Pair 22/24 AWG RJ45 plugs
For D Inside Wire & Plenum: Insulated conductor diameter: .033 in. (.84 mm) Blue Plugs, 100/pkg. Weight: 1 lb. (454 g)
17188 4-Pair 24 AWG RJ45 plugs
For Shielded Twisted Pair (STP): Insulated conductor diameter: .038 in. (.96 mm) Clear/Metallic Plugs, 25/pkg. Weight: 4 oz. (113g)
24042 4-Pair RJ45 STP plugs (CAT 5, 5e or 6) (use with S8 die)
For Category 5, 5e & 6 Unshielded Twisted Pair (UTP): Insulated conductor diameter .042 in. (1.06 mm) Clear Plugs, 100/pkg. Weight: 1 lb. (454 g)
24065 8-Contact Cat. 6 plug with separate conductor alignment bar for precise wire loading (use with B8 die)
For DEC Data Cable: Insulated conductor diameter: .040 in. (1.00 mm) Clear Plugs, 100/pkg. Weight: 1 lb. (454 g)
17090 6-Contact x 6-position MMJ plug
