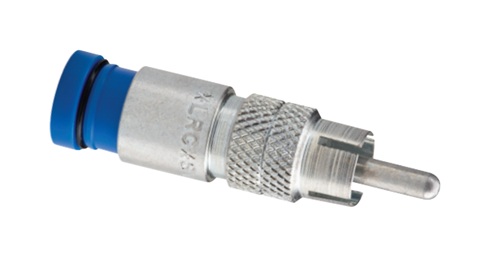

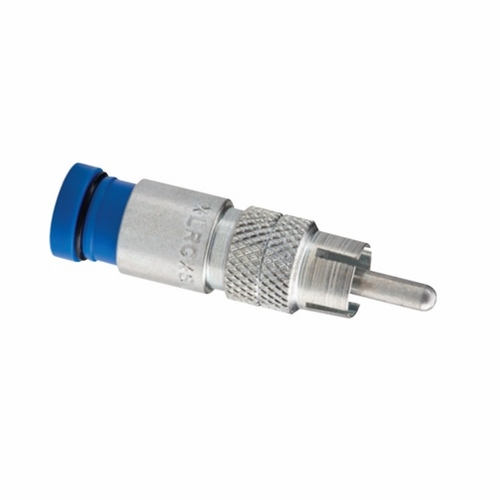

T&B SNS1PR6MBL RCA TYPE MALE SNAP N SEAL BLUE
Available*
Item # 59030010
Model # SNS1PR6MBL
$1.70
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
CONNECTORS
Material and Supplies
Connectors-Terminators
Coaxial
T&B Thomas And Betts
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
T&B SNS1PR6MBL RCA TYPE MALE SNAP N SEAL BLUE
T&B SNS1PR6MBL RCA TYPE MALE SNAP N SEAL BLUE
P/N SNS1PR6MBL T&B ABB RCA Type Male Compression Connectors Blue
Extending the use of our Snap-N-SealŪ technology, Thomas & Betts introduces the Snap-N-SealŪ RCA connector. Designed to interface with all standard RCA female jacks and utilizing standard or tri-shield SCTE specification 6 series drop cable, this product gives the installer maximum flexibility for creating and placing audio cables in home entertainment systems.
DESIGN FEATURES Features Snap-N-SealŪ technology for simple and reliable installations.
Designed to interface with RCA female (JACK) per IEC Specification 60603-14.
Cadmium plated connector body and precision integral contact provide maximum reliability.
Installation requires one-step 1/4-1/4 cable preparation and standard compression tools used for all 59 and 6 series Snap-N-SealŪ product families.
Color coded sleeves based on industry standards for RCA connector applications
TECHNICAL SPECIFICATION
PHYSICAL PROPERTIES BODY COMPONENTS: BRASS BODY FINISH: CADMIUM TERMINAL/CONTACT: BRASS BERILLIUM COPPER INSULATORS: TPX
ELECTRICAL PROPERTIES RETURN LOSS: -30 dB UP TO 20 MHZ TYPICAL INSERTION LOSS: -0.05 dB UP TO 20 MHZ TYPICAL RFI SHIELDING: -120 dB UP TO 20 MHZ TYPICAL
MECHANICAL PROPERTIES CABLE RETENTION : 40 LBS MIN. COMPLIES TO SCTE IPS-SP-404 CABLE INSERTION FORCE: <20 LBS
ENVIRONMENTAL PROPERTIES TEMPERATURE RATING: -40°F (-40°C) TO 140°F (60°C)
Catalog Sleeve Tool Inner Outer Number Color Code Pack Pack SNS1P6RMBL Blue 1+2 36 432 SNS1P6RMY Yellow 1+2 36 432 SNS1P6RMW White 1+2 36 432 SNS1P6RMR Red 1+2 36 432 SNS1P6RMG Green 1+2 36 432 SNS1P6RMBK Black 1+2 36 432
