GREENLEE 07770 MAIN CAPSTAN KIT (G6) 783310077701/52082325
Available*
Item # 79989822
Model # 783310077701
$1,212.11
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
TUGGER
Tools
Line Construction- Placing
Puller- Tuggers- Winches
Greenlee Textron
Puller Parts
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
GREENLEE 07770 MAIN CAPSTAN KIT (G6) 783310077701/52082325
GREENLEE 07770 MAIN CAPSTAN KIT (G6) 783310077701/52082325

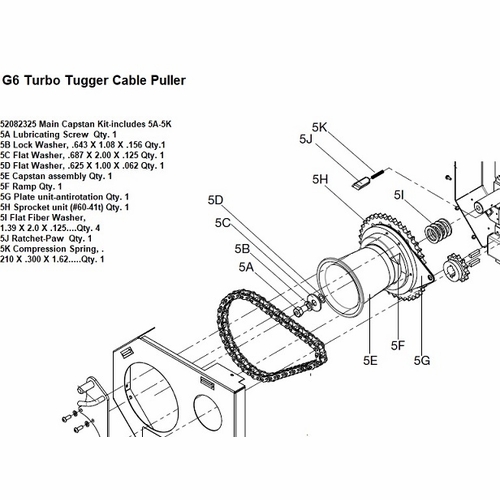

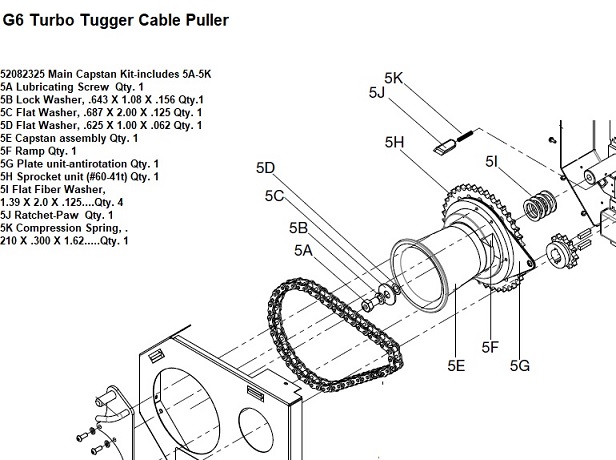

52082325 Main Capstan Kit-includes 5A-5K 5A Lubricating Screw.............................Qty. 1 5B Lock Washer, .643 X 1.08 X .156.....Qty.1 5C Flat Washer, .687 X 2.00 X .125........Qty. 1 5D Flat Washer, .625 X 1.00 X .062........Qty. 1 5E Capstan assembly............................. Qty. 1 5F Ramp..................................................Qty. 1 5G Plate unit-antirotation..........................Qty. 1 5H Sprocket unit (#60-41t)...................... Qty. 1 5I Flat Fiber Washer, 1.39 X 2.0 X .125....Qty. 4 5J Ratchet-Pawl......................................Qty. 1 5K Compression Spring, .210 X .300 X 1.62.....Qty. 1
Used with the G6 Turbo Tugger Cable Puller
GREENLEE 07770 MAIN CAPSTAN KIT (G6) 783310077701/52082325
52082325 Main Capstan Kit-includes 5A-5K 5A Lubricating Screw.............................Qty. 1 5B Lock Washer, .643 X 1.08 X .156.....Qty.1 5C Flat Washer, .687 X 2.00 X .125........Qty. 1 5D Flat Washer, .625 X 1.00 X .062........Qty. 1 5E Capstan assembly............................. Qty. 1 5F Ramp..................................................Qty. 1 5G Plate unit-antirotation..........................Qty. 1 5H Sprocket unit (#60-41t)...................... Qty. 1 5I Flat Fiber Washer, 1.39 X 2.0 X .125....Qty. 4 5J Ratchet-Pawl......................................Qty. 1 5K Compression Spring, .210 X .300 X 1.62.....Qty. 1
Used with the G6 Turbo Tugger Cable Puller
