TEMPO 915FS-KIT2 CONTRACTOR (915FS-KIT2) 783310066736/52079878
Available*
Item # 79990282
Model # 915FS-KIT2
$3,650.00
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
FUSION SPL
Fiber Optic Products
Fusion and Mechanical Splicing
Fiber Fusion Splicer
INNO Instrument
Fusion Splicers
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
TEMPO 915FS-KIT2 CONTRACTOR (915FS-KIT2) 783310066736/52079878

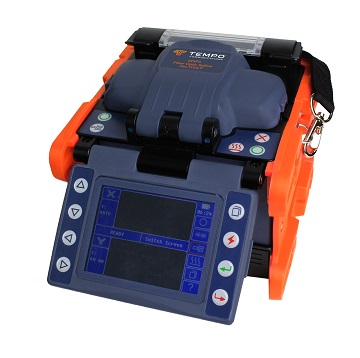

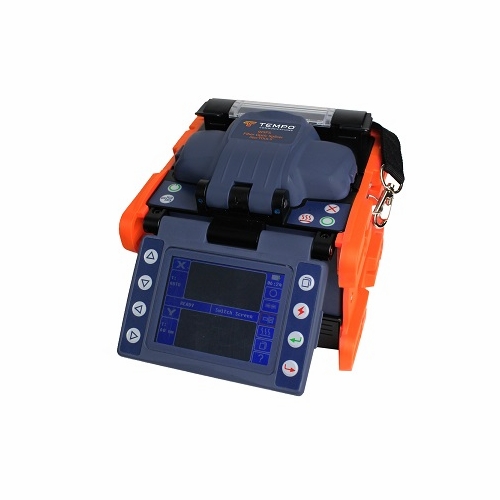

The 915FS optical fusion splicer uses active cladding alignment technology which allows the technician to reliably fuse fiber optic cables with low splice losses. Active clad technology splicers provide a more cost effective splicing alternative to core alignment but still provides low splice losses which is ideally suited for FTTH installations. The intuitive user interface keeps the learning curve short and enables the technician to be productive in a very short time. FTTx, P2P installations, and all standard fibers are supported with pre-qualified splicing profiles that can be modified and subsequently stored for more demanding fiber applications.
The 915FS uses the Tempo Splice on Connector, which provides a low loss, low return loss, and reliable connection that surpasses the failure prone mechanical connector. Splice on connectors also allow for easier fiber routing, which reduces fiber preparation since the splice on connector is pre-cleaved and also eliminates the need for a splice tray.
The 915FS is available in the popular Contractor kit which bundles the fusion splicer, cleaver, an extra battery, and fiber strippers so that the technician has all of the tools they will need.
Model Description 915FS Active Clad Splicer 915FS-KIT1 Splicer & Cleaver Kit (915FS & 915CL) 915FS-KIT2 Contractor's Kit (915FS, 915CL, PA1171 & Extra Battery)
Attribute Name Attribute Value Applicable Fibers SM (G.652); MM (G.651); DS (G.653); NZDS (G.655); BIF (G.657); EDF Fiber Cleaved Length 10mm Cladding Diameter 100 to 1000µm Fiber Count Single Fiber Aligning Method Active Clad Splice Loss (Typical) 0.02 dB (SM); 0.01 dB (MM); 0.04 dB (DS); 0.04 dB (NZDS & BIF) Splicing Mode 60 Preset / User Definable Modes Splice Time 7 seconds Boot Time 5 seconds Number of Splices Per Battery Charge 200 (including 60mm heat shrink cycle)
The 915FS optical fusion splicer uses active cladding alignment technology which allows the technician to reliably fuse fiber optic cables with low splice losses. Active clad technology splicers provide a more cost effective splicing alternative to core alignment but still provides low splice losses which is ideally suited for FTTH installations. The intuitive user interface keeps the learning curve short and enables the technician to be productive in a very short time. FTTx, P2P installations, and all standard fibers are supported with pre-qualified splicing profiles that can be modified and subsequently stored for more demanding fiber applications.
The 915FS uses the Tempo Splice on Connector, which provides a low loss, low return loss, and reliable connection that surpasses the failure prone mechanical connector. Splice on connectors also allow for easier fiber routing, which reduces fiber preparation since the splice on connector is pre-cleaved and also eliminates the need for a splice tray.
The 915FS is available in the popular Contractor kit which bundles the fusion splicer, cleaver, an extra battery, and fiber strippers so that the technician has all of the tools they will need.
Model Description 915FS Active Clad Splicer 915FS-KIT1 Splicer & Cleaver Kit (915FS & 915CL) 915FS-KIT2 Contractor's Kit (915FS, 915CL, PA1171 & Extra Battery)
Attribute Name Attribute Value Applicable Fibers SM (G.652); MM (G.651); DS (G.653); NZDS (G.655); BIF (G.657); EDF Fiber Cleaved Length 10mm Cladding Diameter 100 to 1000µm Fiber Count Single Fiber Aligning Method Active Clad Splice Loss (Typical) 0.02 dB (SM); 0.01 dB (MM); 0.04 dB (DS); 0.04 dB (NZDS & BIF) Splicing Mode 60 Preset / User Definable Modes Splice Time 7 seconds Boot Time 5 seconds Number of Splices Per Battery Charge 200 (including 60mm heat shrink cycle)
