GREENLEE DDPM-40/K02 DD PHASING METER, PT-5000B, ASP-15/25 783310081173/52083978
Available*
Item # 79990424
Model # 783310081173
$5,631.45
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
GREENLEE DDPM-40/K02 DD PHASING METER, PT-5000B, ASP-15/25 783310081173/52083978
GREENLEE DDPM-40/K02 DD PHASING METER, PT-5000B, ASP-15/25 783310081173/52083978
Measures voltage from 5V to 43kV line-to-line Can be used individually as voltmeters or together for phasing operations up to 100 ft. (30m) apart Clear indication of phase angle Two LED displays are automatically synchronized during phasing operations Versatile for overhead and underground applications Capacitive Test Point and Peak Hold modes

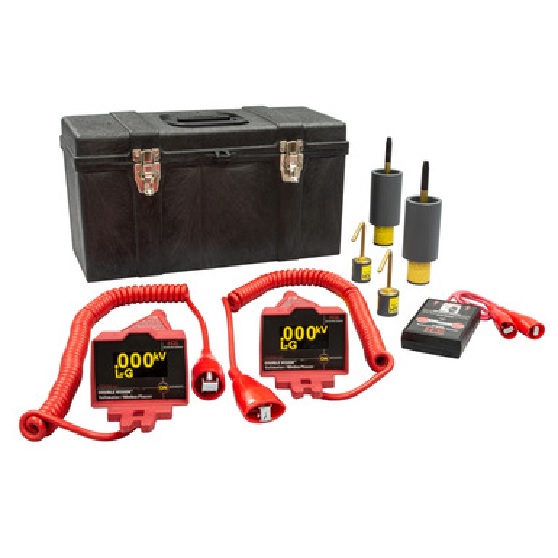

Specifications Sub Brand HDE Type Voltmeter & Phasing set Model DDPM-40 Voltage Rating 5V - 43kV line-to-line, 5V - 25kV line-to-ground Accuracy Within 1% of reading +/- 3 counts (line-to-ground & line-to-line measurements) Display Two LED displays with 0.7" numeral height. Displays 3 digits Operating Temperature -20°F to +120°F (-29°C to +49°C) Dimensions 14" L x 4.1" H x 4.6" W (36 cm x 10 cm x 12 cm) without probes Frequency Rating 25 - 1000Hz AC/DC Phase Indication Phase Angle Included: DDPM-40, (2) 025-OLPS-5 Overhead Brass Hook Probes (2), ASP-15/25 15kV/25kV UG Bushing Probe (2), PT-5000B Proof Tester, CS-DDVM Case
