GREENLEE DVI-500/K02 DVI-500 HP-DVI-2, HP-DVI-6, IEP-DVI-5 783310054887/52074184
GREENLEE DVI-500/K02 DVI-500 HP-DVI-2, HP-DVI-6, IEP-DVI-5 783310054887/52074184
Digital Voltage Indicator 500kV, OH/UG Kit 2
Measures voltage up to 500kv line-to-ground Voltage readout distinguishes between nominal and induced voltages Audible indication when voltage is detected Test Point mode available (DVI-500T model) Auto-shutoff and low battery indication features Versatile for overhead and underground applications

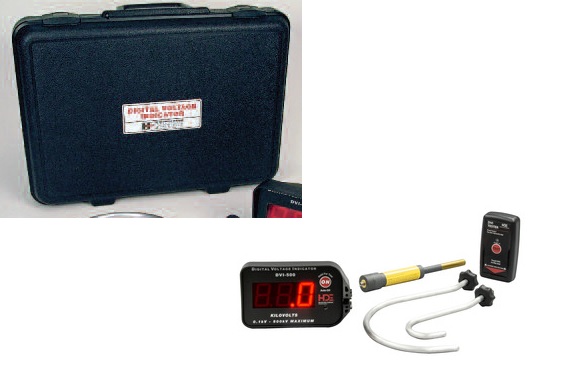

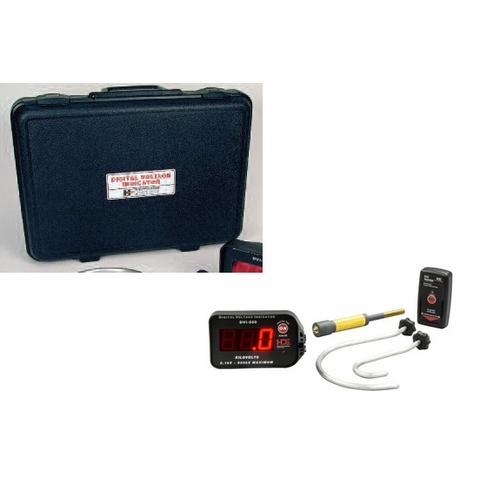

Specifications Sub Brand HDE Type Digital Voltage Indicator Model DVI-500 Voltage Rating 100V - 500kV line-to-ground Accuracy Laboratory calibrated to +/-3%. Typical overhead line in compact overhead three phase +/-10%. Other applications up to +/-25% Display LED display Operating Temperature -20°F to +140°F (-29°C to +60°C) Dimensions 4.25"H x 7"W x 4.5"D (11 cm x 18 cm x 11 cm) Frequency Rating AC 60Hz (50Hz model available) Included DVI-500, HP-DVI-2 2" Overhead Hook Probe, HP-DVI-6 6" Overhead Hook Probe, IEP-DVI-5 underground bushing probe, PT-DVI Proof Tester proof tester, CS-DVI plastic case
