Product Description
Greenlee Ek1240Lx230 Crimper, 12T Li, Std, 230V Ac 783310609872/52078647

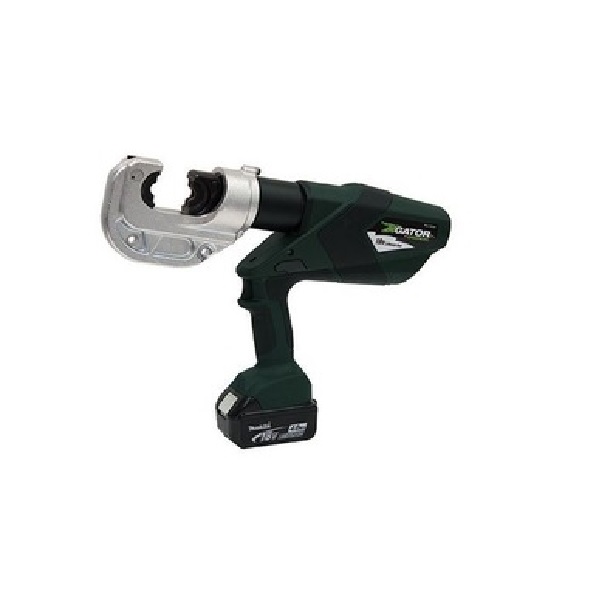

Greenlee Ek1240Lx230
Crimper, 12T Li, Std, 230V Ac 783310609872/52078647
Equipped With Bluetooth™ Communication Enabled Via The Greenlee Gator Eye App
Features Led Display Screen Communicating Pressure And Battery Levels As Well As Tool Diagnostics With Real-Time Tool Feedback
Intelligent Crimping System Technology Includes A Pressure Sensor That Monitors The Crimping Force Of Each Crimp And Provides The Operator A Visual And Audible Alert If The Force Is Below Specifications
State Of The Art 18V Lithium Ion (Li-Ion) Battery Provides 70% More Cycles Per Charge And Faster Cycle Times
Automatic Retraction Stop (Ars) Which Retracts The Ram Just Enough To Get Ready For The Next Cycle Saving Time And Energy
Led Light Provides The Operator With The Battery Charge And Tool Maintenance Status
Two-Stage Hydraulic System Provides Fast Advance And Power Speeds, Saving Time
Forward Handle Position Improves Tool Balance
One Trigger Controls All Tool Functions
Crimping Head Rotates 350°
Tools Automatically Retract When The Crimping Cycle Is Complete
Overmolded Tacky Grip Areas Make Gripping The Tool Easier And More Comfortable
Led Work Light Illuminates Dark Work Areas
Greenlee Battery-Powered Crimping Tools Now Use Bio-Degradable Oil
Smart Chargers Control The Charging Current, Charging Voltage And Battery Temperature To Maximize Battery Life
Available With 120V, 12V Or 230V Battery Charger Or With 120V Or 230V Corded Adapter In Place Of Batteries And Charger
Three Crimping Head Choices: Ek1230L With 1.20 In (30Mm) Opening Uses Greenlee Kc12, Ka12 & Kd12 Crimping Dies Plus All Industry U Style Crimping Dies, Ek1240L With 1.65 In (42Mm) Opening Uses Greenlee Kc12, Ka12 & Kd12 Crimping Dies Plus All Industry U Style Crimping Dies, Ek1240Kl Uses Kearney Ph2 Style Crimping Dies
Covered Head Models Have Two Layers Of Pvc That Total Approximately 3/16 In (4.8 Mm) Thick
The Outer Layer Is Black, And The Inner Layer Is Red
U.S. Patents #6,206,663 And #6,065,326
Specifications
Sub Brand Gator
Type Die Style Crimper
Application 12 Ton Crimping
Standard C/Us Ul Listed
Wire Size 8 Awg - 750 Kcmil Cu & Al
Opening Size 1.65 In (42 Mm)
Overall Length 16.25 In (413 Mm)
Crimping Force 24,000 Lbs. (106 Kn)
Crimping Capacity 750 Kcmil (Mcm) Cu & Al
Connector Type Color-Coded Lugs And Splices
Handle Type Pistol Style With Over Molded Rubber Grip
