Product Description

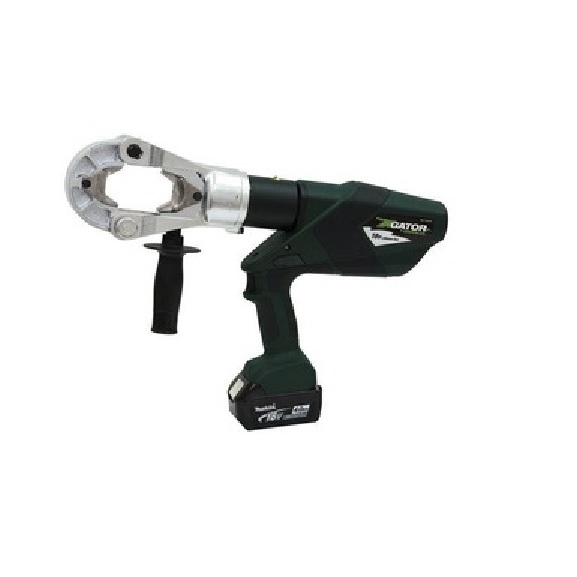

Greenlee Ek1550Flx230 Crimper Flip T, 15T Li, Std, 230V Ac 783310610625/52078695
Greenlee Ek1550Flx230
Crimper Flip T, 15T Li, Std, 230V Ac 783310610625/52078695
Equipped With Bluetooth™ Communication Enabled Via The Greenlee Gator Eye App
Features Led Display Screen Communicating Pressure And Battery Levels As Well As Tool Diagnostics With Real-Time Tool Feedback
Intelligent Crimping System Technology Includes A Pressure Sensor That Monitors The Crimping Force Of Each Crimp And Provides The Operator A Visual And Audible Alert If The Force Is Below Specifications
State Of The Art 18V Lithium Ion (Li-Ion) Battery Provides 70% More Cycles Per Charge And Faster Cycle Times
Automatic Retraction Stop (Ars) Which Retracts The Ram Just Enough To Get Ready For The Next Cycle Saving Time And Energy
Led Light Provides The Operator With The Battery Charge And Tool Maintenance Status
Two-Stage Hydraulic System Provides Fast Advance And Power Speed, Saving Time
Forward Handle Position Improves Tool Balance
One Trigger Controls All Tool Functions
Crimping Head Rotates 350°
Tools Automatically Retract When The Crimping Cycle Is Complete
Flip-Top Configuration, Reduction In Deflection, With Improved Crimp Consistency
Quick-Release Locking Pin
Utilizes "P" And "U" Style Crimping Dies
Overmolded Tacky Grip Areas Make Gripping The Tool Easier And More Comfortable
Specifications
Sub Brand Gator
Type Die Style Crimper
Application 15 Ton Crimping
Standard C/Us Ul Listed
Wire Size 8 Awg - 1500 Kcmil Cu
Wire Size 8 Awg - 1250 Kcmil Al
Overall Length 18.5 In (470Mm)
Crimping Force 30,000 Lbs. (134 Kn)
Crimping Capacity 1500 Kcmil (Mcm) Copper
Crimping Capacity 1250 Kcmil (Mcm) Al
Connector Type Color-Coded Lugs And Splices
Handle Type Pistol Style With Over Molded Rubber Grip
