Product Description

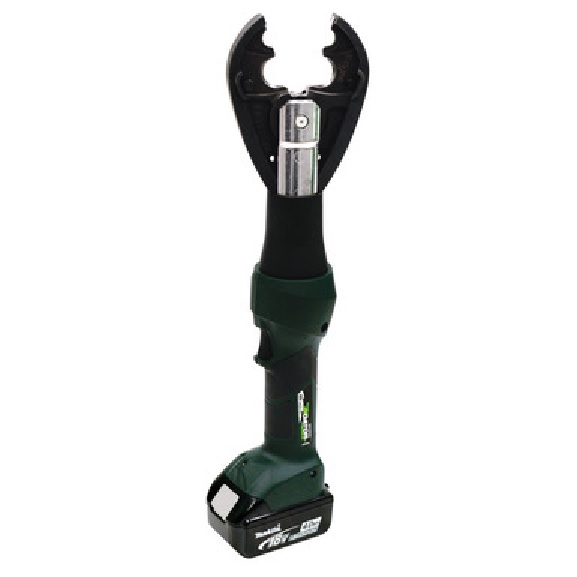

GREENLEE EK425LXKB CRIMPER, 6T LI, STD, CJK, BARE 783310609162/52078579
GREENLEE EK425LXKB
CRIMPER, 6T LI, STD, CJK, BARE 783310609162/52078579
Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback.
The EK425LX is operated with one hand, leaving the other hand free to position the cable and connector
The crimping jaws open wide to fit easily over connectors
In-line tool style is lightweight and very easy to control
To help prepare for a crimp, the jaws can be jogged closed until they just grip the connector, allowing the operator to position the cable in the connector before finishing the crimp
The EK425LX will complete about 325 crimps per battery charge on 4/0 AWG splices
When a crimp is fully completed, the EK425LX signals the operator by automatically opening the jaws
It is then ready to make the next crimp
And, when the crimping jaws need to be opened before a crimp is complete, the operator can simply push a button on the back side of the tool
Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is belows specifications
Specifications
Sub Brand Gator
Type Die style crimper
Application 6 Ton Crimping
Standard C/US UL Listed
Wire Size Connector 10-1/0 AWG 5/8 IN Service Entrance Connectors, 1/0-4/0 AWG 0.840 Service Entrance Connectors, 6 - 4/0 AWG Aluminum H Taps, 10-2 AWG Copper H Taps, 6-2/0 AWG Copper Tension Splices, 6-4/0 AWG All Aluminum Tension Splices, 4-1/0 AWG One Piece ACSR
Overall Length 18.5 IN (470mm)
Crimping Force 12,000 lbs. (53 kN)
Crimping Capacity Connector 10-1/0 AWG 5/8 IN Service Entrance Connectors, 1/0-4/0 AWG 0.840 Service Entrance Connectors, 6 - 4/0 AWG Aluminum H Taps, 10-2 AWG Copper H Taps, 6-2/0 AWG Copper Tension Splices, 6-4/0 AWG All Aluminum Tension Splices, 4-1/0 AWG One Piece ACSR
Connector Type Service entrance connectors, H-Taps, Tension splices, Jumper splices, Stirrups, Color coded lugs & splices
Handle Type In-Line Style with over molded rubber grip
