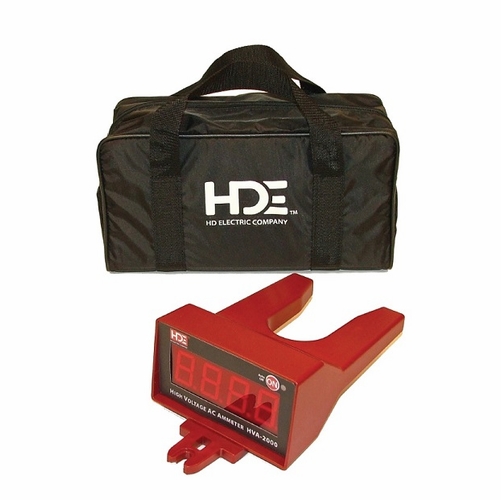

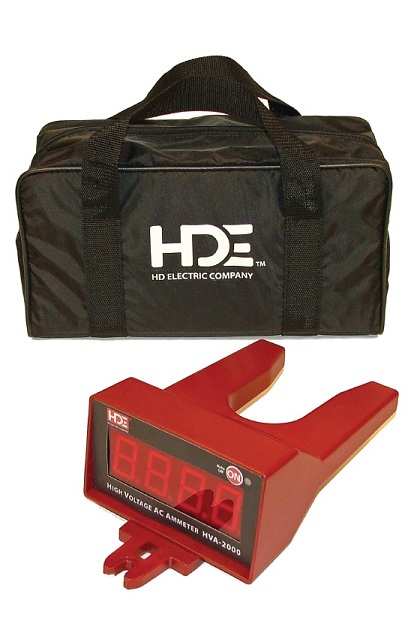

GREENLEE HVA-2000 HVA HIGH VOLTAGE DIGITAL AMMETER 783310628309/52068910
Available*
Item # 79991506
Model # 783310628309
$2,240.85
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
GREENLEE HVA-2000 HVA HIGH VOLTAGE DIGITAL AMMETER 783310628309/52068910
GREENLEE HVA-2000 HVA HIGH VOLTAGE DIGITAL AMMETER 783310628309/52068910
Measures AC current from 1 to 2000 Amps on system voltages up to 500kV line-to-ground Stores the last 4 readings Dual measurement modes, peak hold and real time Takes spot-load checks with ease Verifies phases are balanced Versatile for overhead and underground applications Compact, lightweight design
Specifications Sub Brand HDE Type Ammeter Model HVA-2000 Voltage Rating 0 - 500kV line-to-ground Amperage Rating 1 -2000A ACCURACY: 50-60Hz RANGE ACCURACY 1-10A 1%±2 counts 11-100A 1%±3 counts 101-500 1%±6 counts 501-2000 1%±8 counts
25-49Hz and 61-500Hz RANGE ACCURACY 1-10A 2%±3 counts 11-100A 2%±4 counts 101-500 2%±6 counts 501-2000 2%±8 counts
Display LED display Operating Temperature -20°F to +140°F (-29°C to +60°C) Dimensions 4"H x 6.6"W x 11.5"L Frequency Rating 25 - 500Hz Included HVA-2000 Ammeter, B-5 Bag
