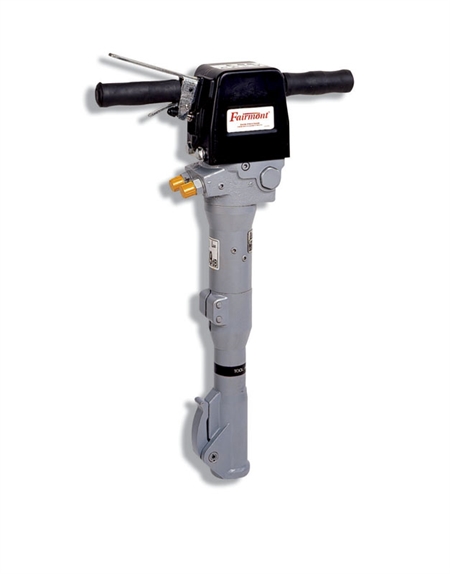

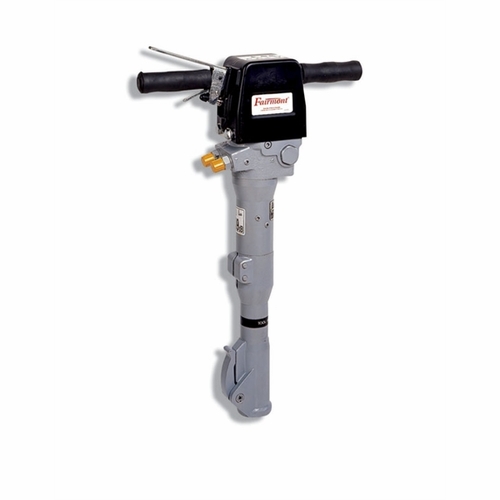

GREENLEE HPB45-2AVS BREAKER ASSY,45 LB 1X4-1/4 DMP HDL H2 / 50021982 / 783310021988
Available*
Item # 79999170
Model # 783310021988
$4,475.40
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
GREENLEE HPB45-2AVS BREAKER ASSY,45 LB 1X4-1/4 DMP HDL H2 / 50021982 / 783310021988 NEW
DESCRIPTION:
Great for breaking sidewalks and curbs or driving ground rod, and for other small demolition jobs Clean modular design with few protrusions to irritate operators' legs High blow energy provides maximum breaking power Integral rubber damper reduces chisel noise Low noise and vibration levels AVS tools have patented spring-dampened handles that reduce vibration transmitted to the operator by 80%-90% Two-step trigger Supplied with 12 IN (305 mm) steel braided whip hoses
SPECIFICATIONS:
Accessory : F020196K HTMA Female Coupler - 1/2 IN NPTF internal thread, F020197K HTMA Male Coupler - 1/2 IN NPTF internal thread Application : For Breaking Sidewalks And Curbs Or Driving Ground Rod, AndFor Other Small Demolition Jobs Blow Energy : 63.000 FT-LB (85 J) Blows Per Minute : 2160 BPM Handle Type : Cushioned/Spring-Dampened Hydraulic System : Open-Center Length : 26.500 IN (682.000 MM) Maximum Pressure : 2300 PSI (160 BAR) Oil Flow : 5 - 8 GPM (19 - 30 LPM) Operating Pressure : 1500 - 1800 PSI (105 - 125 BAR) Pressure And Return Ports : 1/2 IN BSP Shank Size : 1.000 IN Diameter X 4-1/4 IN Length Sound Power Level : LWA=109 DB Vibration Level : 11.400 M/S2/5.300 M/S2 Weight : 47.000 LB (21.300 KG) Whip Hoses : 1/2 IN NPTF X 12.000 IN (305.000 MM)
CAT #: HPB45-2AVS UPC #: H2 / 50021982 / 783310021988
