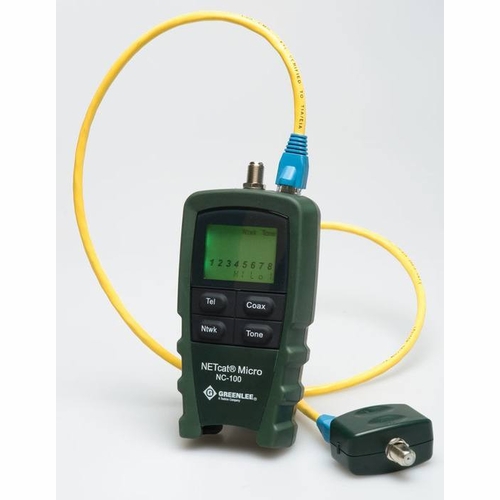

TEMPO NC-100 TESTER, VDV NETcat (POP) 52024541/783310236368
Available*
Item # 80007447
Model # NC-100
$135.00
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
LAN
Test Equipment
LAN- Network
Combination
Tempo Communications, Inc.
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

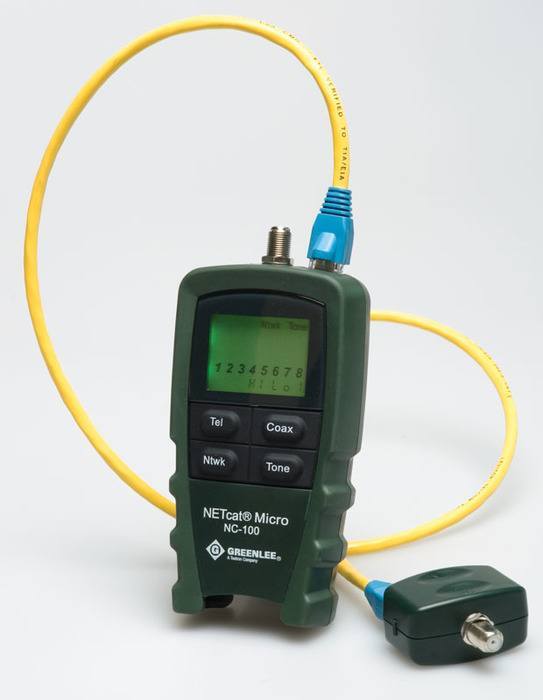

GREENLEE NC-100 TESTER, VDV NETcat (POP) 52024541/783310236368 NEW
DESCRIPTION: TESTER, VDV NETcat (POP)
Tests shielded twisted pair (STP), unshielded twisted pair (UTP) and coaxial cables TIA/EIA standard wiring pair verification Detects shorts, opens, reversed polarity, crossed and split pairs Generates three distinct, selectable digital tone patterns for cable tracing and troubleshooting Tracing modes can be adjusted for high performance LAN cables Complete set of connector types standard (telephone, LANand coax) Nested remote allows end-to-end testing of all wiring types Simple testing of LAN wiring and phone lines Detection of common wiring and connector errors Warning of hazardous voltages Checks for reversed telephone wires
SPECIFICATIONS:
Backlight : Green LED Battery : 9 V Alkaline Battery (PP3) Buttons : Four Momentary Contact Push Button Depth : 33.000 MM Display LCD : Icon And Seven Segment Type Frequency Rating : 577 HZ And 983 HZ Humidity : 0 To 95 PCT Non-Condensing Interface Connections : RJ45 Shielded Socket, RJ12 6-Way Socket, F-Type Threaded Female Coaxial Connectors Length : 150.000 MM Minimum Cable Length : 2.000 To 3.000 MR (5.000 To 10.000 FT) Pair Tracing Tones : Alternating Frequencies Of 577 HZ And 983 HZ Are Produced At Three User Selectable Rates Standard : TIA/EIA StorageOperatingTemperature : -10 To 60 DEG C0 - 50 DEG C Sub Brand : NETcat Type : Micro Digital Voice Data And Video Wiring Weight : 220.000 GM Including Remote Unit And Battery Width : 70.000 MM
WEIGHT: 0.97 LBS
CAT #: NC-100
UPC #: 52024541/783310236368
PRODUCTS > VDV Instruments > CABLE VERIFICATION > Twisted Pair > TESTER, VDV NETcat (POP)
DESCRIPTION: TESTER, VDV NETcat (POP)
Tests shielded twisted pair (STP), unshielded twisted pair (UTP) and coaxial cables TIA/EIA standard wiring pair verification Detects shorts, opens, reversed polarity, crossed and split pairs Generates three distinct, selectable digital tone patterns for cable tracing and troubleshooting Tracing modes can be adjusted for high performance LAN cables Complete set of connector types standard (telephone, LANand coax) Nested remote allows end-to-end testing of all wiring types Simple testing of LAN wiring and phone lines Detection of common wiring and connector errors Warning of hazardous voltages Checks for reversed telephone wires
SPECIFICATIONS:
Backlight : Green LED Battery : 9 V Alkaline Battery (PP3) Buttons : Four Momentary Contact Push Button Depth : 33.000 MM Display LCD : Icon And Seven Segment Type Frequency Rating : 577 HZ And 983 HZ Humidity : 0 To 95 PCT Non-Condensing Interface Connections : RJ45 Shielded Socket, RJ12 6-Way Socket, F-Type Threaded Female Coaxial Connectors Length : 150.000 MM Minimum Cable Length : 2.000 To 3.000 MR (5.000 To 10.000 FT) Pair Tracing Tones : Alternating Frequencies Of 577 HZ And 983 HZ Are Produced At Three User Selectable Rates Standard : TIA/EIA StorageOperatingTemperature : -10 To 60 DEG C0 - 50 DEG C Sub Brand : NETcat Type : Micro Digital Voice Data And Video Wiring Weight : 220.000 GM Including Remote Unit And Battery Width : 70.000 MM
WEIGHT: 0.97 LBS
CAT #: NC-100
UPC #: 52024541/783310236368
PRODUCTS > VDV Instruments > CABLE VERIFICATION > Twisted Pair > TESTER, VDV NETcat (POP)
